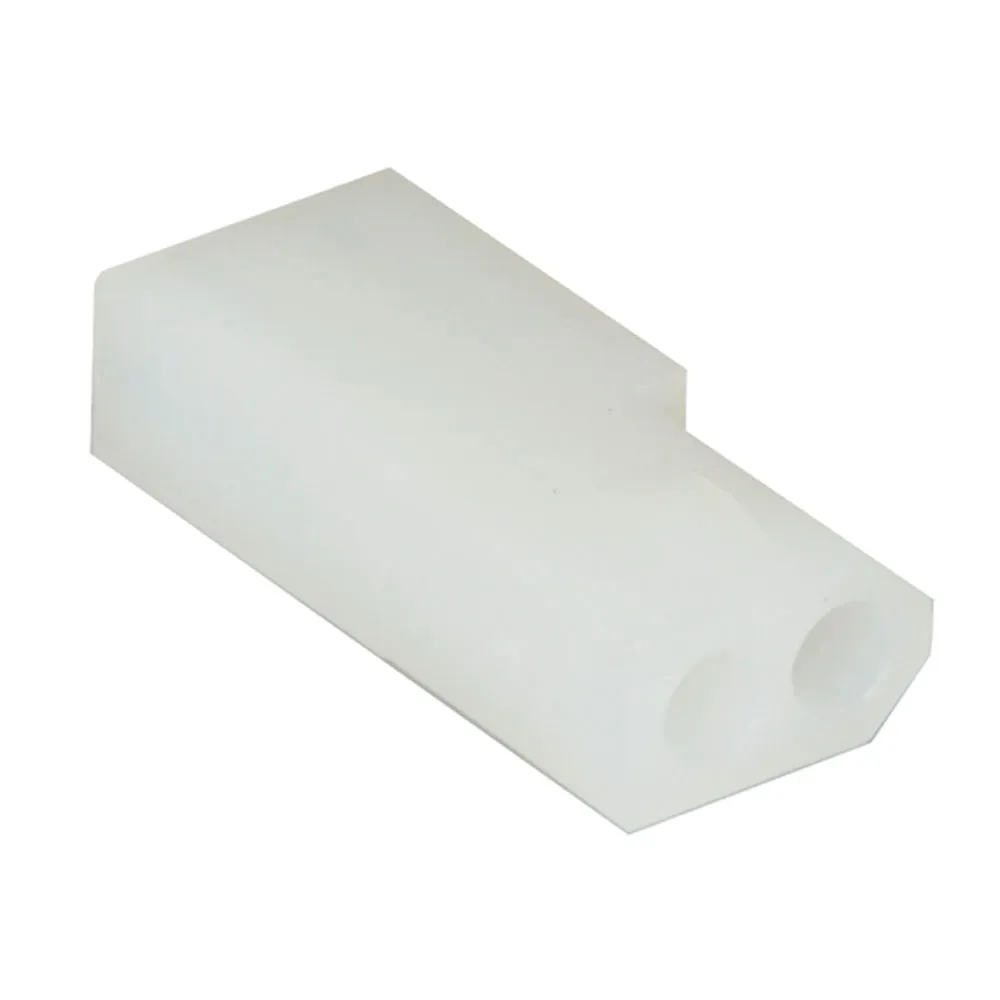

0.062" (1.57mm) Power Connector Receptacle

Features:

  • Diameter size: 0.062 inches (1.57mm)
  • Pitch: 0.145 inches (3.68mm)
  • Current rating: 5.0A
  • Number of circuits: 2
  • Plug type: Free hanging
  • Pattern: In-line
  • Passive friction lock
  • Housing material: Nylon; UL94V-2
  • Temperature range: -40°C to +105°C
  • Contact retention to housing: 20 lbs. minimum

    Compatible Mating Information:
  • Crimp pin Male: 224581
  • Crimp pin Female: 224573
  • Connector Plug: 224485
  • Crimp tool: 308030

    • Product Identification

    Product Type:0.062" (1.57mm) Housing
    Additional Feature:Locking Ramp
    Manufacturer Series:1625

    Dimensions & Appearance

    Mounting Type:Free Hanging (In-Line)
    Body/Shell Style:Receptacle

    Features

    Number of Rows:1
    Empty Shell:Yes
    Number of Contacts:2
    Shell Material:Nylon
    Contact Gender:Male or Female
    UL Flammability Code:UL94V-2
    Termination:Crimp
    ,
