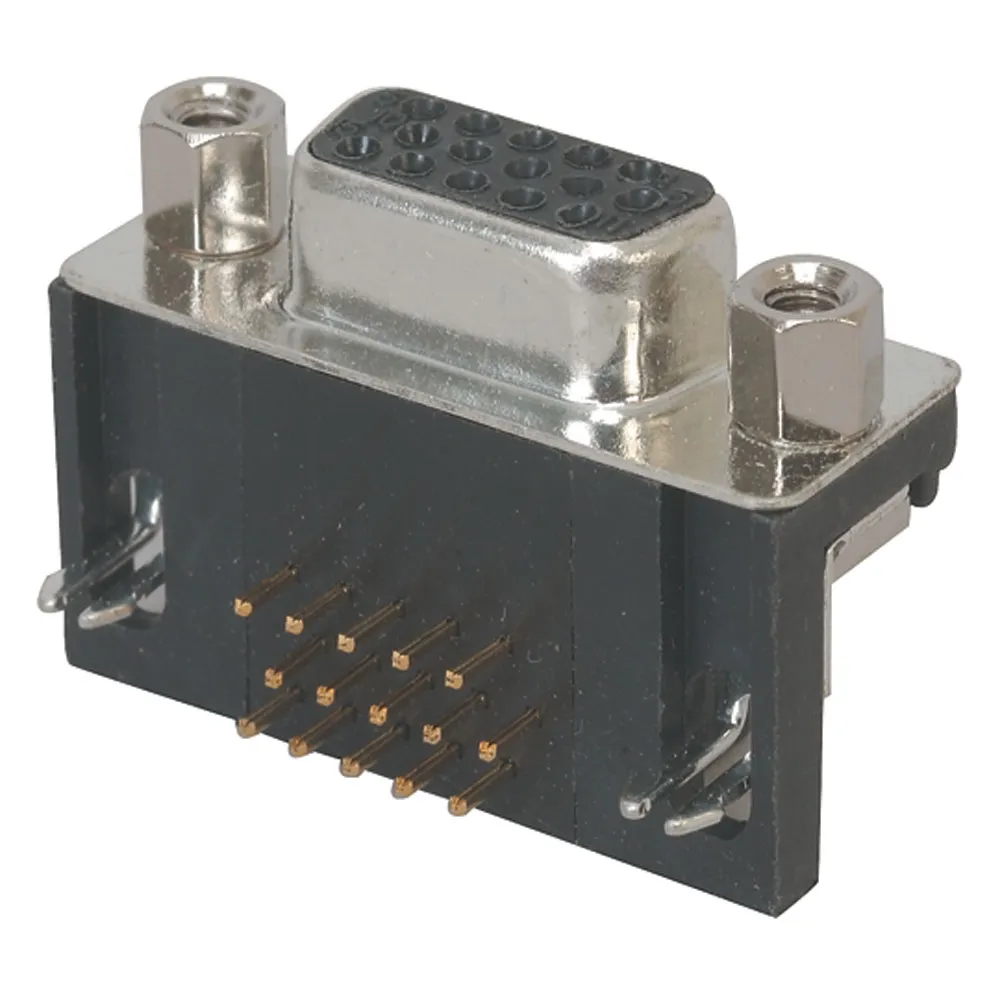

15-contact Right Angle D-Sub PCB Connector

Features

  • 0.318" Setback
  • Maximum Current: 3A
  • Metal Housing

    • Product Identification

    Product Type:PCB
    Manufacturer Series:1010

    Dimensions & Appearance

    Depth:22.23 mm
    Height:12.6 mm
    Length:16.3 mm
    Mounting:Jack Screw
    Body Orientation:Right Angle

    Operating conditions

    Maximum Operating Temperature:105°C
    Minimum Operating Temperature:-55°C

    Features

    Number of Rows:3
    Shell Material:Metal
    Contact Material:Brass, Phosphor Bronze
    Number of Contacts:15
    Gender:Female
    Termination:0.318" Right Angle PCB (HD)
    Contact Plating:Phosphor Bronze
    Housing Material:Polybutylene Terephthalate
    Pitch:2.29 mm
    Current Rating:3 A
    ,
