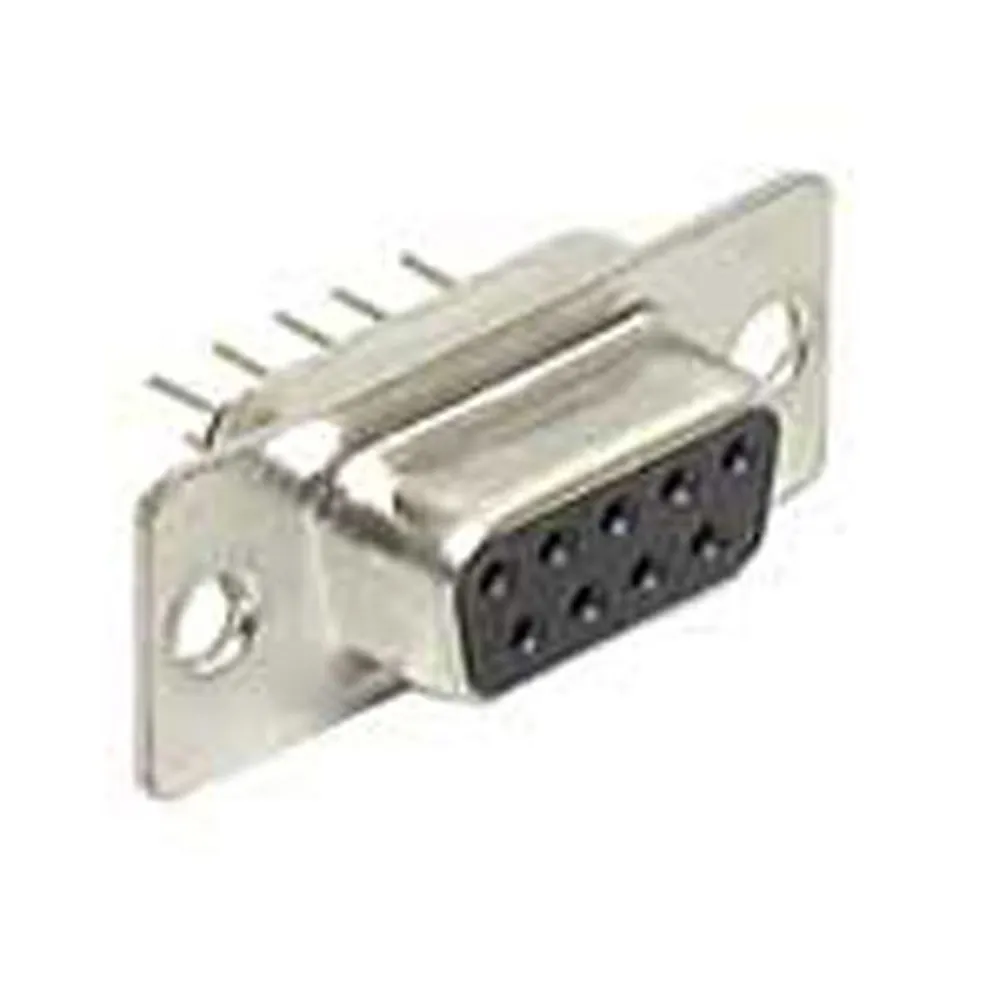

D-Sub Connector

Specifications

  • Metal Straight PCB Mount

    • Product Identification

    Manufacturer Series:1003
    Product Type:PCB

    Dimensions & Appearance

    Body Orientation:Straight
    Mounting:Unthreaded
    Depth:12.55 mm
    Length:30.81 mm
    Body Plating:Tin Over Nickel

    Operating conditions

    Maximum Operating Temperature:105°C
    Minimum Operating Temperature:-55°C

    Features

    Number of Rows:2
    Shell Material:Metal
    Contact Material:Brass, Phosphor Bronze
    Contact Plating:Brass
    Number of Contacts:9
    Gender:Female
    Housing Material:Steel
    Pitch:2.77 mm
    Voltage Rating:250 VAC
    Termination:Straight PCB
    Current Rating:5 A
    ,
