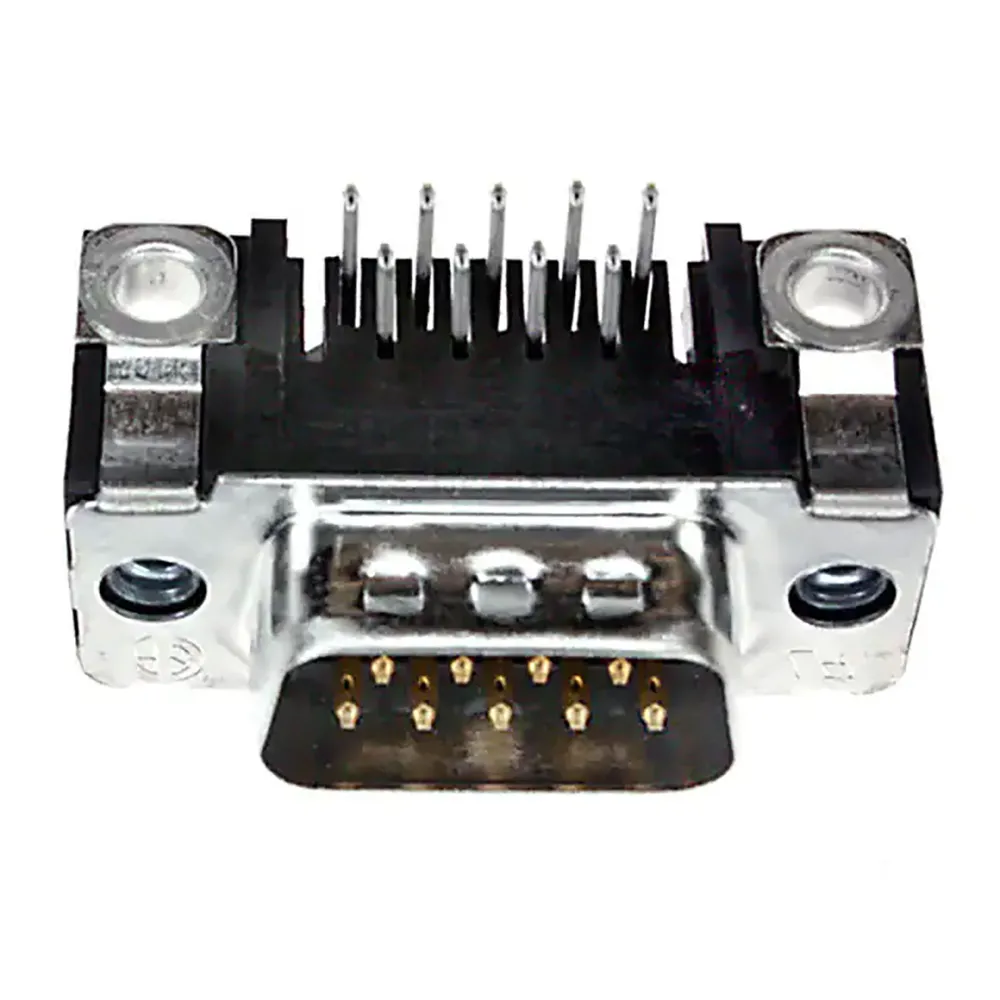

Connector D-Subminiature PIN 9 Position 2.74 mm Solder Right Angle Thru-Hole 9 Terminal 1 Port
Product Identification
Manufacturer Series:5747250
Product Type:D-Subminiature
Dimensions & Appearance
Body Orientation:Right Angle
Mounting:Through Hole
Depth:18.62 mm
Height:12.55 mm
Length:30.81 mm
Body Plating:Tin Over Copper
Features
Number of Rows:2
Contact Material:Brass
Number of Contacts:9
Contact Plating:Gold Over Nickel|Gold Over Palladium Nickel Over Nickel
Housing Material:Nylon, Polyester
Pitch:2.74 mm
Gender:PL
Termination:Solder
