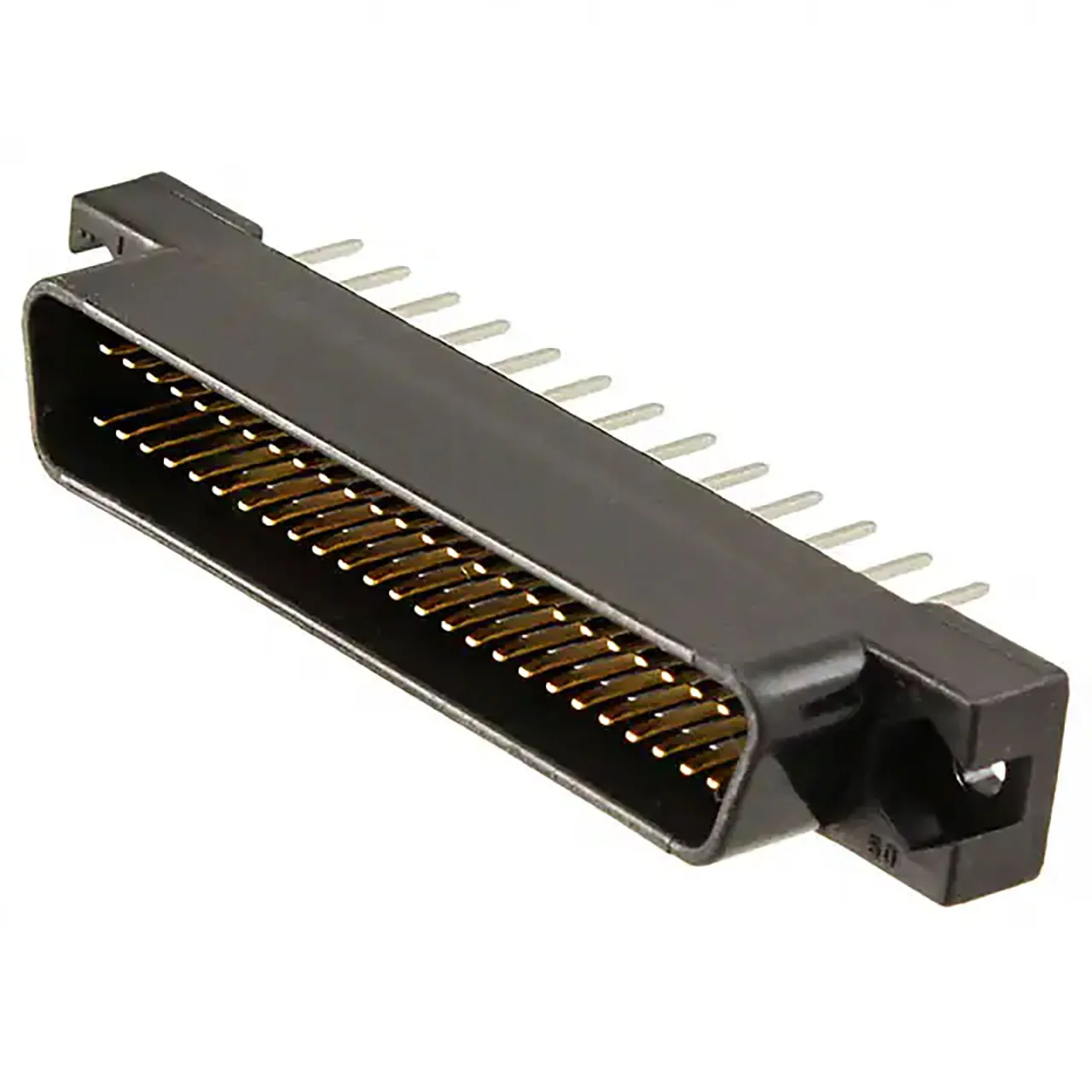

Connector D-Subminiature PIN 50 Position 2.54 mm Solder Straight Thru-Hole 50 Terminal 1 Port

Jameco Part #:

Manufacturer #:

Product Price:

$7.660

In Stock: 0

Quantity	Unit Price	You Save	Discount
10+	$7.660	-	-
50+	$7.330	0.33	4.31%
100+	$7.020	0.64	8.36%
200+	$6.720	0.94	12.27%
1232+	$5.970	1.69	22.06%

Connector D-Subminiature PIN 50 Position 2.54 mm Solder Straight Thru-Hole 50 Terminal 1 Port

Product Identification

Manufacturer Series:5173280

Product Type:D-Subminiature

Body Orientation:Straight

Mounting:Through Hole

Depth:7.3 mm

Height:9.3 mm

Length:44.45 mm

Maximum Operating Temperature:105°C

Minimum Operating Temperature:-55°C

Number of Rows:2

Contact Plating:Gold Over Nickel

Contact Material:Phosphor Bronze

Number of Contacts:50

Housing Material:Thermoplastic

Pitch:2.5 mm

Gender:PL

Current Rating:1 A

Voltage Rating:100 VDC

Termination:Solder
