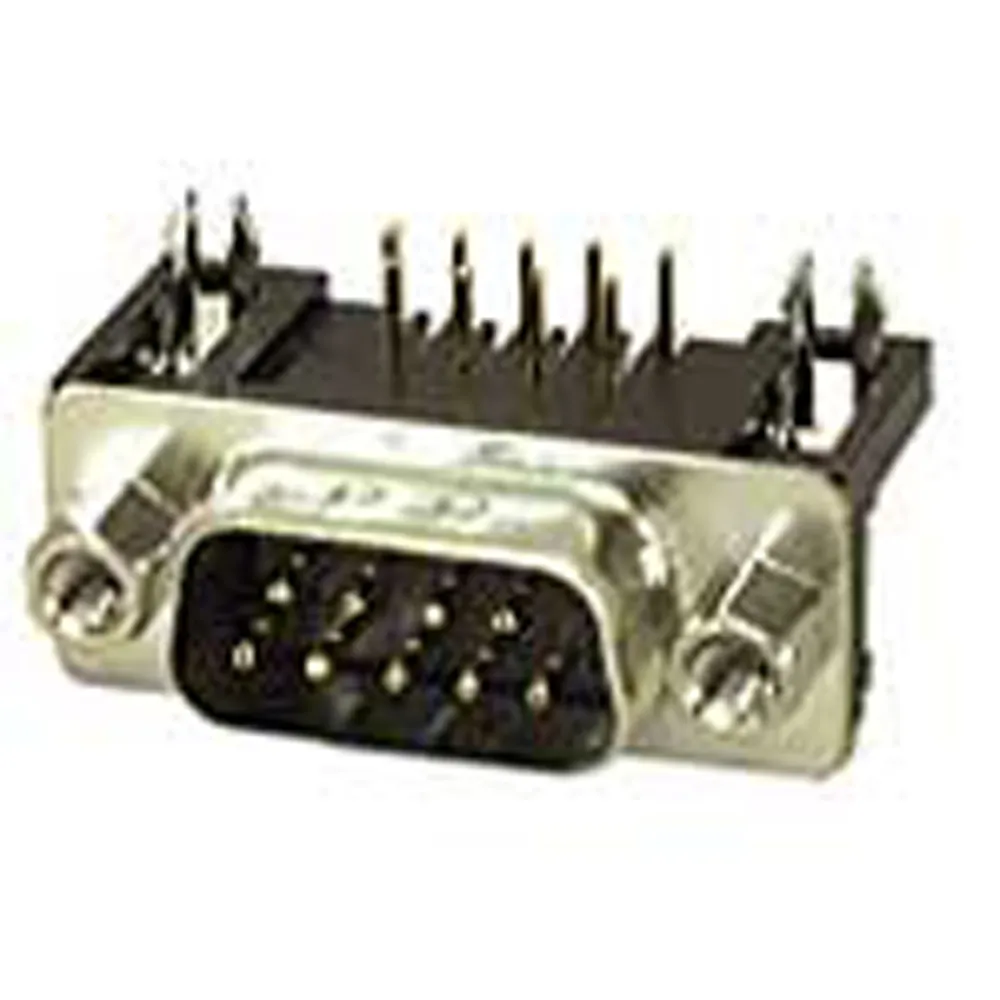

DB9 9 Position Male D-Sub Connector
Specifications
- 0.318" (8.08mm) footprint D-sub socket with forked boardlocks and #4-40 inserts
- Phosphor bronze contact
- 9 male contacts
- Common names: DB-9, DE-9
- Right angle PCB mount
Product Identification
Manufacturer Series:1008
Product Type:PCB
Dimensions & Appearance
Body Orientation:Right Angle
Mounting:Jack Screw
Depth:18.4 mm
Height:12.5 mm
Length:30.81 mm
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-55°C
Features
Number of Rows:2
Contact Material:Brass
Shell Material:Metal
Contact Plating:Brass
Number of Contacts:9
Termination:0.318" Right Angle PCB
Housing Material:Polybutylene Terephthalate
Gender:Male
Pitch:2.77 mm
Current Rating:5 A
