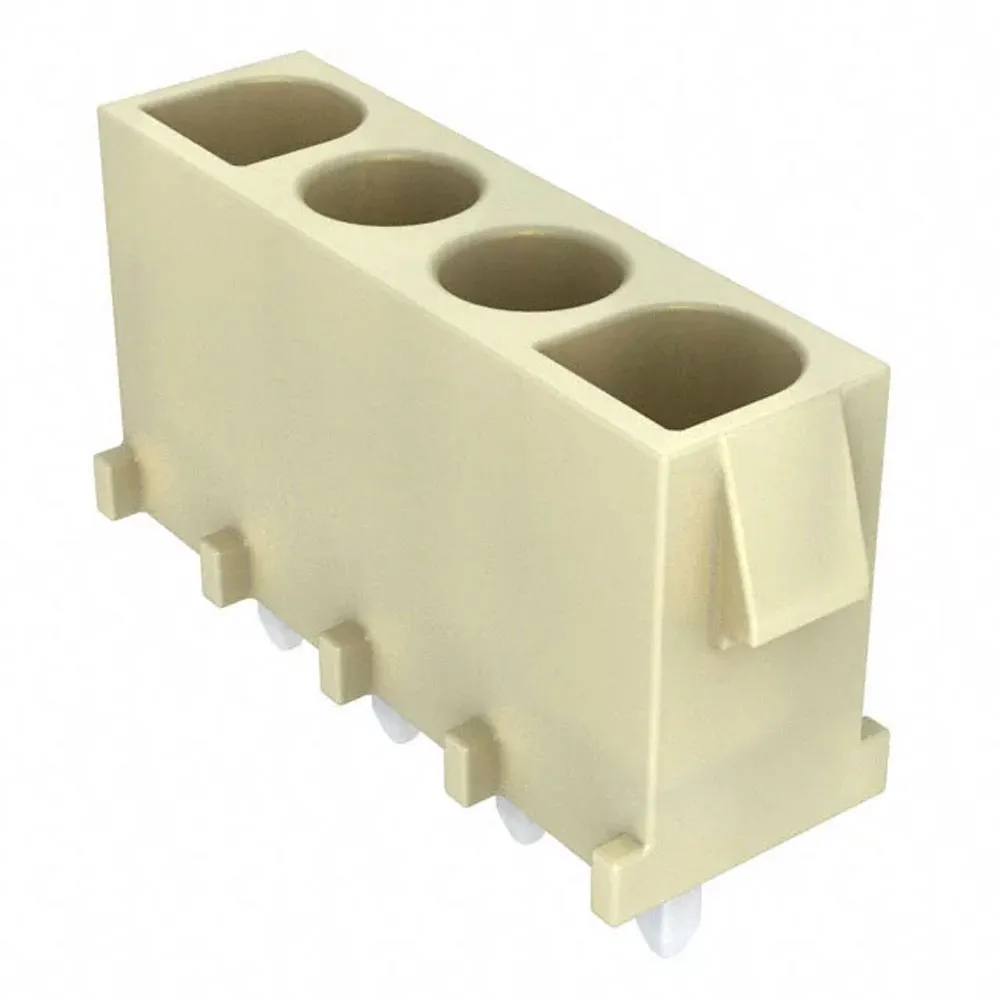

6.35mm (.250) Pitch MLX Power Connector Receptacle, 2.13mm (.084") Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin/Lead (Sn/Pb), White, 4 Circuits

  • Circuits / Positions: 4
  • Density: 6.35mm
  • Rows: 1
  • Product Name: MLX
  • Type: Straight
  • Mount: PCB (Through Hole)
  • PCB Layout: Single Row Inline
  • Polarized to PCB: Yes
  • Current-max: 13.5A
  • Voltage-max: 600V
  • Contact Resistance: 3.5 mΩ max.
  • Insulation Resistance: 100 MΩ min.
  • Housing Material: 6/6 Nylon
  • Color: White
  • Contact: Phosphor Bronze
  • Plating Contact: Tin/Lead
  • Plating Tail: Tin/Lead

,
