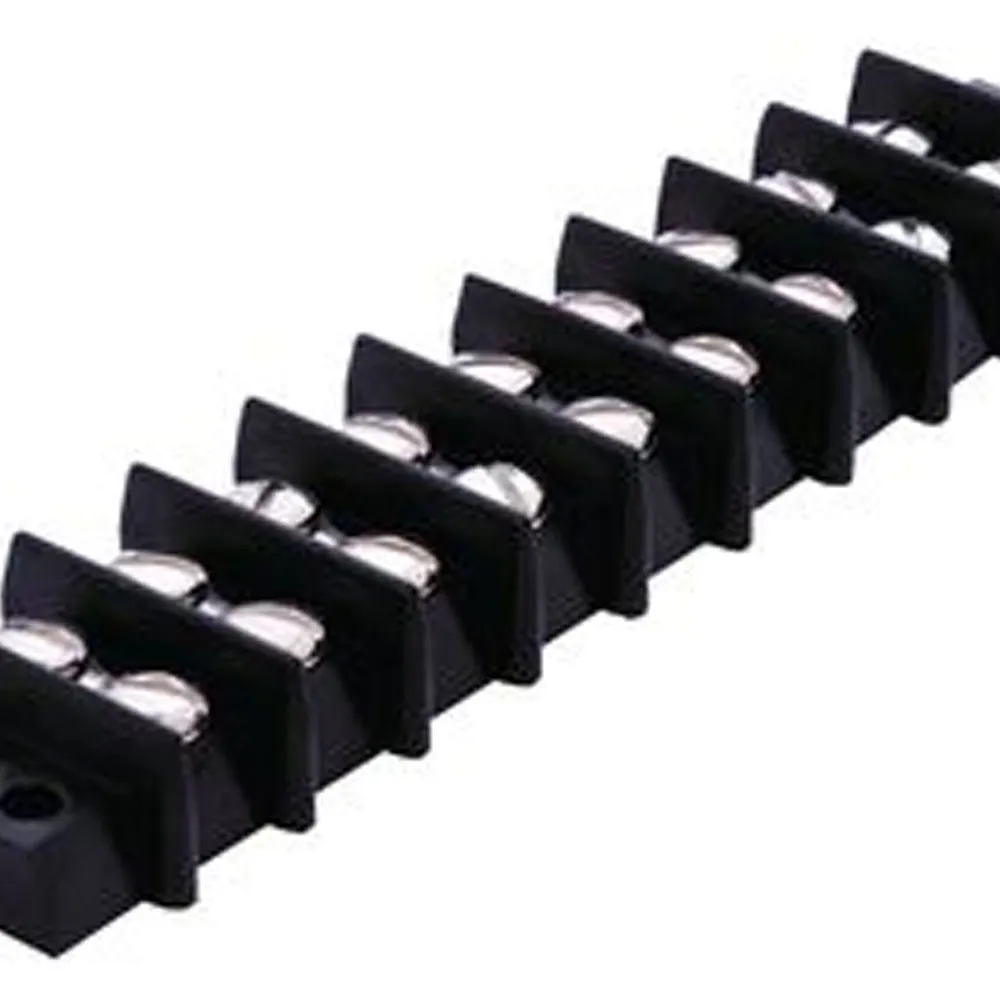

8-Contact 9.53mm Double Row Barrier Terminal Block
Features
- Positions: 8
- Pitch: 0.375"
- Screw size: Slotted 5-40 x 3/16" BH
- Open bottom
- Wire Size: 16AWG
- Current: 15A
- Voltage: 250V
Product Identification
Product Type:Dual Row Barrier Strip
Manufacturer Series:140
Dimensions & Appearance
Depth:22.23 mm
Length:92.88 mm
Mounting:Panel Mount
Body Orientation:Straight
Operating conditions
Maximum Operating Temperature:148°C
Minimum Operating Temperature:-48°C
Features
Number of Rows:2
Housing Color:Black
Number of Positions:8
Bottom Termination:Open Bottom w/ Flange
Top Termination:Screw, 6-32
Contact Plating:Nickel
Housing Material:PheNolic
Pitch:0.375 in., 9.53 mm
Contact Material:Steel
Wire Gauge (AWG):16
Voltage Rating:250 VAC
Current Rating:15 A
