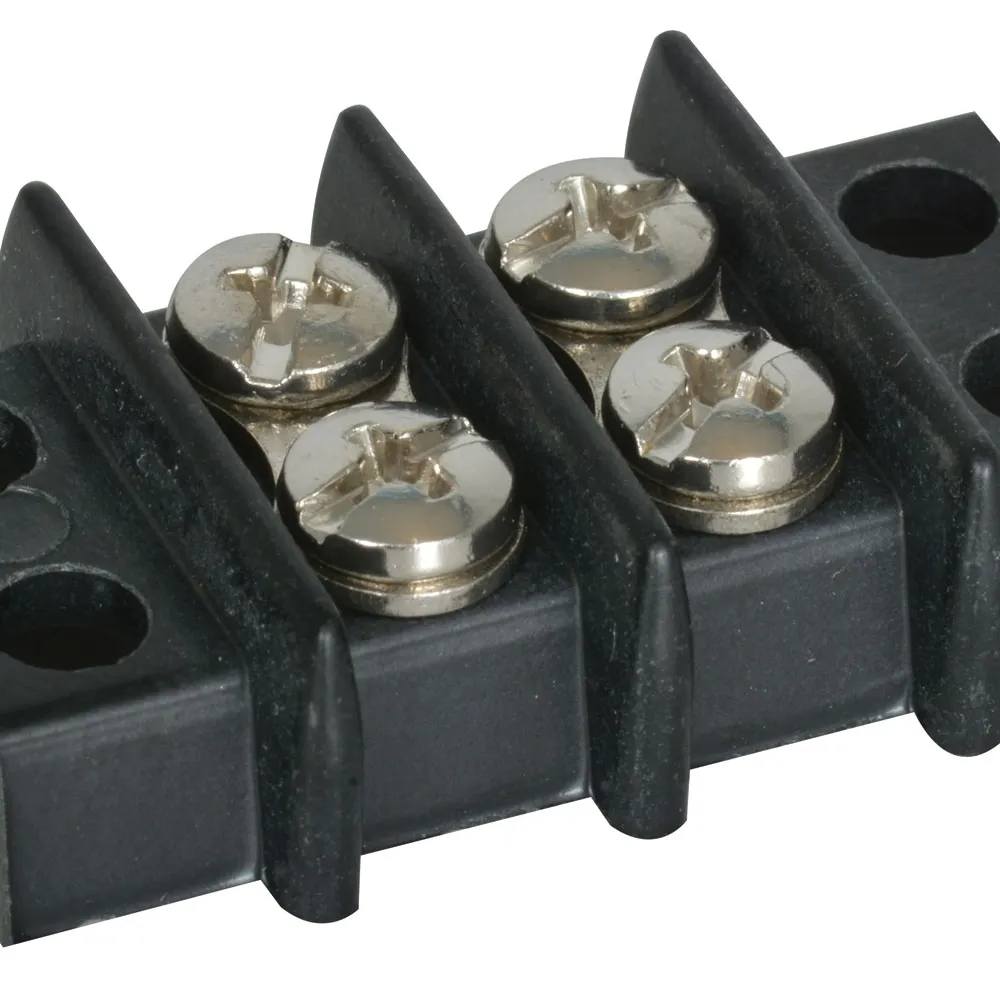

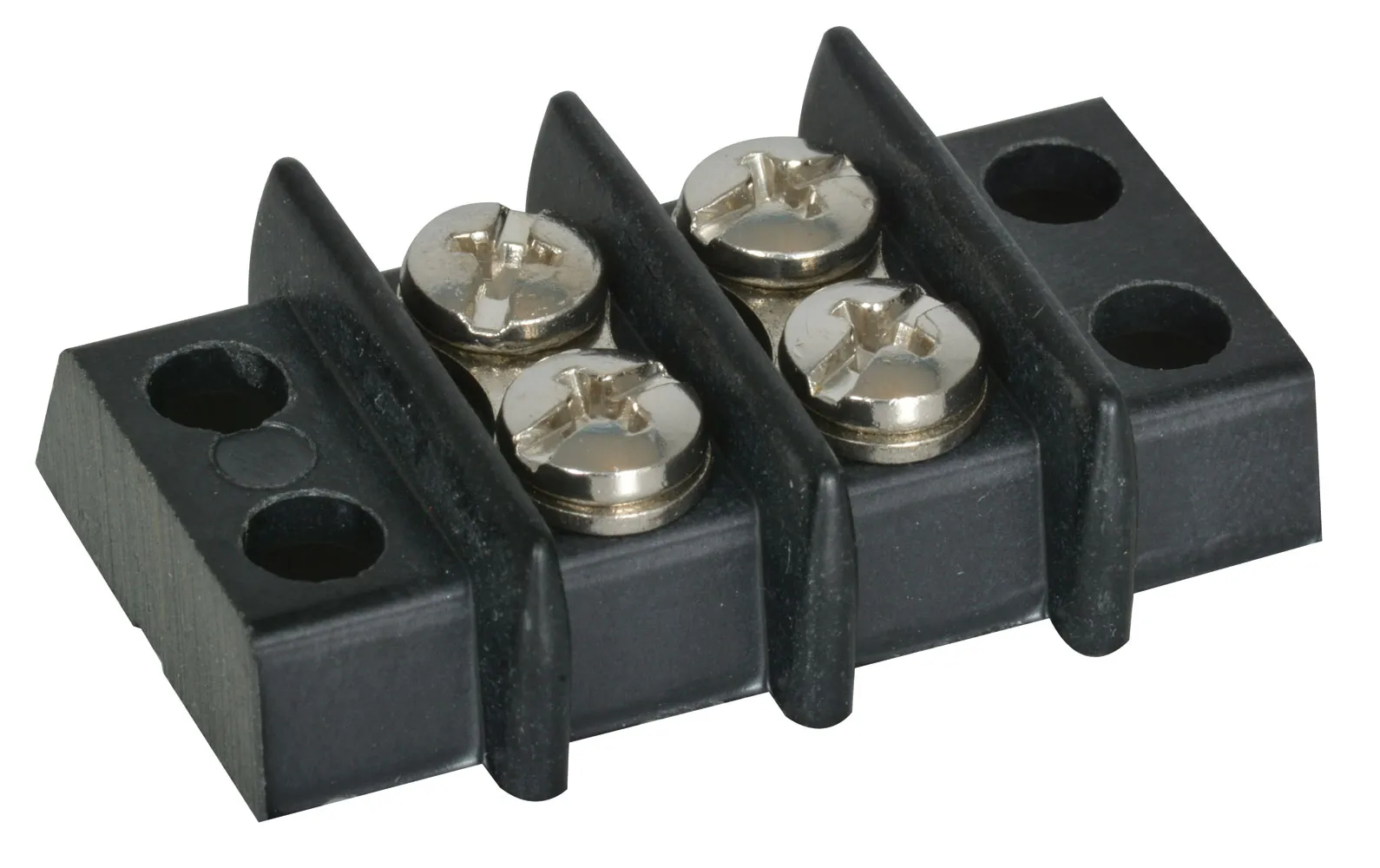

Connector Barrier Strip 2 Position 9.53mm Pitch Straight Panel Mount 15 Amp
Specifications
- Positions: 2
- Pitch: 0.375"
- Screw size: Slotted 5-40 x 3/16" BH
- Open bottom
- Voltage rating: 250VAC RMS max.
- Current rating: 15A max.
- Power: 3750W max.
- Wire size: 16 AWG max.
- Torque: 9 lb-in max.
- Spade tongue terminal stud size: #4, #5, or #6
