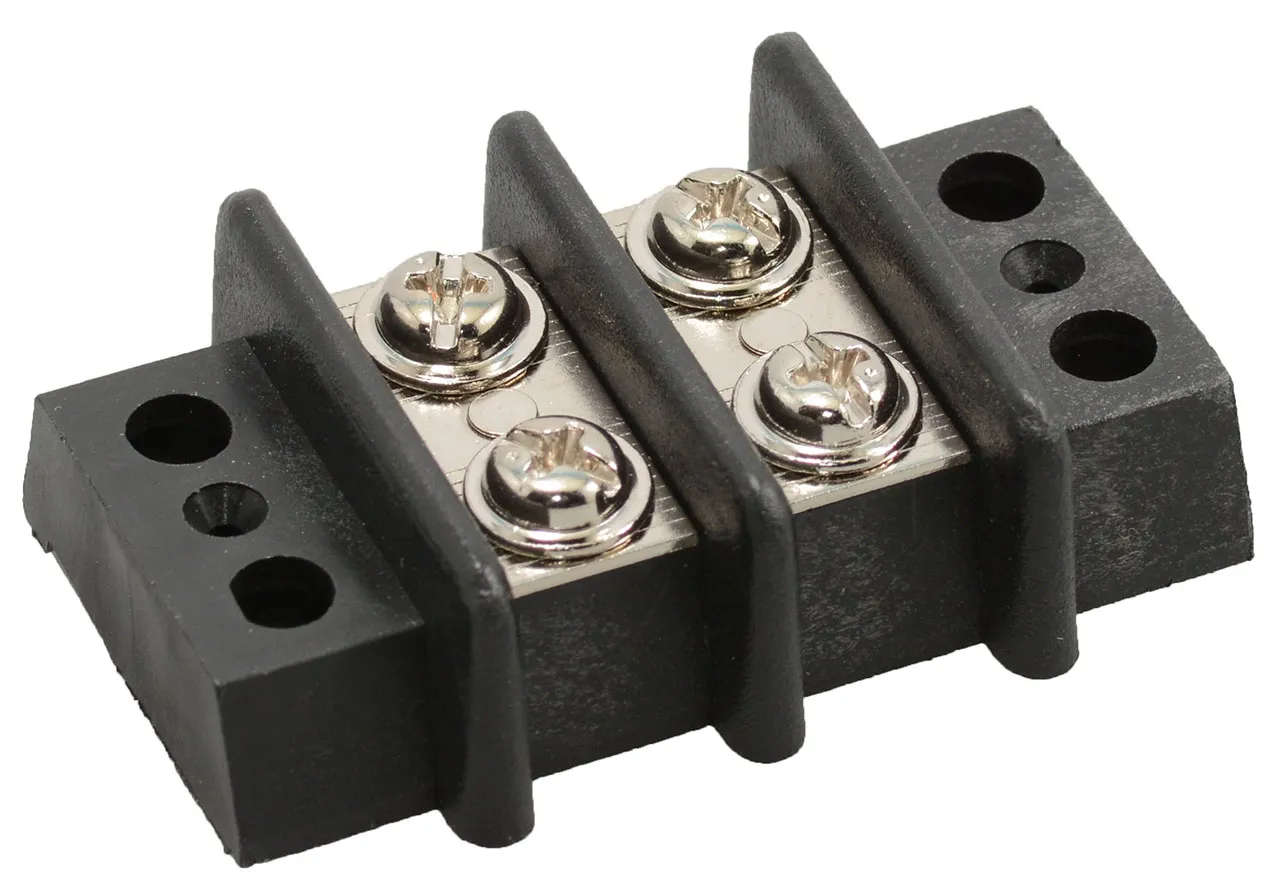

Connector Barrier Strip 2 Position 14mm (0.563") Pitch Screw Straight Panel Mount 30A

Specifications

  • Number of Positions: 2
  • Pitch: 0.563" (14 mm)
  • Working temperature: -40°C to +105°C
  • Insulation withstand voltage: 2000VAC at 1 minute
  • Insulation resistance: 500MΩ or more at 500VDC
  • Rating: 600 VAC 30A
  • Wire range: 12 to 22 AWG
  • Max. torque value: 10 kg-cm
  • Space between terminals: 14 mm
  • Screw: M4
  • Spade tongue terminal stud size: #4, #5, or #6
  • Block height: 17 mm
  • Block width: 34 mm
  • Block length: 52 mm

Product Identification

Product Type:Dual Row Barrier Strip
Manufacturer Series:GGE-30

Dimensions & Appearance

Depth:34 mm
Height:17 mm
Length:52 mm
Mounting:Chassis, Panel
Body Orientation:Straight

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Features

Number of Positions:2
Number of Rows:2
Bottom Termination:Closed Bottom w/ Flange
Housing Color:Black
Contact Material:Brass
Housing Material:Nylon PA 66
Top Termination:Screw, M4
Contact Plating:Nickel
Wire Gauge (AWG):12-22
Pitch:0.563 in., 14.3 mm
Voltage Rating:600 VAC
Current Rating:30 A
,
