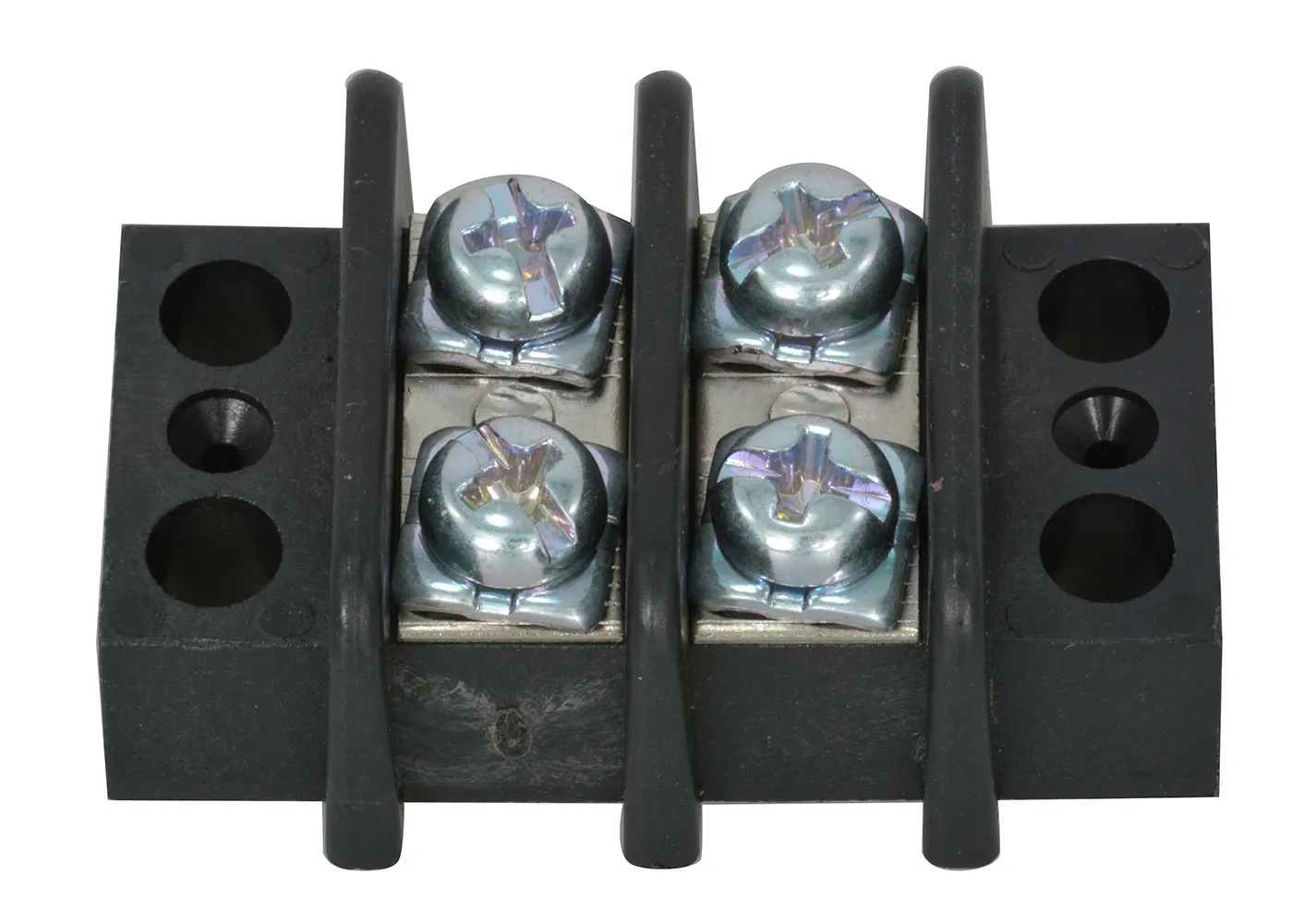

Connector Barrier Strip 2 Position 10.9mm Pitch Screw Straight Panel Mount 20 Amp
Specifications
- Working temperature: -40°C to +105°C
- Insulation withstand voltage: 2000VAC at 1 minute
- Insulation resistance: 500MΩ or more at 500VDC
- Rating: 600V 20A
- Wire range: 12 to 22 AWG
- Max. torque value: 10 kg-cm
- Space between terminals: 10.9 mm
- Screw: M3.5
- Spade tongue terminal stud size: #4, #5, or #6
- Block height: 13.2 mm
- Block width: 22 mm
- Block length: 41.7 mm
Product Identification
Product Type:Dual Row Barrier Strip
Manufacturer Series:GGE-20
Dimensions & Appearance
Depth:22 mm
Height:13.20 mm
Length:41.70 mm
Mounting:Chassis, Panel
Body Orientation:Straight
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C
Features
Number of Positions:2
Number of Rows:2
Bottom Termination:Closed Bottom w/ Flange
Housing Color:Black
Contact Material:Brass
Top Termination:Screw, M3.5
Housing Material:Nylon PA 66
Contact Plating:Nickel
Pitch:0.433 in., 11 mm
Wire Gauge (AWG):12-22
Voltage Rating:600 VAC
Current Rating:20 A
