INTERCONNECTION DEVICE
Product Identification
Additional Feature:Accepts 0.166" (4.2mm) Plug, Bag of 10

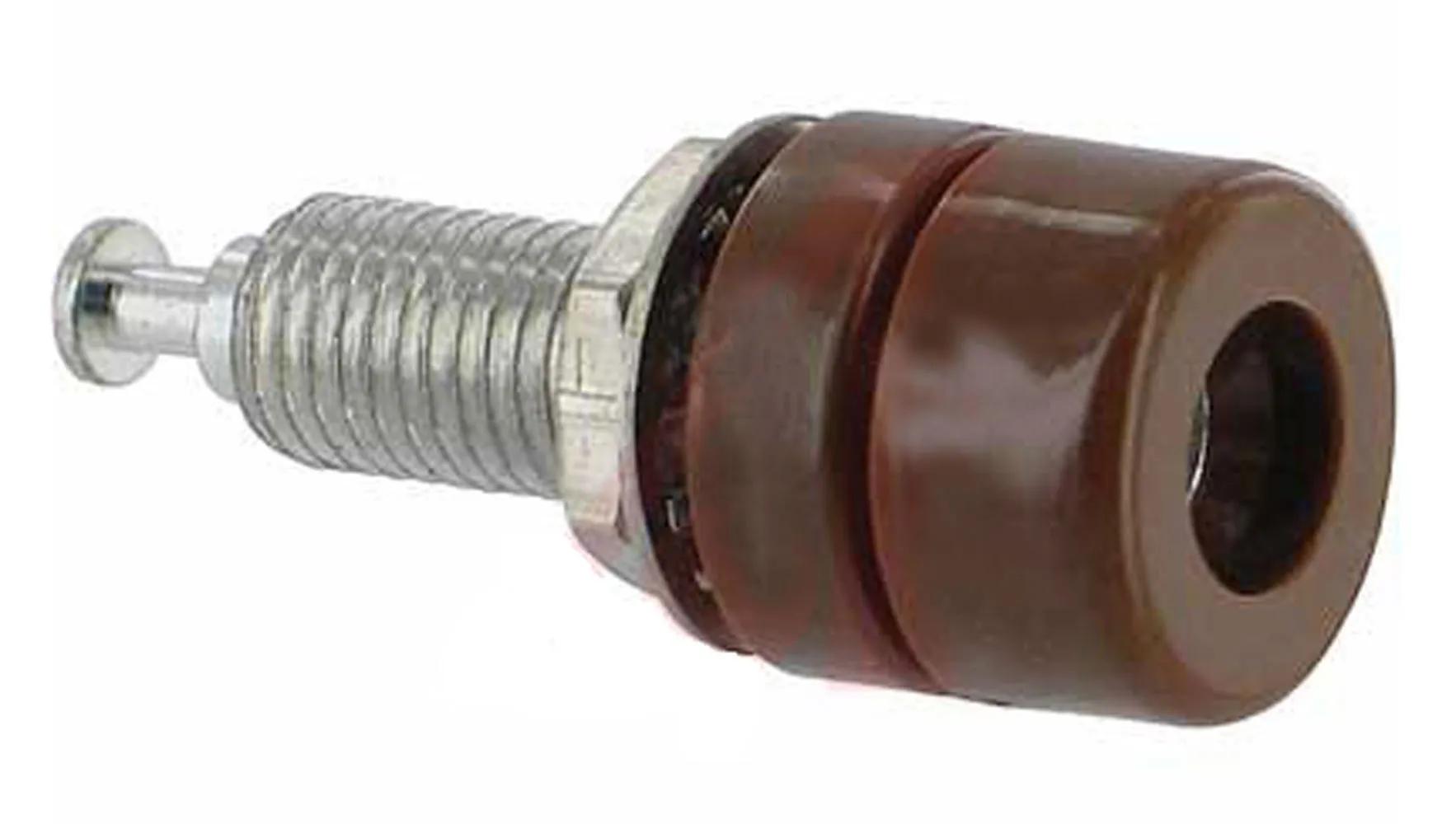

Product Type:Banana Jack
Dimensions & Appearance
Body Material:Polycarbonate (PC)
Mounting Type:Panel Mount
Color:Brown
Length:1.220 in.
Features
Contact Material:Brass
Insulation:Mating End
Insulation Material:Polycarbonate (PC)
Gender:Female
Contact Plating:Nickel
Wire Gauge (AWG):N/A
Termination:Turret
Voltage Rating:2500 Vrms
Current Rating:15 A
