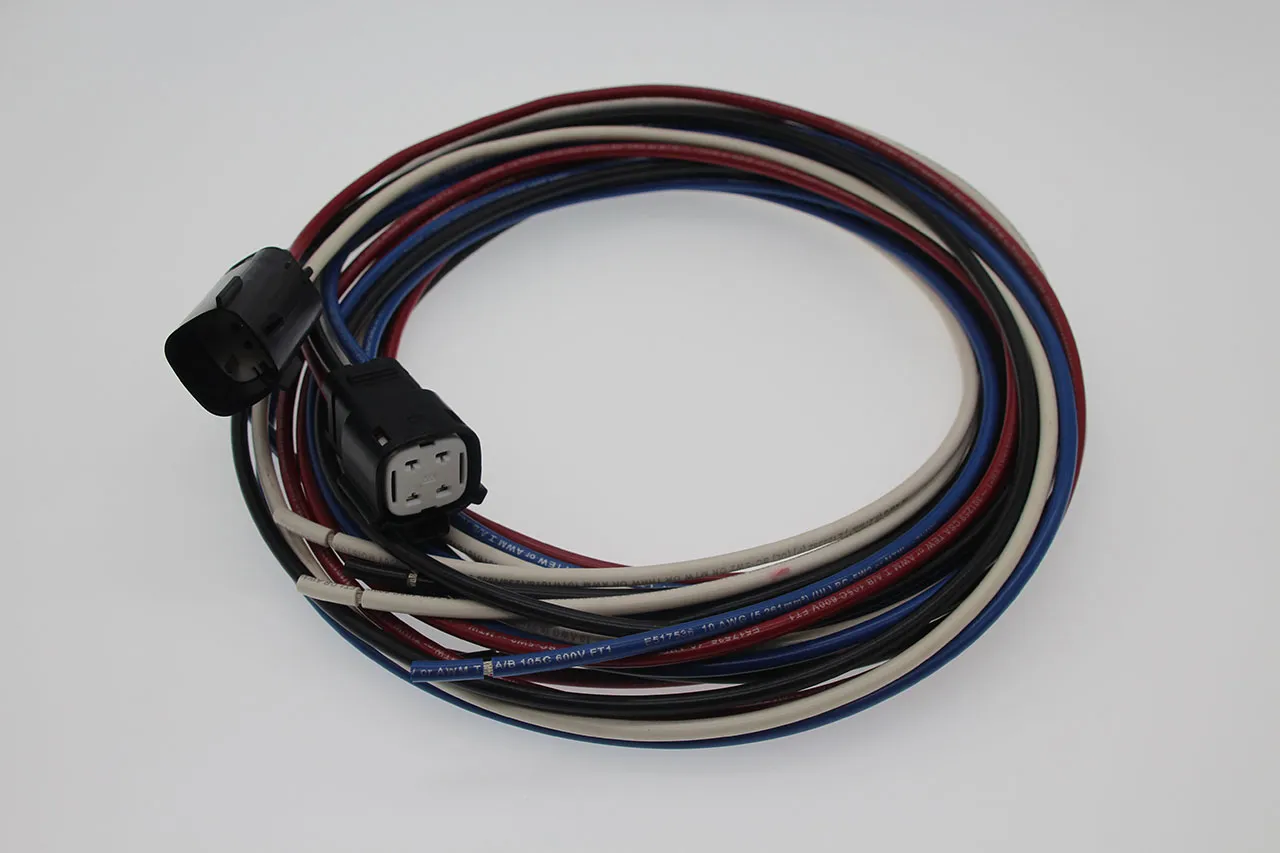

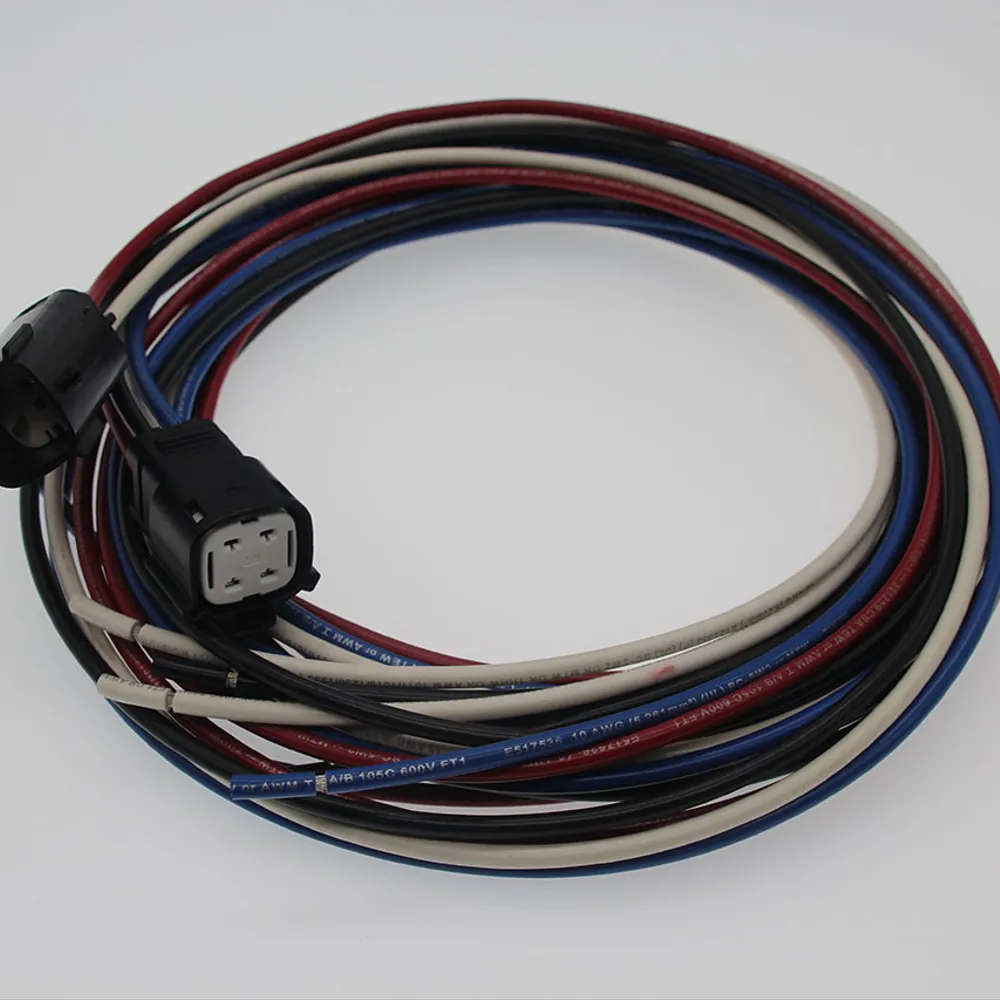

Connector Assembly Molex MX150L Weatherproof 4 Circuit 600 Volt 25A UL1015 8 AWG Wire 72"

Features

Molex MX150L High Power Sealed Connector System

Connector Specification:
  • Molex MX150L Series
  • Circuit count = 4
  • Color = Black
  • Material = SPS Glass-Filled crystalline Polymer
  • Seal Rating = IP67
  • Assembly #: WS-04-7272
  • Connector 1: 19433-0002
  • Connector 2: 19432-0002
Wire Specifications:
  • 8 AWG
  • UL1015
  • 600 VAC, 125 Degrees C
  • Stranded, Bare Copper
  • Wire Length = 72" both ends
  • Free ends are stripped 0.6" with slugs left on to protect wire strands
Contacts:
  • Tin plated contacts
  • Male contacts in Plug
  • Female contacts in Receptacle
Ratings:
  • 600VAC, 25 Amp MAX *
  • Max Temp 125 Deg F
* Total MAX current will be dependent on the total wire length and gauge of wire used in the entire circuit. As wire length and wire gauge decrease, current capacity will decrease. Total wire length is the distance that the wire will travel from the source to the load (through the connector kit) plus the length of the return lines.

Overview

The High Power MX150L sealed connector system is designed to meet the need for a rugged, environmentally sealed connector system supporting both low-level signal circuits as well as power circuits. Ideal for harsh environments, marine, off-road, racing and engine compartment applications. Connectors utilize silicone-based seals to protect internal contacts. Easy to mate with latching audible and tactile click lock system. Disconnection is only possible by depressing the protected release tab and pulling the connectors apart. This 8AWG connector system is available in 2 and 4 circuit configurations. Wired for AC/DC applications up to 600 volts with 8AWG UL1015 wire. Wire is multicolored for easy installation. (Not recommended for Automotive use. For 12v automotive, use WA or WB Series).

Wire color configuration by connector terminal location: (Same for both connectors):

  • 1 Red
  • 2 White
  • 3 Black
  • 4 Blue

,
