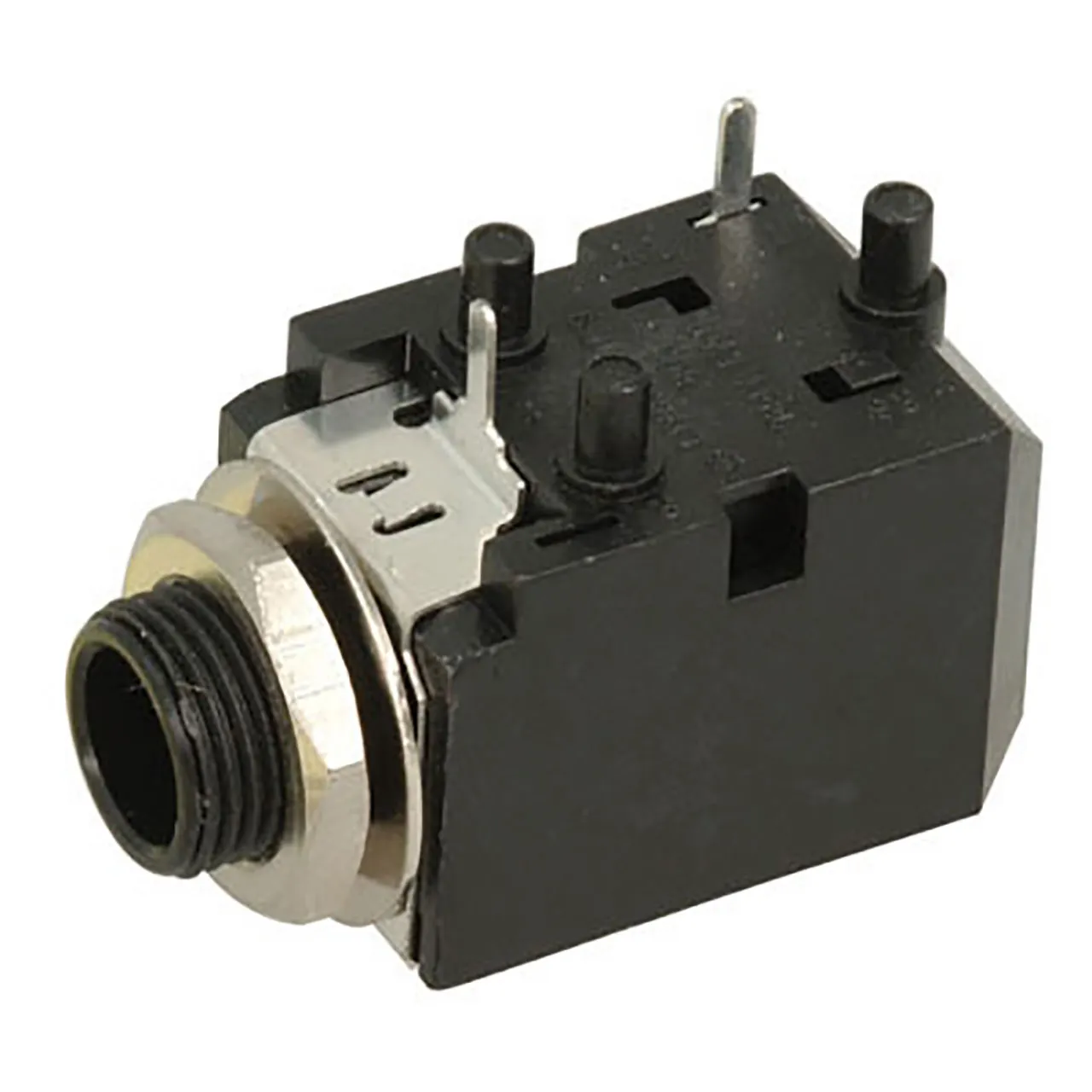

CONN,AUDIO,1/4",JACK,MONO,2 PIN,THRU HOLE,RA,SOLDERABLE
Product Identification
Product Type:1/4", Mono
Dimensions & Appearance
Color:Black
Dimensions:24.8L x 15.6W x 16.1H (mm)
Mounting:Through Hole
Body Orientation:Right Angle
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:65°C
Features
Number of Contacts:2
Contact Material:Copper Alloy
Termination Method:Solder
Contact Plating:Silver
Gender:Jack
Housing Material:Thermoplastic
Voltage Rating:25 VDC
Current Rating:1 A
