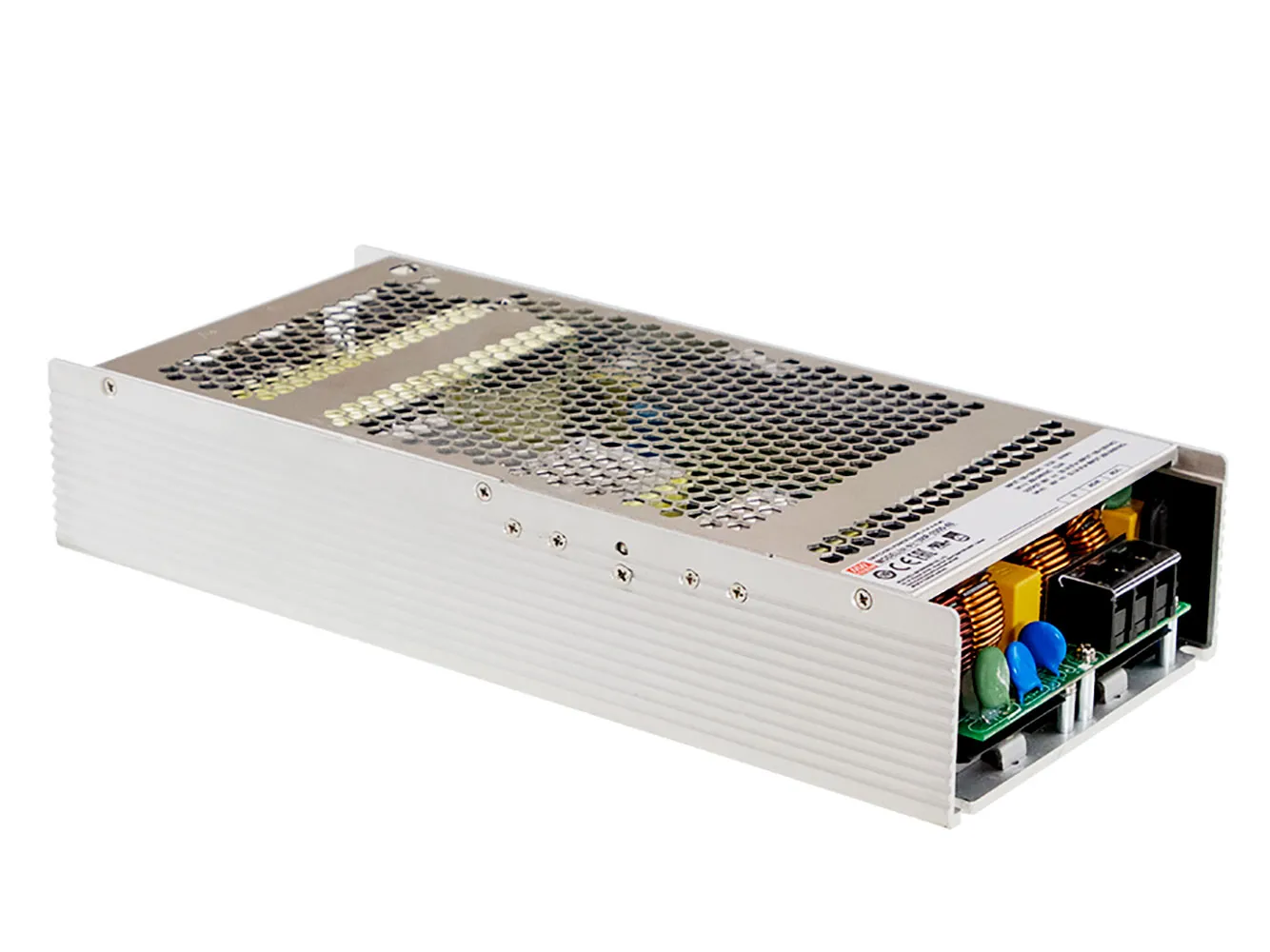

Conduction Cooling AC-DC Switching Enclosed Power Supply with PFC 48V 52.1A 2500W
Output: 48 Volts DC @ 52.1 AmpsFind out more about MEAN WELL Mini/Micro LED display power solutions and the low-profile, miniaturized conduction cooling power supply family.
Features
- Slim and low profile (60 mm)
- Fanless and conduction-cooled design
- Built-in active PFC function
- -30 to +70°C
- Output voltage and constant current level programmable
- Protections: Short circuit, overload, over voltage, over temperature
- Built-in remote ON-OFF control
- DC OK active signal
- Operating altitude up to 5000 meters
- LED indicator for power ON
- 5 year warranty
Specifications
- Output Voltage: 48 VDC
- Output Current: 52.1 A
- Output Power: 2500.8 W
- Input Voltage: 90 to 264 VAC @ 47 to 63 Hz
- Efficiency: 96%
- Output Connection: Screw Terminal
- Size: 12.20"L x 5.51"W x 2.36"H
- Weight: 8.27 lbs.
- Agency Approvals: UL, CUL, CB, CE, EN, EAC, DEKRA
- Safety: UL/EN62368-1
- EMC: EN55032 / 55024
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
- Test and measurement instruments
- Laser related machinery
- Charging equipment
- Household appliances
Overview
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:UHP-2500
Compliance
Agency Approvals: CB, CE, CUL, DEKRA, EAC, EN, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:2.36 in.
Length:12.2 in.
Width:5.51 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:14.3 A
Output
Number of Outputs:1
Output Voltage (Channel 1):48 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current (Channel 1):52.1 A
Output Current:52.10 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
Efficiency:96%
Power Rating:2500.8 W
