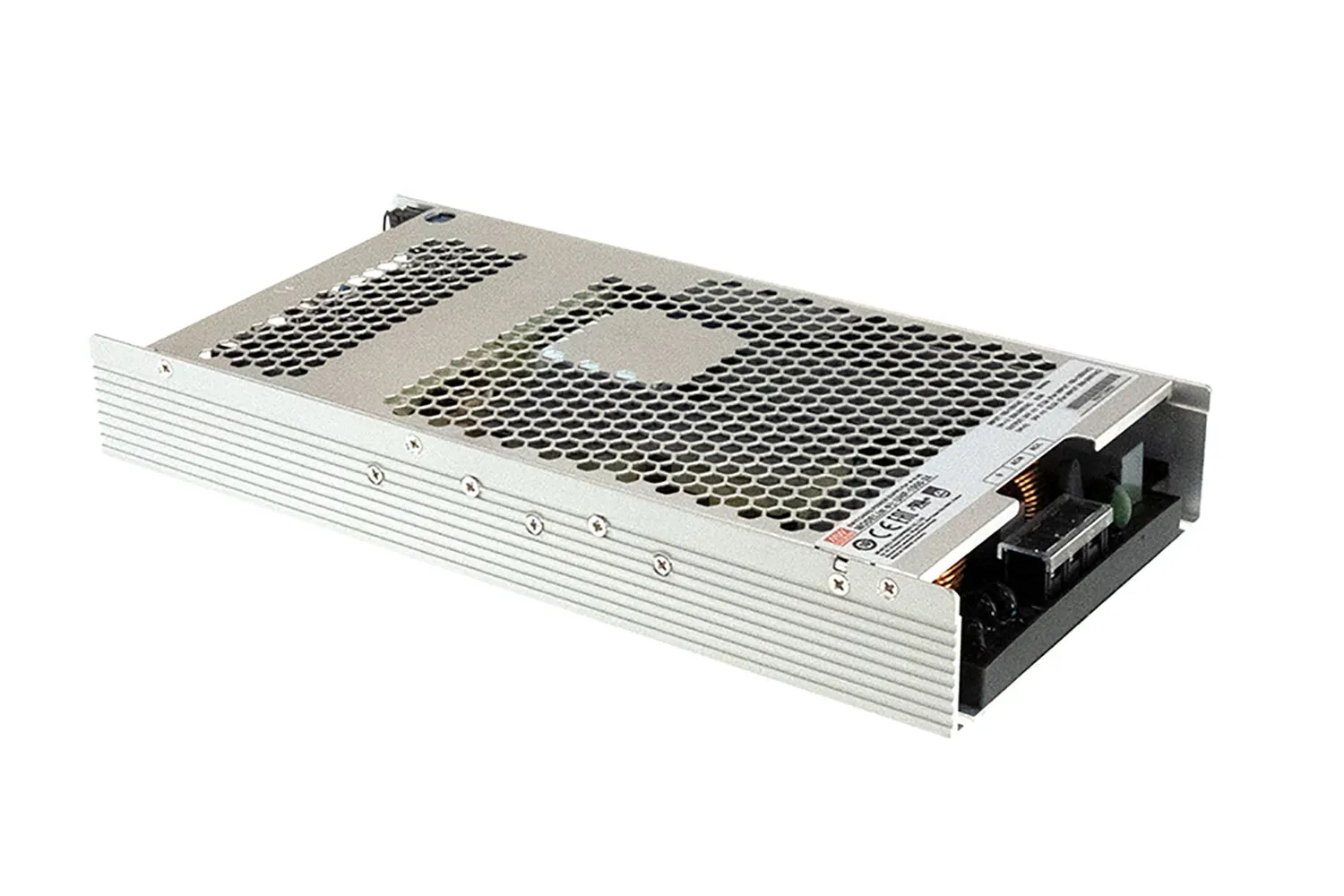

Conduction Cooling AC-DC Switching Enclosed Power Supply with PFC 48V 31.5A 1512W

Output: 48 Volts DC @ 31.5 Amps

Find out more about the MEAN WELL low-profile, miniaturized conduction cooling power supply family.

Features

  • Slim and low profile (41 mm)
  • Fanless and conduction-cooled design
  • Built-in active PFC function
  • -30 to +70°C
  • Output voltage and constant current level programmable
  • Protections: Short circuit, overload, over voltage, over temperature
  • Built-in remote ON-OFF control
  • DC OK active signal
  • Operating altitude up to 5000 meters
  • LED indicator for power ON
  • 5 year warranty

Specifications

  • Output Voltage: 48 VDC
  • Output Current: 31.5 A
  • Output Power: 1512 W
  • Input Voltage: 90 to 264 VAC @ 47 to 63 Hz
  • Efficiency: 96%
  • Output Connection: Screw Terminal
  • Size: 11.4"L x 5.51"W x 1.61"H
  • Weight: 5.9 lbs.
  • Agency Approvals: UL, CUL, CB, CE, EN, EAC, DEKRA
  • Safety: UL/EN62368-1
  • EMC: EN55032 / 55024

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Test and measurement instruments
  • Laser related machinery
  • Charging equipment
  • Household appliances

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:UHP-1500

Compliance

Agency Approvals: CB, CE, CUL, DEKRA, EAC, EN, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.61 in.
Length:11.4 in.
Width:5.51 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:8 A

Output

Number of Outputs:1
Output Voltage (Channel 1):48 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current (Channel 1):31.5 A
Output Current:31.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
Efficiency:96%
Power Rating:1512 W
,
