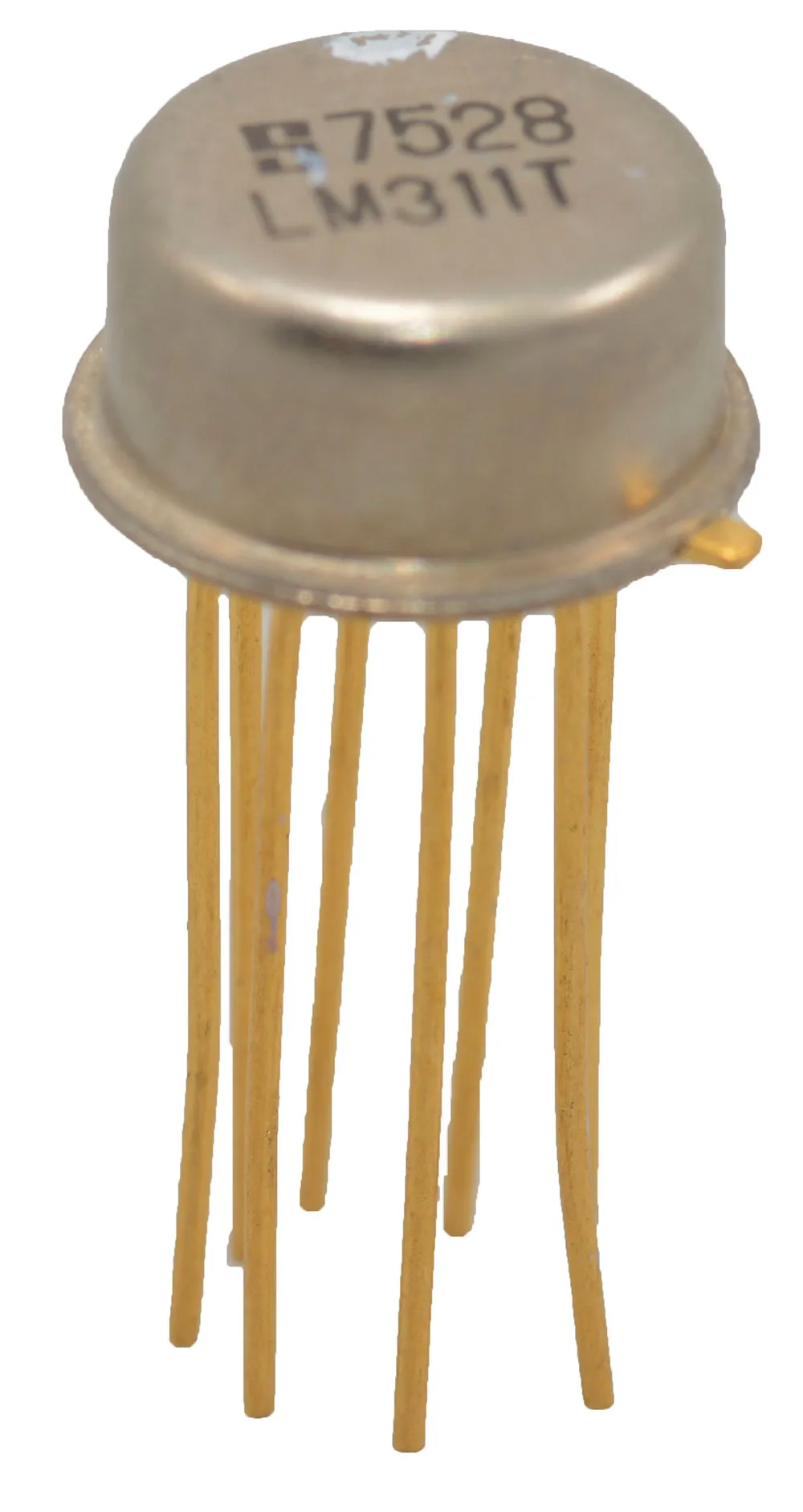

Comparator General Purpose Multi-Type TO-99-8

Specifications

• Type: General Purpose
• Number of Elements: 1
• Output Type: DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
• Voltage - Supply, Single/Dual (±): 5 V to 36 V, ±2.5 V to 18 V
• Voltage - Input Offset (Max): 7.5 mV @ ±15 V
• Current - Input Bias (Max): 0.25 µA @ ±15 V
• Current - Quiescent (Max): 7.5 mA
• Operating Temperature: 0°C to 70°C
• Package: TO-99-8 Metal Can
• Mounting Type: Through Hole
