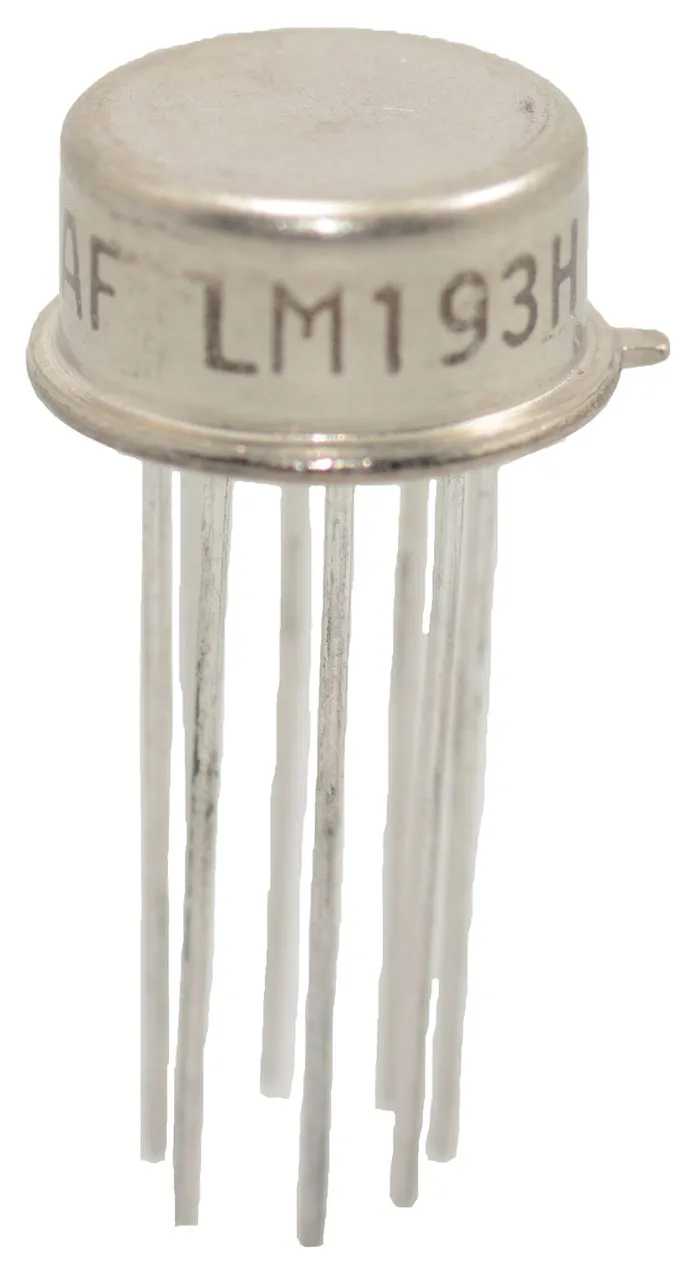

Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL TO-99-8

Specifications

  • Type: General Purpose
  • Number of Elements: 2
  • Output Type: CMOS, DTL, ECL, MOS, Open-Collector, TTL
  • Voltage - Supply, Single/Dual (±): 2 V to 36 V, ±1 V to 18 V
  • Voltage - Input Offset (Max): 5 mV @ 30 V
  • Current - Input Bias (Max): 0.1 µA @ 5 V
  • Current - Output (Typ): 16 mA @ 5 V
  • Current - Quiescent (Max): 2.5 mA
  • CMRR, PSRR (Typ): N/A
  • Propagation Delay (Max): 700 ns
  • Hysteresis: N/A
  • Operating Temperature: -55°C to 125°C
  • Package: TO-99-8 Metal Can
  • Mounting Type: Through Hole
  • Base Number: LM193

,
