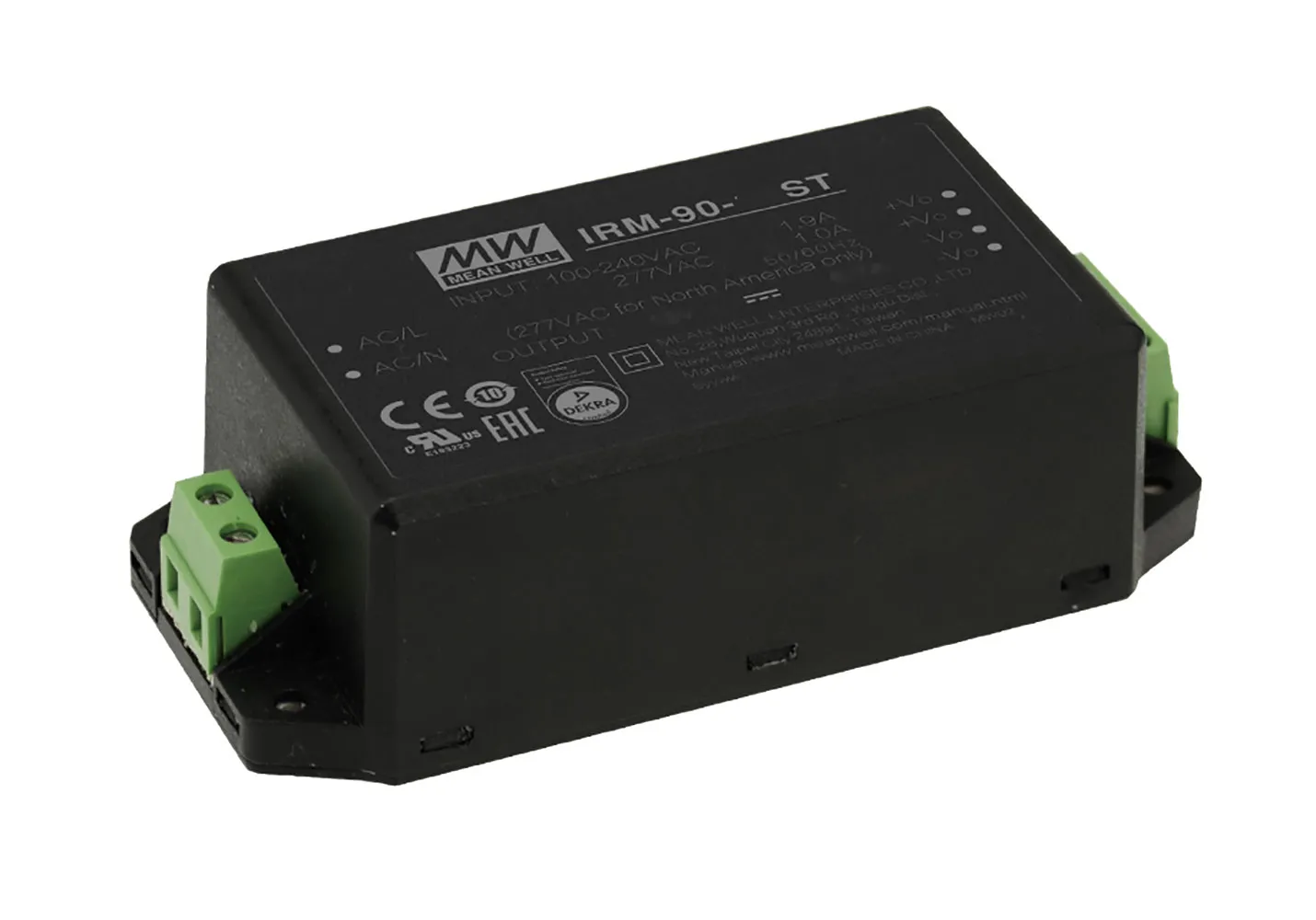

Compact Green Power Module Encapsulated 24V 3.75A 90W PCB Mount Screw Terminal

Output: 24 Volts DC @ 3.75 Amps

Features

  • Compact Module Size: 3.43" x 2.05"
  • PCB screw terminal version
  • No load power consumption <0.21W
  • EMI EN55032 Class B without additional components
  • Wide operating temperature range: -30 to 80°C
  • Protections: Short circuit, overload, over voltage
  • Cooling by free air convection
  • Isolation Class II
  • Over voltage category III
  • Operating altitude up to 4000 meters
  • 3 year warranty

Specifications

  • Output Voltage: 24 VDC
  • Output Current: 3.75 A (convection); 4.13 A (peak, 10 sec.)
  • Rated Power: 90 W (convection); 99 W (peak, 10 sec.)
  • Universal AC Input Voltage Range: 80 to 305 VAC @ 47 to 63 Hz; 1.9A/115VAC (1.1A/230VAC)
  • Efficiency (typ.): 93%
  • Agency Approvals: UL, CUL, CB, CE, DEKRA, EN, EAC
  • Size: 4.29 "L x 2.05"W x 1.32"H (109 x 52 x 33.5 mm)

Applications

  • Industrial electrical equipment
  • Mechanical equipment
  • Factory automation equipment
  • Handheld electronic device

Product Identification

Product Type:Power Module SMPS
Manufacturer Series:IRM-90

Compliance

Agency Approvals: CB, CE, CUL, DEKRA, EAC, EN, UL

Dimensions & Appearance

Style:Encapsulated
Color:Black
Height:1.32 in.
Width:2.05 in.
Length:4.29 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 305 VAC
Maximum Input Current:1.9 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current:3.75 A

Features

Minimum Isolation Voltage:4000V
Efficiency:93%
Power Rating:90 W
,
