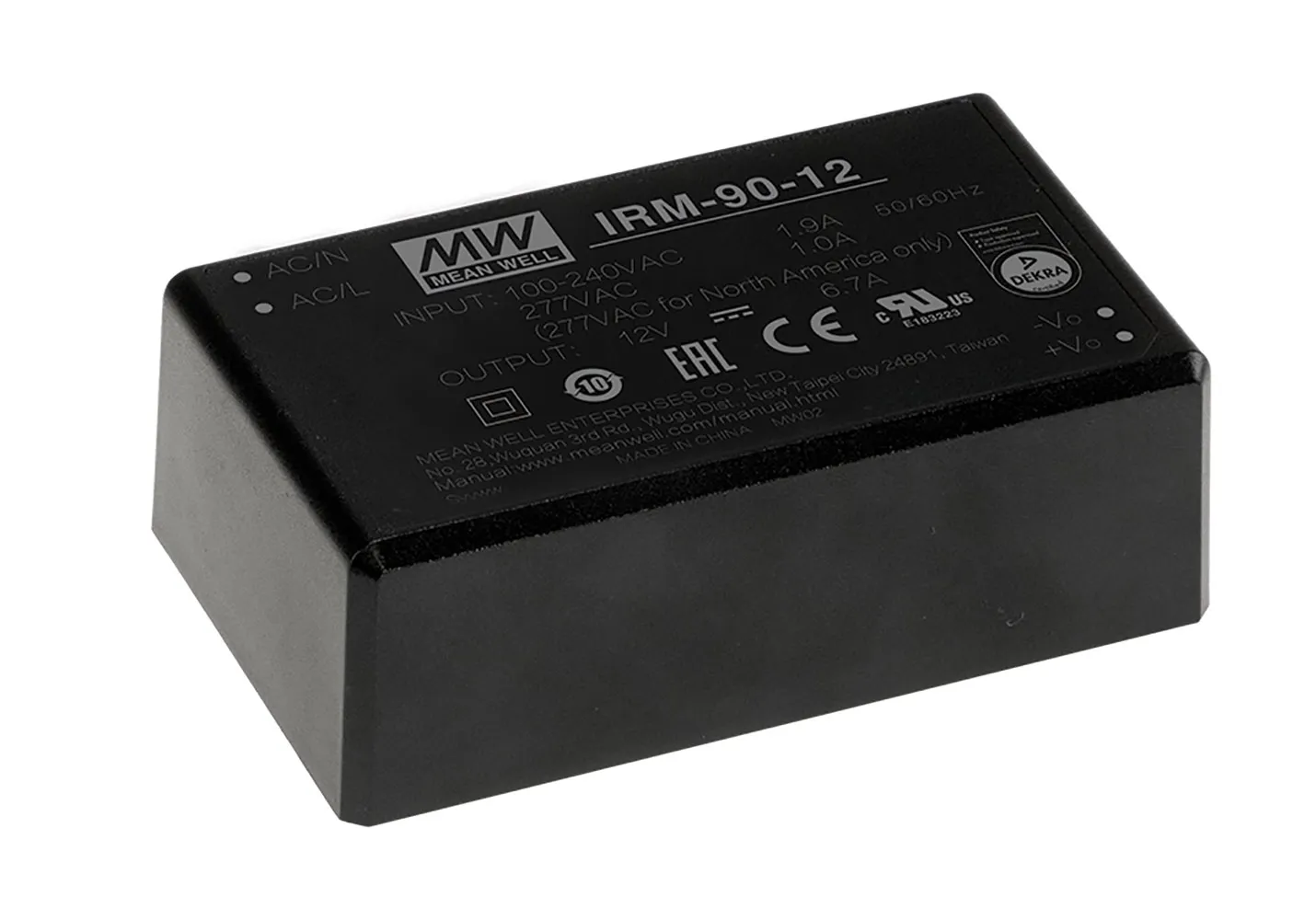

Compact Green Power Module Encapsulated 12V 6.7A 80.4W PCB Chassis Mount

Output: 12 Volts DC @ 6.7 Amps

Features

  • Compact Module Size: 3.43" x 2.05"
  • PCB chassis mounting version
  • No load power consumption <0.21W
  • EMI EN55032 Class B without additional components
  • Wide operating temperature range: -30 to 80°C
  • Protections: Short circuit, overload, over voltage
  • Cooling by free air convection
  • Isolation Class II
  • Over voltage category III
  • Operating altitude up to 4000 meters
  • 3 year warranty

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 6.7 A (convection); 7.37 A (peak, 10 sec.)
  • Rated Power: 80.4 W (convection); 88.4 W (peak, 10 sec.)
  • Universal AC Input Voltage Range: 80 to 305 VAC @ 47 to 63 Hz; 1.9A/115VAC (1.1A/230VAC)
  • Efficiency (typ.): 92%
  • Agency Approvals: UL, CUL, CB, CE, DEKRA, EN, EAC
  • Size: 3.43"L x 2.05"W x 1.16"H (87 x 52 x 29.5 mm)

Applications

  • Industrial electrical equipment
  • Mechanical equipment
  • Factory automation equipment
  • Handheld electronic device

Product Identification

Product Type:Power Module SMPS
Manufacturer Series:IRM-90

Compliance

Agency Approvals: CB, CE, CUL, DEKRA, EAC, EN, UL

Dimensions & Appearance

Style:Encapsulated
Color:Black
Height:1.16 in.
Width:2.05 in.
Length:3.43 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 305 VAC
Maximum Input Current:1.9 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Output Current:6.70 A

Features

Minimum Isolation Voltage:4000V
Efficiency:92%
Power Rating:80.4 W
,
