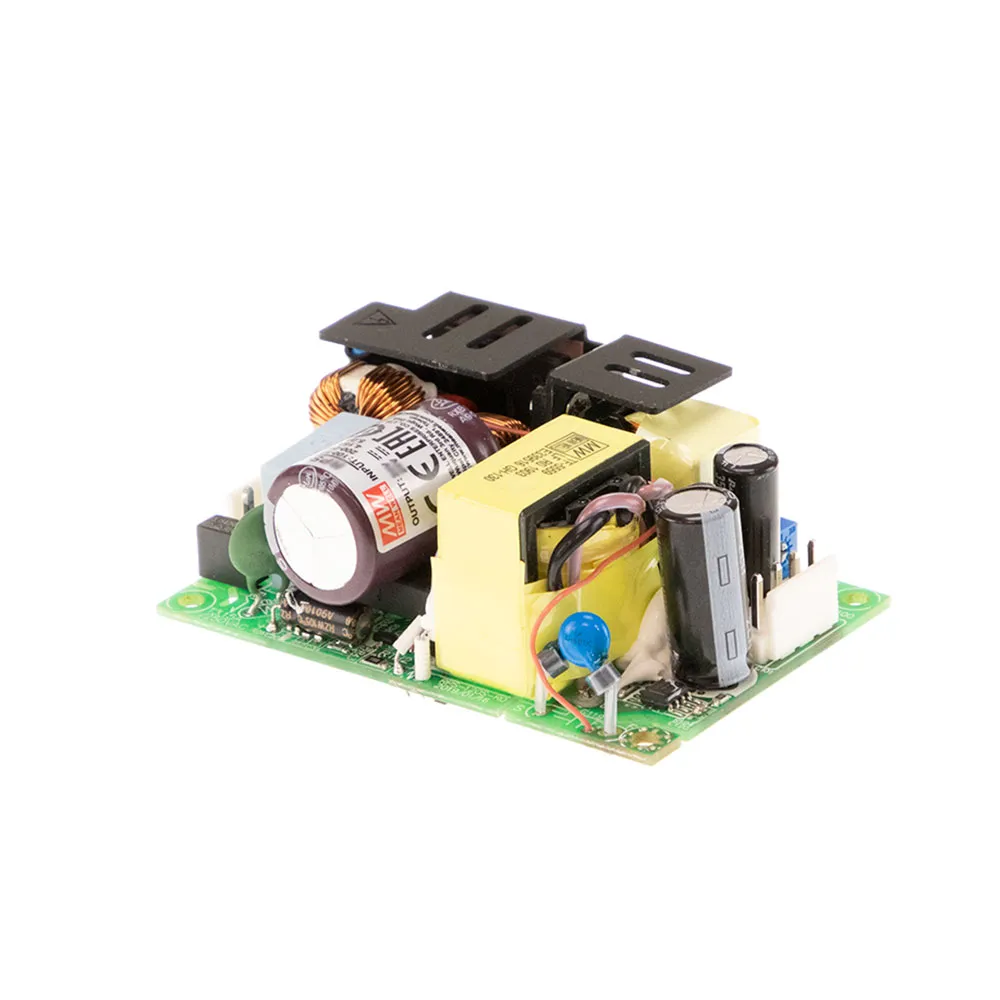

Compact Green Open Frame Switching Power Supply 48V 2.5A 120W

Output: 48 Volts DC @ 2.5 Amps (convection); 3.125 Amps (peak 10 sec.)

Features

  • 3" x 2" compact size
  • 120W (max convection); 150W peak (10 sec.)
  • EMI for both Class I & Class II configuration
  • -30 to +85°C wide operating temperature
  • No load power consumption: <0.3W
  • High efficiency up to 93.5%
  • Protections: Short circuit, overload, over voltage, over temperature
  • Operating altitude up to 5000 meters
  • 3 year warranty

Specifications

  • Output Voltage: 48 VDC
  • Rated Current: 2.5 A (convection); 3.125 A (peak, 10 sec.)
  • Rated Power: 120 W
  • Voltage Adjustment Range: 45.6 to 50.4 V (by built-in potentiometer, SVR)
  • Input Voltage: 80 to 264 VAC @ 47 to 63 Hz
  • Agency Approvals: UL, CUL, TUV, CB, CE, EN, EAC

Applications

  • Industrial automation machinery
  • Industrial control systems
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus

Product Identification

Manufacturer Series:EPP-120S

Compliance

Agency Approvals: CCC, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:1.10 in.
Width:2 in.
Length:3 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:2.3 A

Output

Number of Outputs:1
Output Connector Type:JST B4P-VH or equiv.
Output Voltage:58 VDC
Additional Output Voltages (VDC):N/A
Output Current:2.50 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:4000V
Efficiency:93.5%
Power Rating:120 W
,
