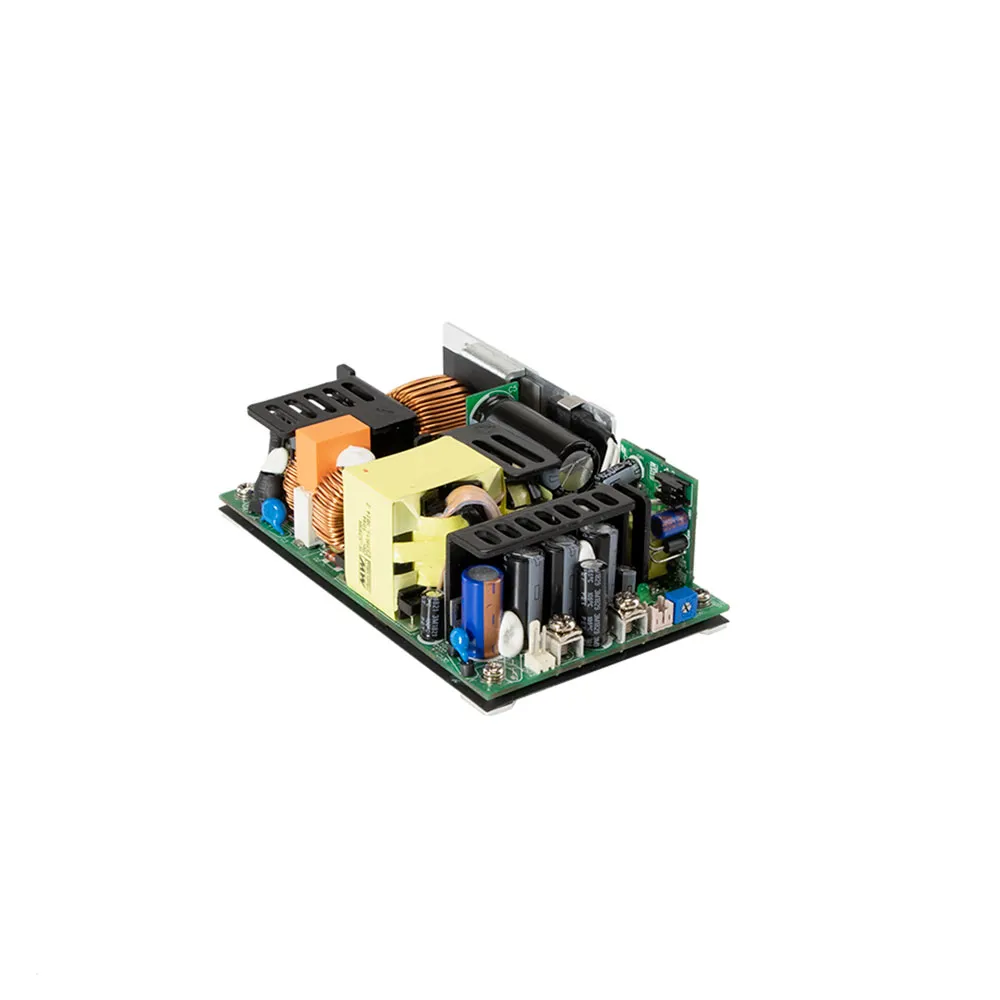

Compact Green Open Frame Switching Power Supply 27V 11.9A 321W Convection

Output: 27 Volts DC @ 11.9 Amps (convection); 18.5 Amps (25 CFM fan)

Features

  • 5" x 3" compact size
  • 320W (max convection); 500W (forced air)
  • 550W peak power (3 seconds)
  • EMI for both Class I & Class II configuration
  • -30 to +70°C wide operating temperature
  • No load power consumption: <0.5W by PS_ON control
  • High efficiency up to 93.5%
  • Protections: Short circuit, overload, over voltage, over temperature
  • 5V DC standby output, 12V DC fan supply, Power Good, Power Fail and remote sense
  • Operating altitude up to 5000 meters
  • LED indicator for power on
  • 3-year warranty

Specifications

  • Output Voltage: 27 VDC
  • Rated Current: 11.9 A (convection); 18.5 A (25 CFM fan, not included)
  • Rated Power: 321.3 W (convection); 499.5 W (25 CFM fan, not included)
  • Voltage Adjustment Range: 25.6 to 28.4 V (main output)
  • Input Voltage: 80 to 264 VAC @ 47 to 63 Hz
  • Agency Approvals: UL, CUL, TUV, CB, CE, EN, EAC

Applications

  • Industrial automation machinery
  • Industrial control systems
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Power sourcing equipment for PoE

Product Identification

Manufacturer Series:EPP-500

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:0.57 in.
Width:3 in.
Length:5 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:5.8 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:27 VDC
Additional Output Voltages (VDC):N/A
Output Current:11.90 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:93.5%
Power Rating:321.3 W
,
