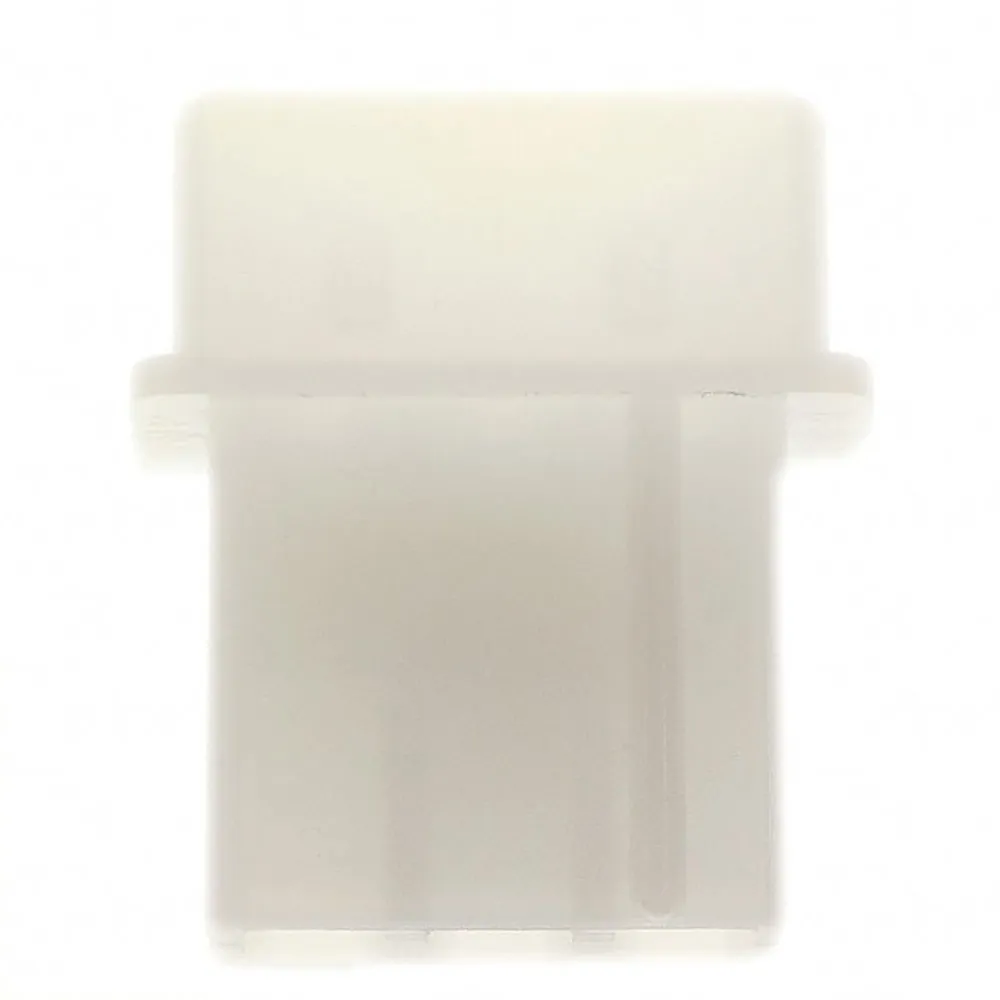

Commercial MATE-N-LOK 3 Position Rectangular Receptacle Housing for Male Pins 0.2" (5.08mm) Crimp

Specifications

  • Series: Commercial MATE-N-LOK
  • Connector Type: Receptacle
  • Contact Type: For Male Pins
  • Pitch - Mating: 0.2" (5.08 mm)
  • Number of Positions: 3
  • Number of Rows: 1
  • Row Spacing: n/a
  • Number of Positions Loaded: None
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Fastening Type: Friction Lock
  • Insulation Color: Natural
  • Note: Contacts Not Included
  • Base Number: 480305

Dimensions & Appearance

Mounting:Cable
Body Orientation:Straight

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-55°C

Features

Number of Rows:1
Number of Contacts:3
Housing Color:Natural
Maximum Contact Resistance:N/A
Contact Gender:Male Pin
Contact Material:N/A
Housing Material:Nylon
Contact Plating:N/A
Voltage Rating:250 VAC
Current Rating:N/A
,
