CMOS/TTL Logic Probe Kit

Features

• Small, easy to build, and easy to use.
• Operates from the power of the circuit being tested.
• Size of PC board: 3-5/8" x 1-1/4".
• Complete with all parts, PC board and instructions.
• Skill Level 1.

Overview

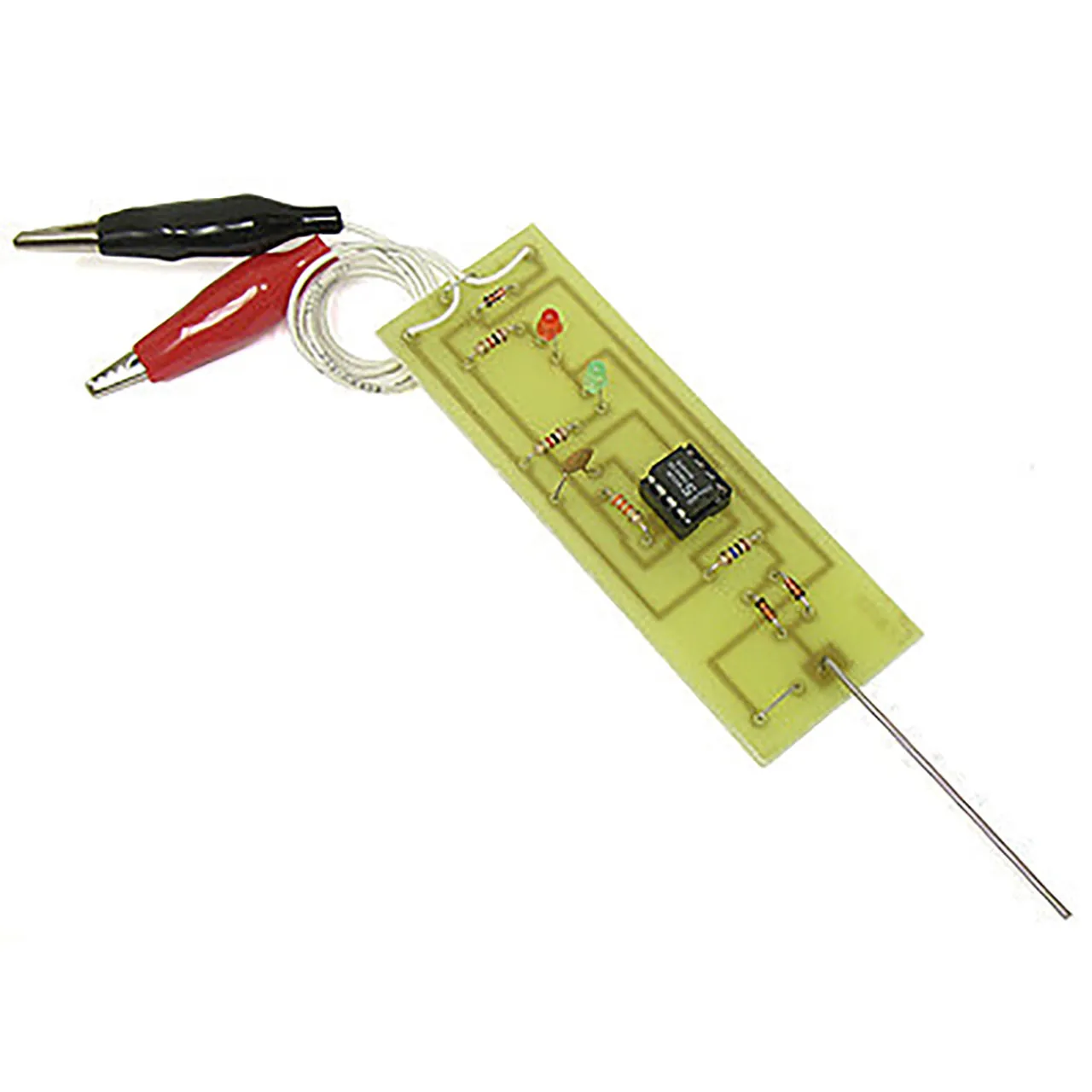

The C6722 CMOS/TTL Logic Probe Kit is a handy, reliable, and inexpensive logic probe that was designed to operate with voltages between 5 and 20 volts. This logic probe is the ideal tool for troubleshooting CMOS and TTL digital circuits. This kit features a visual indicator that consists of a red LED and a green LED. The red LED indicates a High (1) Logic state, and the green LED indicates a Low (0) logic state. This logic probe is small, easy to build, and easy to use. Operates from the power of the circuit being tested. Size of PC board: 3-5/8" x 1-1/4". Complete with all parts, PC board and instructions. Skill Level 1.
