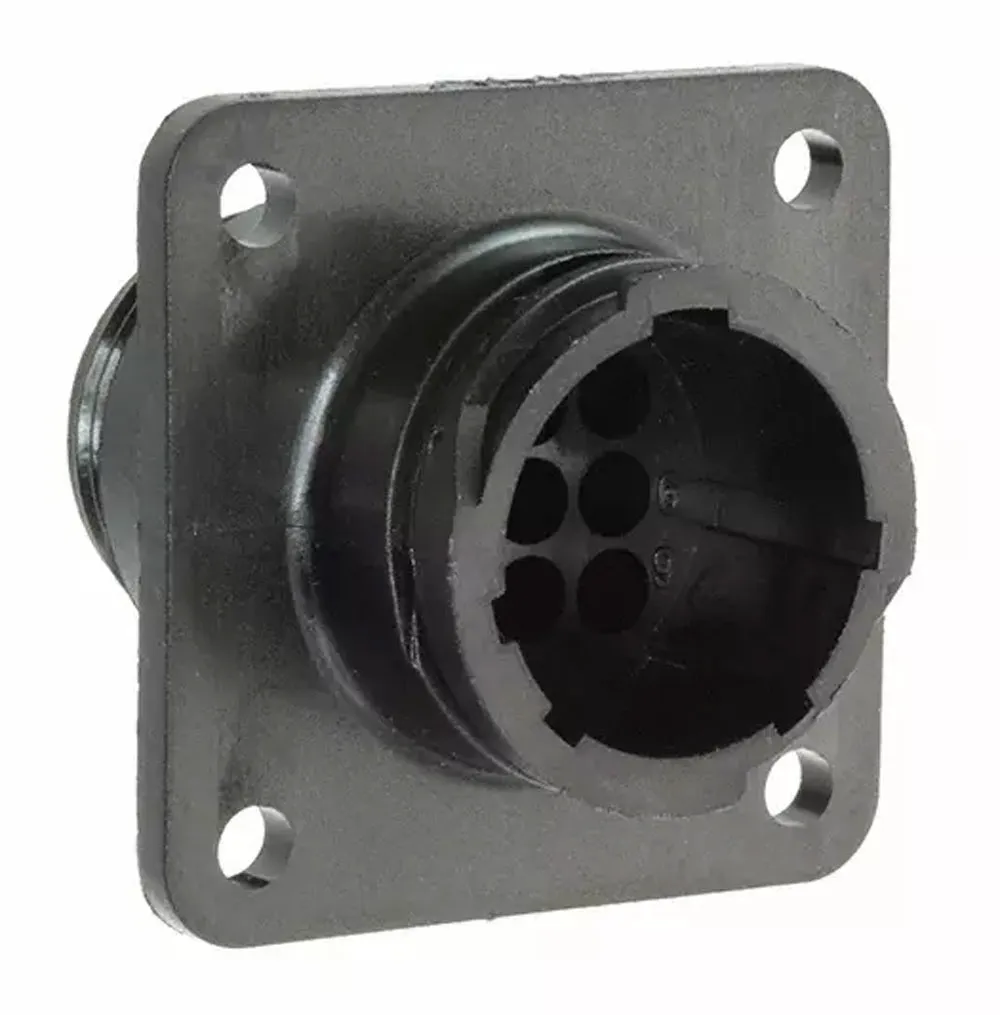

9-Contact Standard Male CPC Connector
Specifications:
- Series 1
- Flammability Rating: UL 94 V-0
- Size: 13-9
- Material: Plastic
- Voltage: 600V
- Orientation: Straight
- Panel Mount
Accessories:
- CPC Plugs - Free Hanging (Recommended: Socket 9 Position , p/n: 495103)
- CPC Cable Clamp Size 13 (Recommended: Cable Clamp , p/n: 494055)
- CPC Contacts (Recommended: Male Pin Contacts, p/n: 526441)
- Crimp Tool (Recommended: 14-18AWG Crimper, p/n: 99443)
- Extraction Tool (Recommended: For General Contacts, p/n: 841838)
Product Identification
Manufacturer Series:206705
Dimensions & Appearance
Diameter:20.6 mm
Depth:32.5 mm
Height:32.5 mm
Length:34.9 mm
Mounting:Panel Mount
Body Orientation:Straight
Operating conditions
Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C
Features
Number of Ports:1
Strain Relief:N/A
Shell Plating:N/A
Contact Material:Brass or Phospher Bronze
Termination Method:Crimp
Number of Terminals:9
Shell Size:13-9
Contacts Classification:9Signal
Number of Contacts:9
Contact Gender:PIN
Contact Plating:Tin or Gold
Gender:Male
Voltage Rating:< 600V
Current Rating:< 13A
