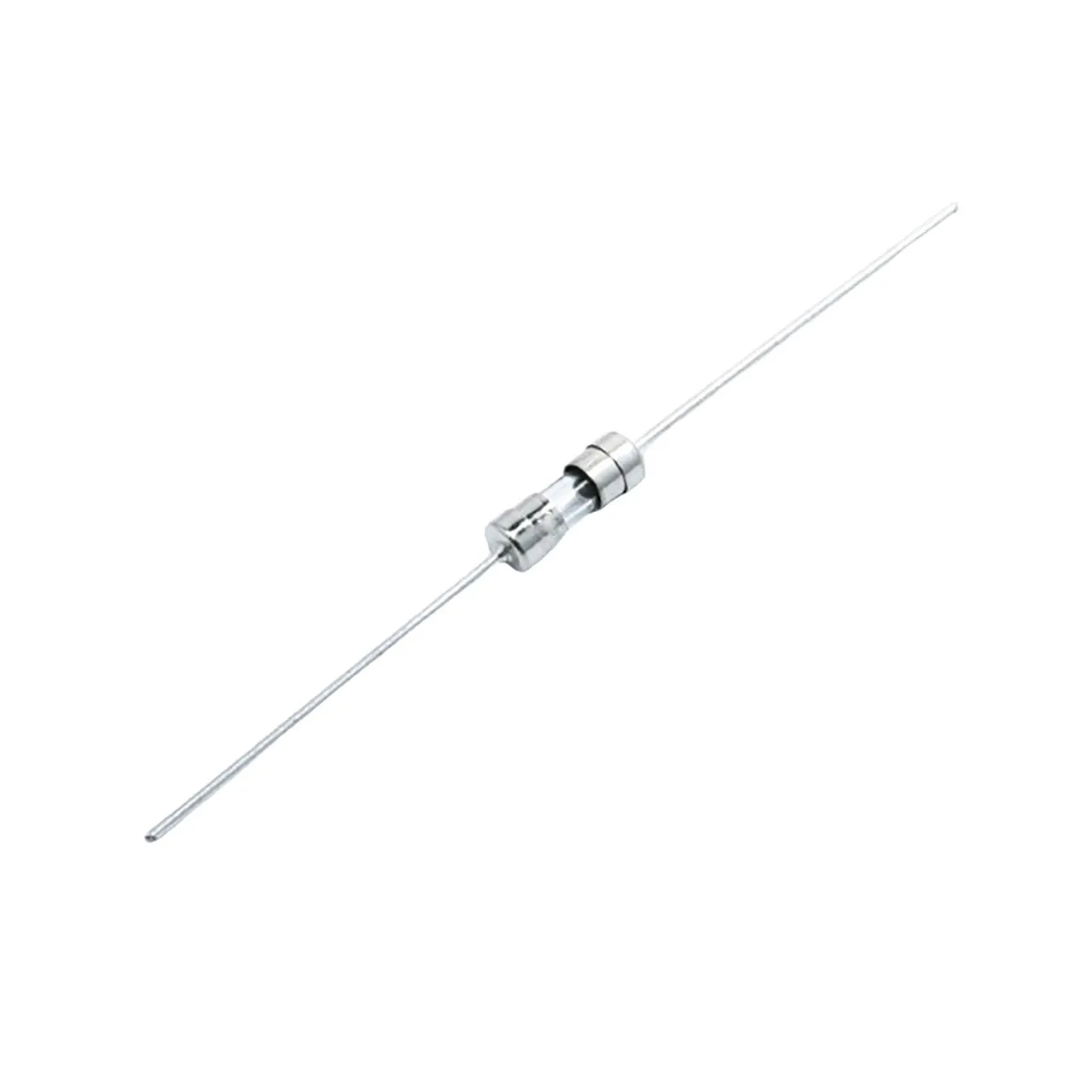

Circuit Protection Fuse 3.6x10mm Glass Slow 250V 500mA Axial Leads

Features

  • Series: TSF / TSF-P
  • Fuse type: Electronic Glass & Ceramic Fuses
  • Fuse Size/Group: 3.6 x 10 mm
  • Response Time: Slow
  • Current Rating: 0.5 A
  • Voltage Rating: 250 VAC,
  • Interrupt Rating AC: 50 A
  • Agency Approvals: cULus; UL 248
  • Major Safety Standards (UL vs IEC): UL/CSA
  • IP Rating: N/A
  • Size (LxWxH): 0.14 x 0.14 x 0.39 inches
  • Harmonized Code: 8536.10.0040
  • RoHS Status: RoHS Compliant
  • Reach Status: Reach Unaffected
  • CA Prop 65 Status: CA Prop 65 Compliant

Overview

Circuit Protection Fuse 3.6x10mm Glass Slow 250V 500mA Axial Leads.

Product Identification

Product Type:Electronic Glass & Ceramic Fuses
Manufacturer Series:TSF / TSF-P

Compliance

Agency Approvals: UL 248, culus

Dimensions & Appearance

Width:0.14 in.
Length:0.14 in.
Height:0.39 in.

Packaging

Packaging:Bulk

Features

Blow characteristic:Slow
Fuse Type:3.6 x 10 mm
IP Rating:N/A
Current Rating:0.5 A
Voltage Rating:250 VAC
,
