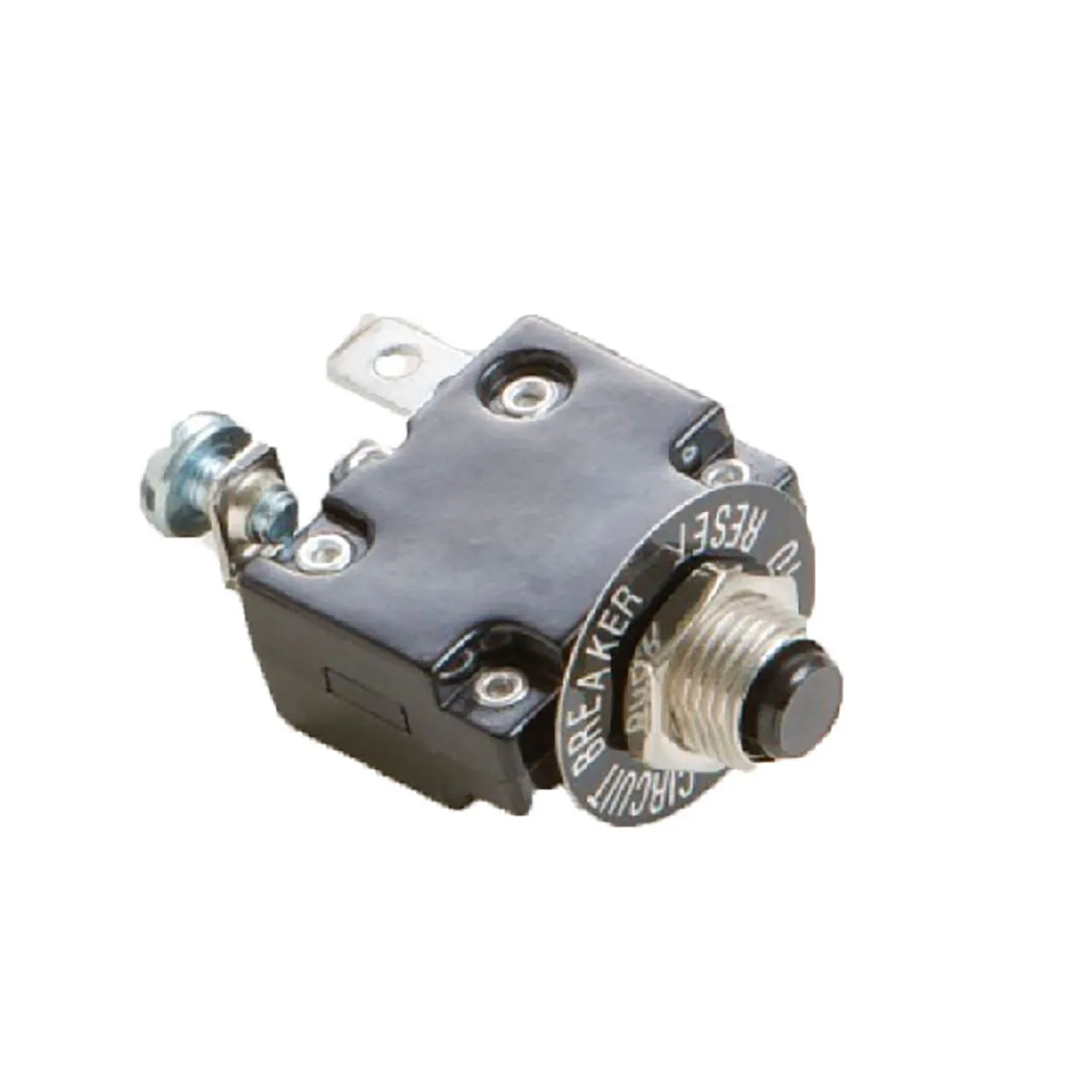

Circuit Protection Circuit Breaker Thermal Push to Reset 50VDC 250VAC 3A Plastic M11 Bushing 8-32 Screw 90° Bend Term White Button Black Text Plastic Nuts
Features
- Circuit Breaker Type: Line Voltage Circuit Breakers
- Reset Type: Manual Reset Type III
- Current Rating: 3 A
- Voltage Rating: 250 VAC, 50 VDC
- Agency Approvals: cURus; SAE J1171; UL 1077; UL 1500
- IP Rating: IP40
- Size (LxW): 1.16 x 0.57 inches
- Manufacturer Series: CBW57
- RoHS Status: RoHS Compliant
- Reach Status: Reach Unaffected
- CA Prop 65 Status: CA Prop 65 Compliant
- Harmonized Code: 8536.20.0040
Overview
Circuit Protection Circuit Breaker Thermal Push to Reset 50VDC 250VAC 3A Plastic M11 Bushing 8-32 Screw 90° Bend Term White Button Black Text Plastic Nuts.
Product Identification
Product Type:Line Voltage Circuit Breakers
Manufacturer Series:CBW57
Compliance
Agency Approvals: UL 1077, SAE J1171, UL 1500, cURus
Dimensions & Appearance
Width:0.57 in.
Length:1.16 in.
Features
Reset Type:Manual Reset - Type III
IP Rating:IP40
Voltage Rating:250 VAC, 50 VDC
Current Rating:3 A
