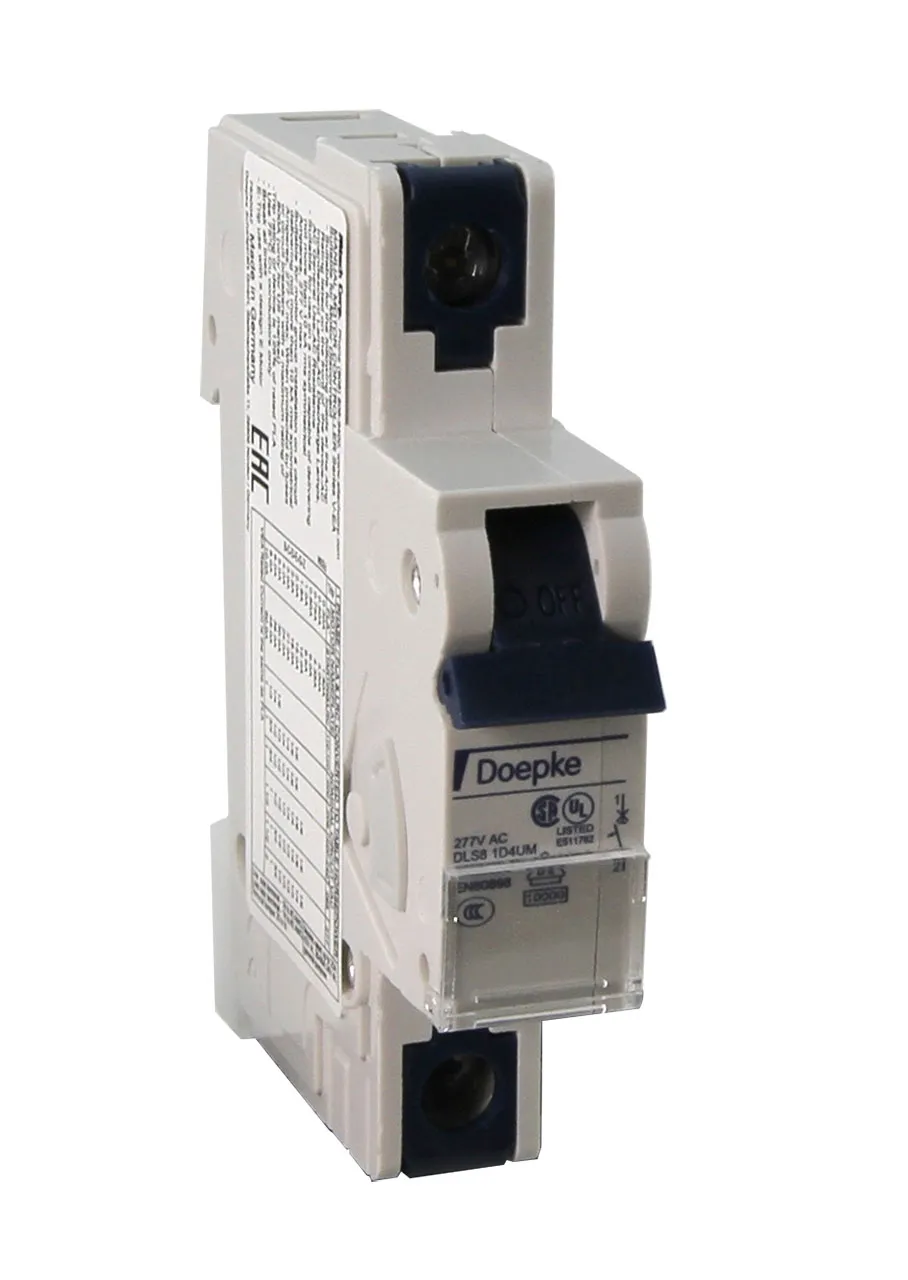

Circuit Breaker 1G3UM 3A G CHAR 1 Pole 277VAC UL508

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$19.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$19.850	-	-
10+	$18.850	1.00	5.04%
50+	$17.850	2.00	10.08%

Poles: One Pole
Rated Current: 3.0A
Approvals: UL, SA
Series: UM (V-EA) Series - G Trip
Current/Voltage Rating: 0.3-60A/480Y/277 AC, 0.3-25A: 1 pole - 42 V DC , 30-60A:1 Pole - 24V DC
Short Circuit Withstand Rating (UL/CSA Ratings): 0.3-60A (RC): 10kA with UL-listed, RK5 back-up fuse or MCCB
Group Short Circuit Withstand Rating (UL/CSA - Ratings): 0.3-10A (RC): 10kA; 12-60A (RC): 5kA - no branch circuit protection required
Interrupting Capacity (VDE - Ratings): 03-63A (RC): 10kA
Calibration Temperature: 40°C (10F°F)
Operating Temperature: -25°C - 55° (13°F to 131°F)
Storage Temperature: -40°C to 73°C (-40°F to 158°F)
Terminal Size Acceptability: Top:18-3 AWG: Bottom: 18-2 AWG
Terminal Torque: 2 Nm (17.7 lb.in) / 2.5 Nm (22.2 lb.in)
Vibration Resistance: > 15g according to DIN EN 60069-2-59 during a load with I1 + 1.05 x IN
Degree of Protection acc. IEC/EN 60529: IP20
Mounting Orientation: In any plane

Circuit Breaker 1G3UM 3A G CHAR 1 Pole 277VAC UL508

Product Identification

Additional Feature:2 Nm (17.7 lb.in) / 2.5 Nm (22.2 lb.in)

Product Type:UL508 Thermal Magnetic Breaker

Manufacturer Series:UM (V-EA) Series - G Trip

Agency Approvals: SA, UL

Mounting:DIN Rail

Minimum Operating Temperature:-25°C

Maximum Operating Temperature:55°C

Number of Poles:1

Voltage Rating:0.3-60A/480Y/277 AC, 0.3-25A: 1 pole - 42 V DC , 30-60A:1 Pole - 24V DC

IP Rating:IP20

Terminal Type:Top:18-3 AWG: Bottom: 18-2 AWG

Current Rating:3 A
