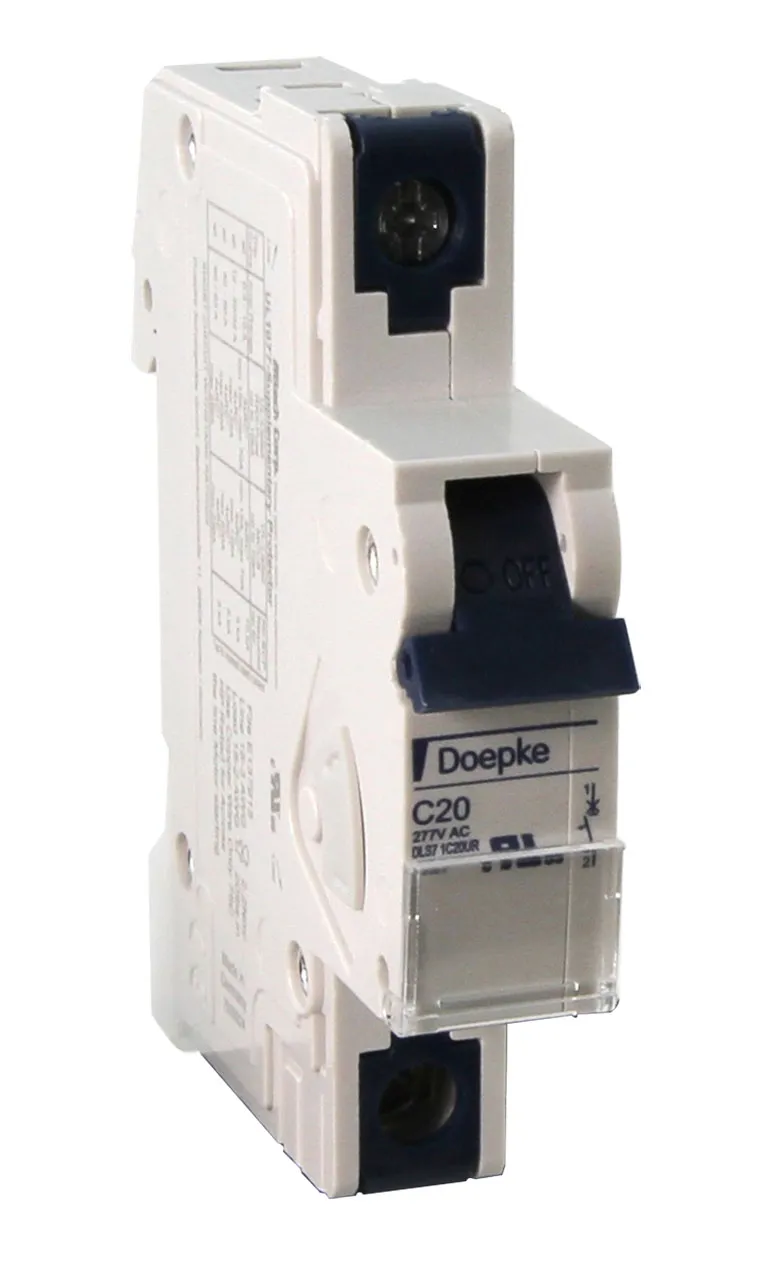

Circuit Breaker 1C10UR 10A MCB C CHAR 1 Pole 277VAC UL1077

Features

• Series: UR Series - C Trip
• Agency Approvals: cRU US, UL
• Rated Current: 10A
• Rated Voltage: 277V AC
• Voltage Rating: 0.5-60A/480 Y/277 AC
• Short Circuit Withstand Rating: 0.5 - 10A (RC): 10 kA with no back-up fuse; 8 - 63A (RC): 10kA with UL-listed Class J back-up fuse; 5 kA with no back-up fuse
• Calibration Temperature: 30°C (86°F)
• Ambient Temperature: -25°C + 55°C (-13°F to 13°F)
• Storage Temperature: -40°C to + 70°C (-40°F ro 158°F)
• Terminal Torque: 2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
• Electrical Life: 6,000 switching cycles ON/OFF
• Mechanical Life: 10,000 switching cyles ON/FF
• Vibration Resistance: > 15g according to DIN EN 60069-2-59 during a load with 1.05 N
• Resistance to Mechanical Shock: 25g @ 11 ms
• Ingress Protection: IP20
• DIN Mounting Orientation: In any plane
• Standard Pack: 12

Overview

Circuit Breaker 1C10UR 10A MCB C CHAR 1 Pole 277VAC UL1077
