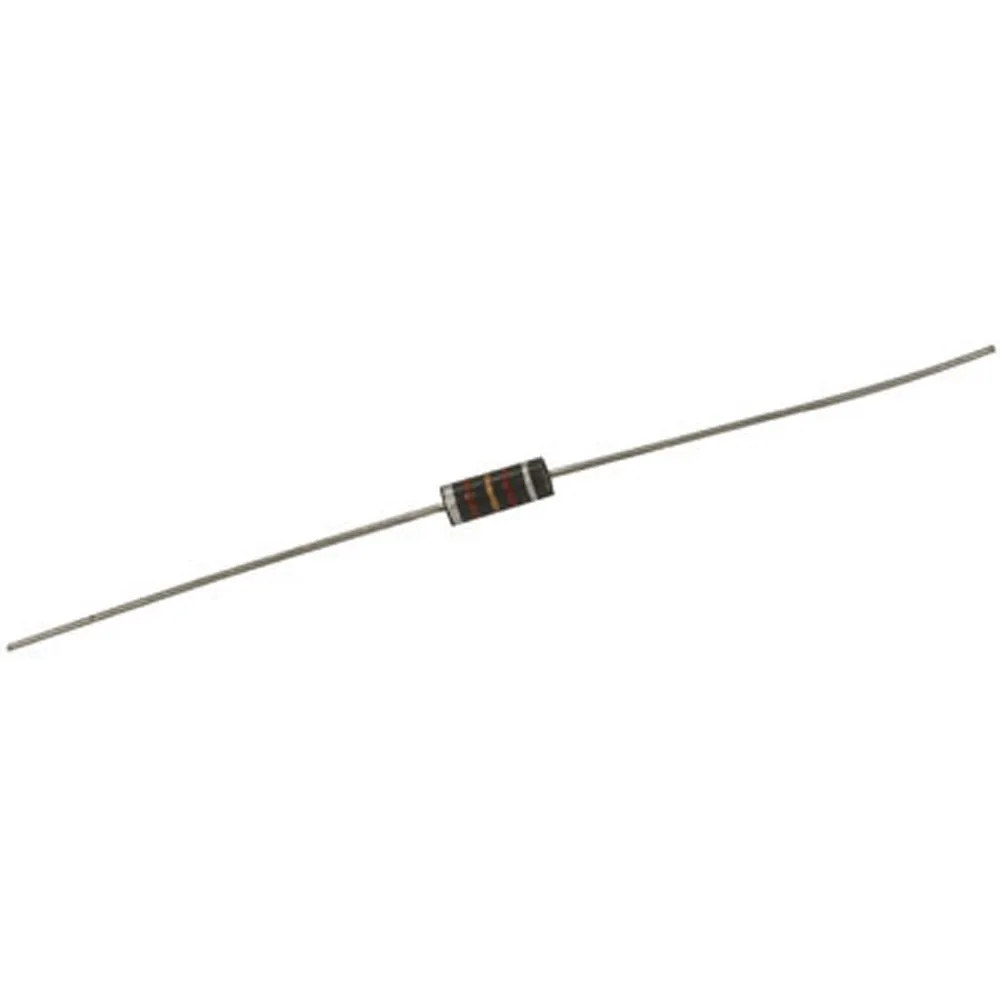

1 ELEMENT, 0.39 uH, PHENOLIC-CORE, GENERAL PURPOSE INDUCTOR
Product Identification
Manufacturer Series:9230
Dimensions & Appearance
Length:6.35 mm
Body Diameter:2.41 mm
Operating conditions
Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C
Features
Lead Style:Axial
Core Material:Phenolic
Tolerance:10%
Test Frequency:25MHz
Technology:Wirewound
Protection Style:Molded
Inductance:0.39 uH
Minimum Quality Factor:30@25MHz
Maximum Self Resonant Frequency:380 MHz(Min)
Current Rating:640 mA
Maximum DC Resistance:300 mOhm
