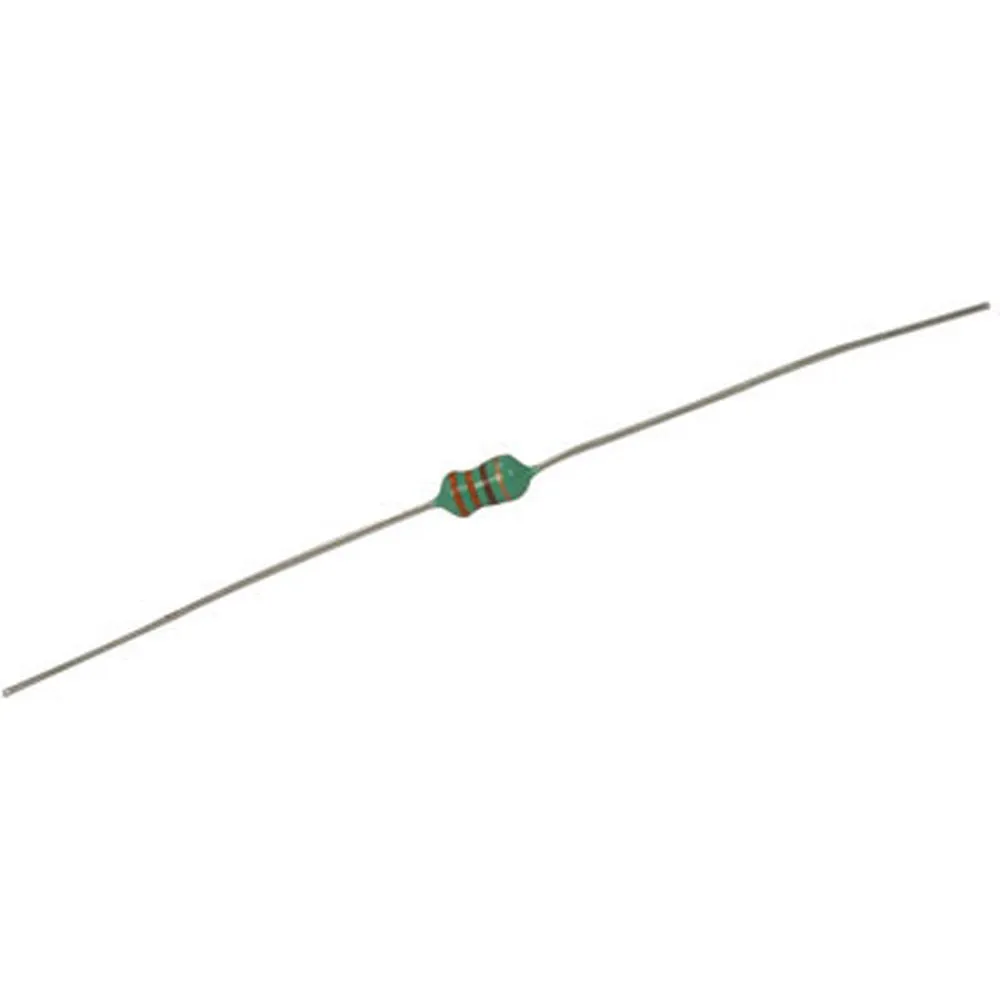

10uH Axial Choke

Features:

  • Inductance: 10µH
  • Tolerance: ±10%
  • Q Factor: 40 min. (efficiency)
  • Self Resonant Frequency: 18 MHz
  • Resistance DC: 370 mA
  • Resistance: 0.75 Ω
  • Conformal coated axial choke

    • Product Identification

    Manufacturer Series:78F

    Dimensions & Appearance

    Length:7.11 mm
    Body Diameter:2.79 mm

    Operating conditions

    Maximum Operating Temperature:105°C
    Minimum Operating Temperature:-55°C

    Features

    Tolerance:0.05
    Lead Style:Axial
    Technology:Bobbin Core
    Core Material:Ferrite
    Test Frequency:7.9MHz
    Minimum Quality Factor:[email protected]
    Maximum Self Resonant Frequency:22 MHz(Min)
    Inductance:10 uH
    Current Rating:370 mA
    Maximum DC Resistance:720 mOhm
    ,
