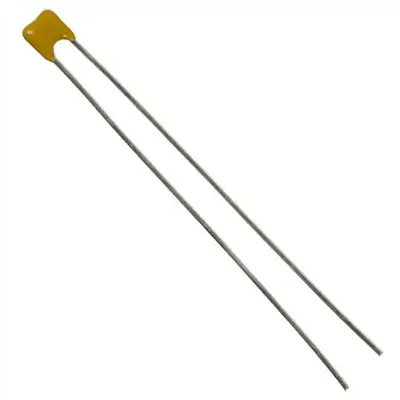

Ceramic Capacitor 1500pF 10% 100V X7R Radial

Specifications

  • Series: SkyCap® SR
  • Capacitance: 1500 pF (1.5 nF, 0.0015 µF)
  • Tolerance: ±10%
  • Voltage - Rated: 100 V
  • Temperature Coefficient: X7R
  • Operating Temperature: -55°C to 125°C
  • Applications: General Purpose
  • Mounting Type: Through Hole
  • Package: Radial
  • Dimension: 0.150" L x 0.100" W (3.81 mm x 2.54 mm)
  • Height - Seated (Max): 0.150" (3.81 mm)
  • Lead Spacing: 0.100" (2.54 mm)
  • Lead Style: Straight

Dimensions & Appearance

Body Width:3.81 mm

Features

Dielectric:X7R
Tolerance:10%
Lead Length:30 mm
Capacitance (pF):1500
Capacitance:0.0015 uF, 1500 pF
Capacitance (uF):0.0015
Lead Pitch:2.54 mm
Voltage Rating:100 VDC
,
