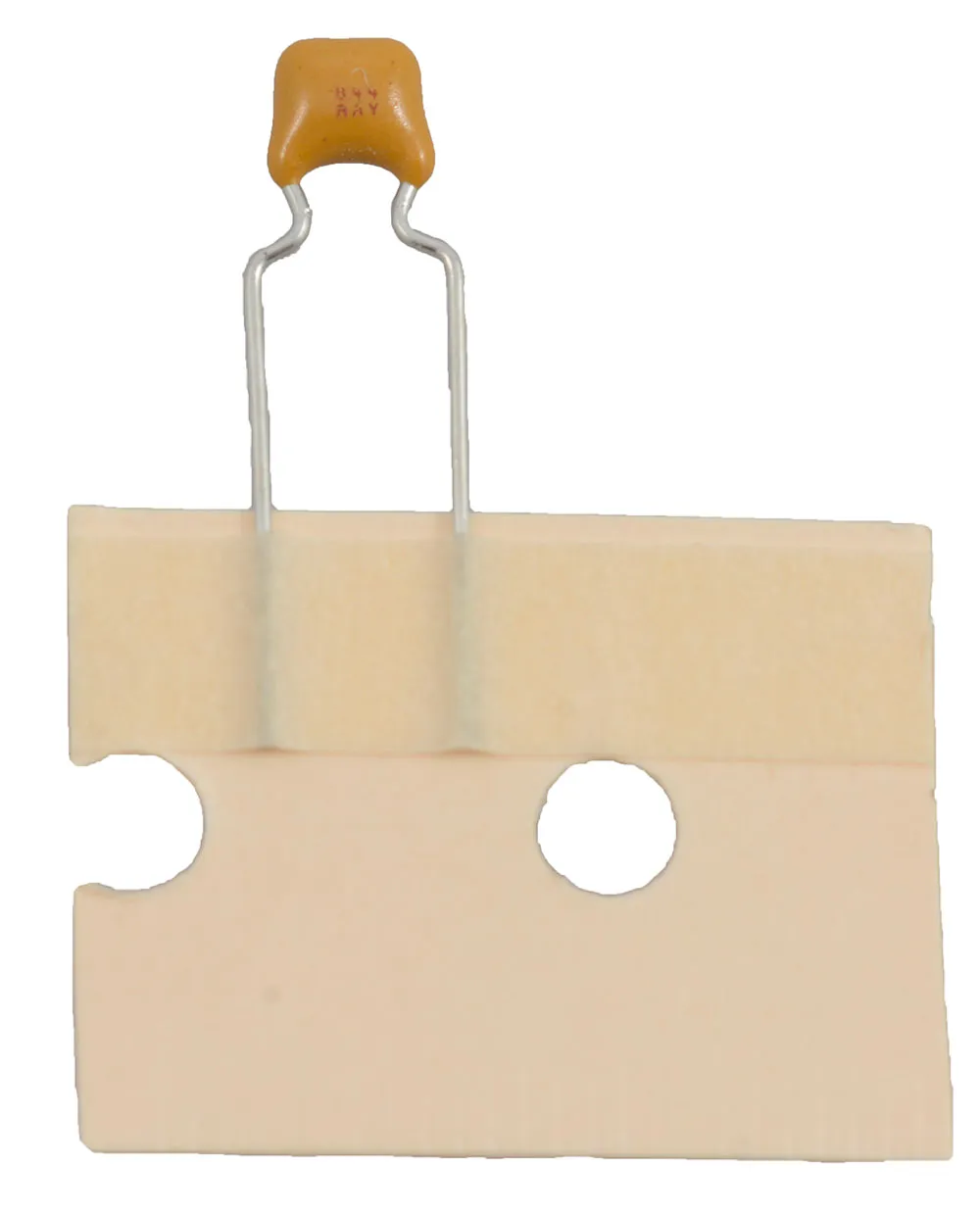

Ceramic Capacitor 10000pF 20% 100V X7R Radial

Specifications

  • Series: SkyCap® SR
  • Capacitance: 10,000 pF (10 nF, 0.01 µF)
  • Tolerance: ±20%
  • Voltage - Rated: 100 V
  • Temperature Coefficient: X7R
  • Operating Temperature: -55°C to 125°C
  • Ratings: n/a
  • Applications: General Purpose
  • Mounting Type: Through Hole
  • Package: Radial
  • Size: 0.2" L x 0.125" W (5.08 mm x 3.18 mm)
  • Height - Seated (Max): 0.3" (7.62 mm)
  • Lead Spacing: 0.200" (5.08 mm)
  • Lead Style: Formed Leads - Kinked

Dimensions & Appearance

Body Width:5.08 mm

Features

Capacitance (pF):10000
Dielectric:X7R
Capacitance (uF):0.01
Tolerance:20%
Lead Length:30 mm
Capacitance:0.01 uF, 10000 pF
Lead Pitch:5.08 mm
Voltage Rating:100 VDC
,
