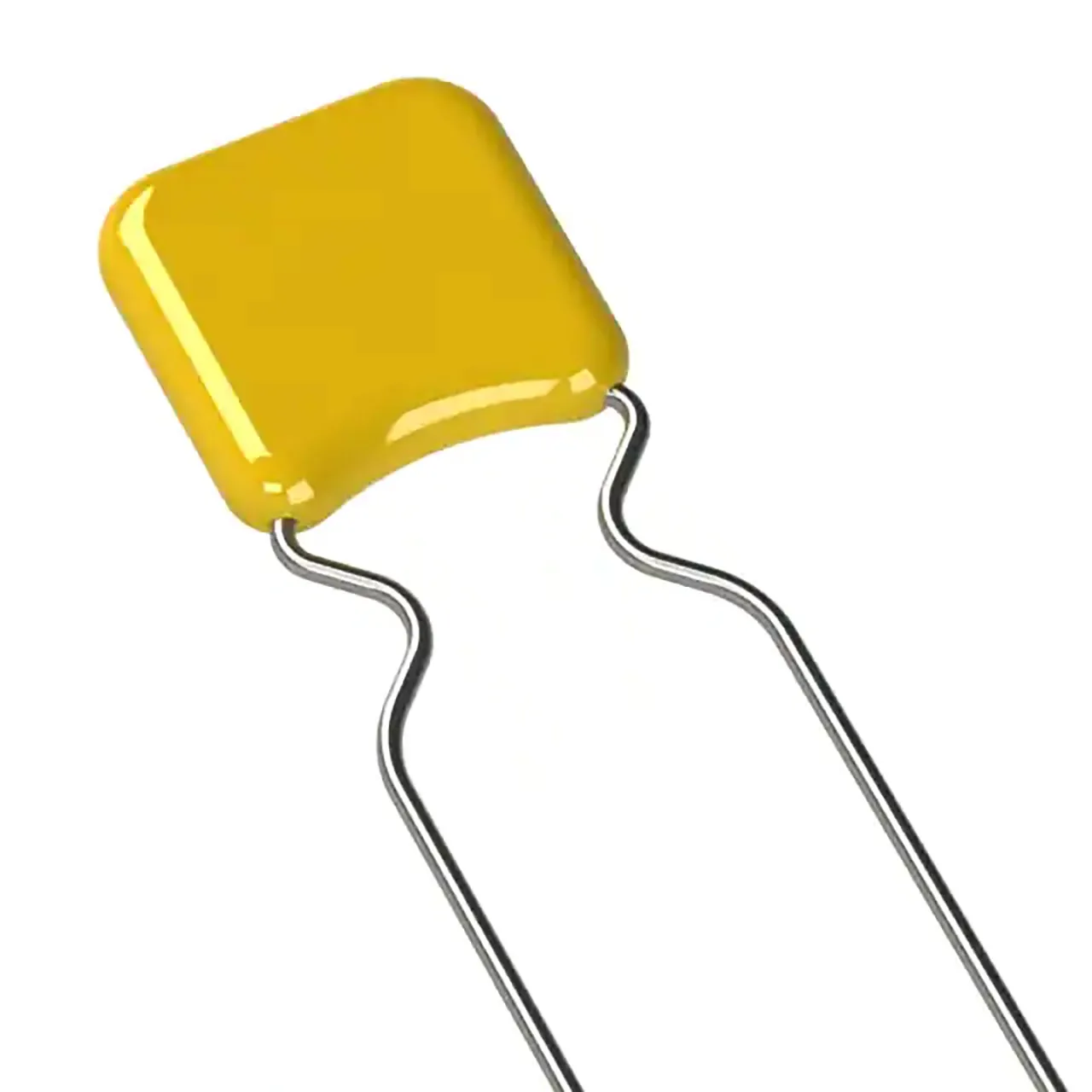

0.1 µF ±20% 50V Ceramic Capacitor X7R Radial
Features
- Capacitance: 0.1 µF
- Tolerance: ±20%
- Voltage - Rated: 50V
- Temperature Coefficient: X7R
- Operating Temperature: -55°C ~ 125°C
- Features: -
- Ratings: -
- Applications: General Purpose
- Mounting Type: Through Hole
- Package / Case: Radial
- Size / Dimension: 0.200" L x 0.125" W (5.08mm x 3.18mm)
- Height - Seated (Max): 0.300" (7.62mm)
- Thickness (Max): -
- Lead Spacing: 0.200" (5.08mm)
- Lead Style: Formed Leads - Kinked
Dimensions & Appearance
Height:7.62 mm
Length:5.08 mm
Body Width:3.18 mm
Features
Capacitance (uF):0.1
Capacitance (pF):100000
Dielectric:X7R
Tolerance:20%
Lead Length:26 mm
Lead Pitch:5.08 mm
Capacitance:0.1 uF, 100000 pF
Voltage Rating:50 VDC
