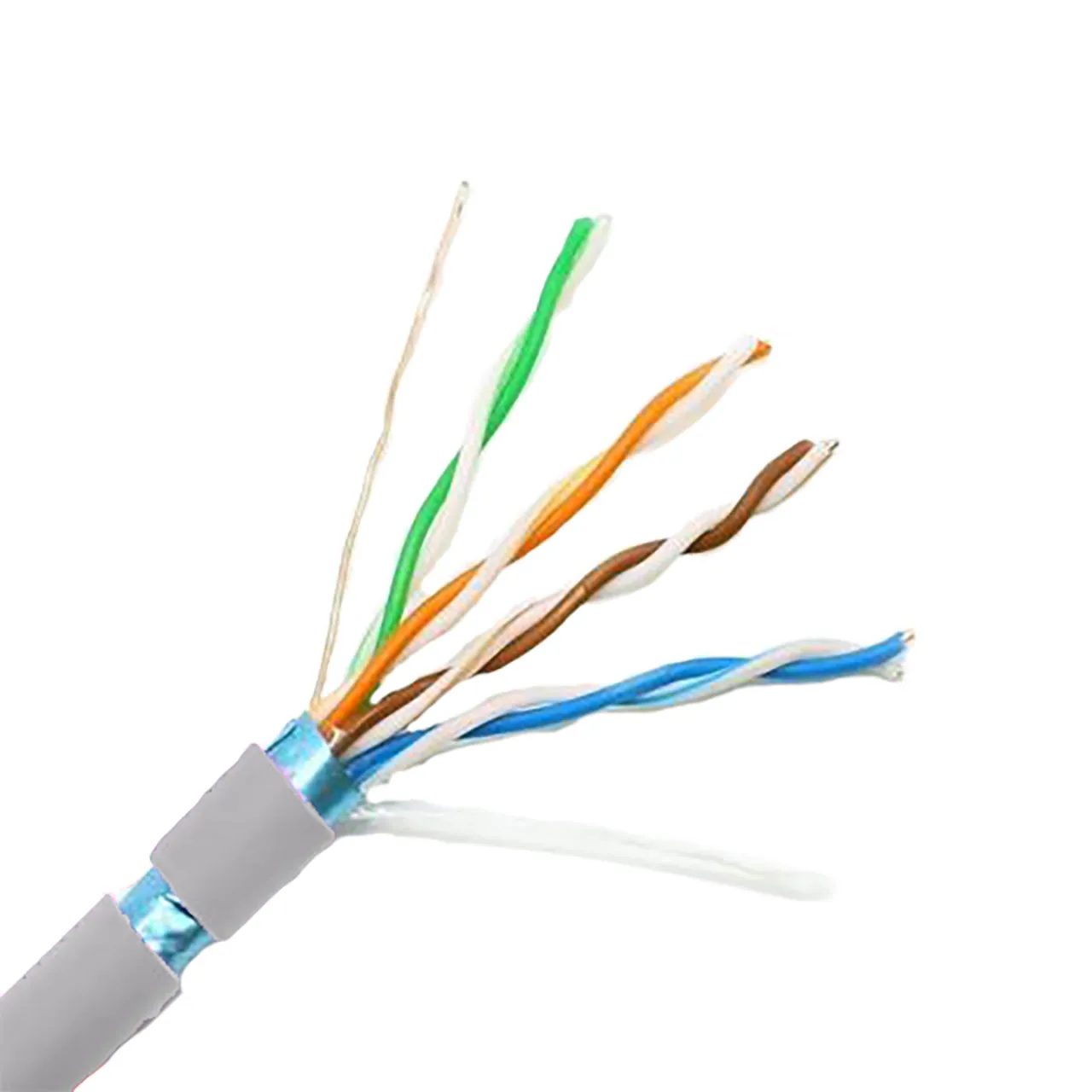

CAT5E Solid Cable 26AWG F/UTP CMR 4-Pair 1000 Foot Pull Box
Features
- Mutual Capacitance: ≦ 5.4 nF/100m
- Conductor DC Resistance: ≦ 9.5/100m
- Insulation: HDPE
- Shield: Aluminum
- Jacket: PVC
- Conductors: Bare Copper (Solid)
- COUNTRY OF ORIGIN: CHINA
- HARMONIZED TARIFF CODES: 8544.42.9090
- ECCN: EAR99
- DATASHEET LINK: https://ioaudiotech.com/datasheet/IO-E4261S-5ECMR-1000B.pdf
- PHP LINK: https://ioaudiotech.com/solid-cat-5e-stp-cmr-cable/
- IMAGE LINK: http://ioaudiotech.com/image/IO-E426XS-5ECMR-1000B.jpg"http://ioaudiotech.com/image/IO-E426XS-5ECMR-1000B.jpg
Overview
Bulk Solid Cat 5e cable for commercial, residential, broadcast, and stage applications.
This twisted pair data cable with 4 pairs of solid 26 AWG conductors allows for longer maximum cable runs and increased rigidity. A 4-way separator maintains proper pair spacing while reducing crosstalk between twisted pairs. This cable also features an aluminum foil shield which protects against interference and crosstalk between cables as well as a dedicated copper clad aluminum drain wire to provide for proper shielded termination. Additionally, a blue PVC jackets protects the interior workings of the cable from the harsh environment and installation stress.
This solid Cat 5e wire provides a solid foundation for any commercial or home network. It is perfect for use for 100 BaseT4, 100 BaseTX, 1000BaseT(Gigabit Ethernet), 155 mbps ATM, 622 MBps ATM, HDBaseT, 100BaseVG ANYLAN, NTSC/PAL, Component/Composite Video, AES/EBU, Digital Video, and RS-422. Tested up to 250 MHz.
