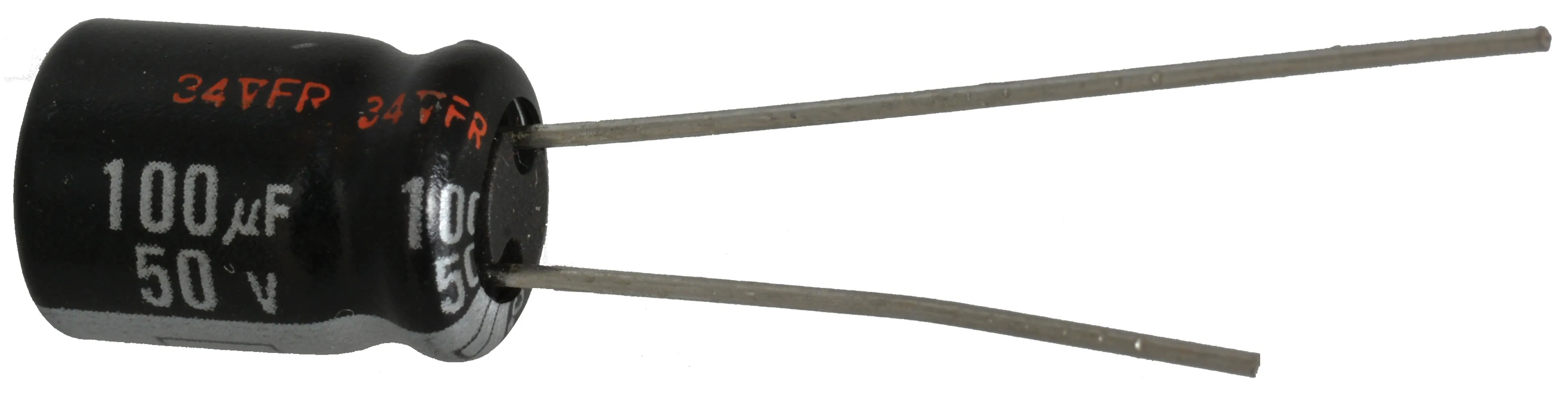

Aluminum Radial-Lead Polarized Electrolytic Capacitor
(± 20%) 105°C - HT Type General Purpose- Leakage current (20&°C) after 1 minute: 0.03CV or 4µA, whichever is greater
- Leakage current (20&°C) after 2 minutes: 0.01CV or 3µA, whichever is greater
- Value: 100µF
- Volts: 50
- Size: 8mm x 11.5mm x 3.5mm
Product Identification
Product Type:Electrolytic
Dimensions & Appearance
Body Diameter:13 mm
Mounting:Through Hole
Dimensions:13 x 21 x 5
Height:21 mm
Operating conditions
Maximum Operating Temperature:105°C
Features
Construction:Radial
Capacitance (uF):100
Tolerance:20%
Pitch:5 mm
Capacitance:100 uF
Voltage Rating:50 VDC
