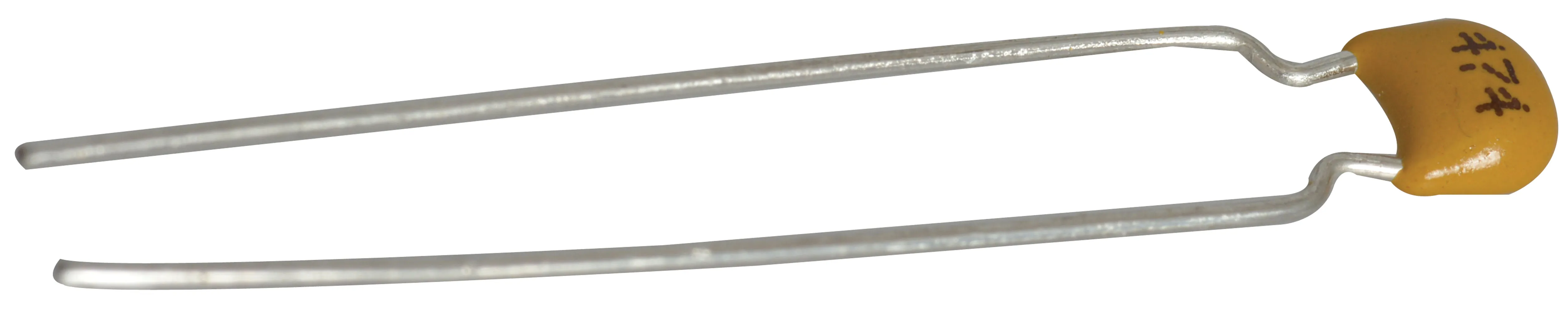

0.47µF 50V ±10% Monolithic Ceramic Radial Capacitor

Features

  • Capacitance: 0.47µF
  • Tolerance: ±10%
  • Voltage: 50V
  • Operating temp: -55°C to +125°C
  • Case Material: Epoxy Dipped
  • Size: 3.8 mm x 2.5 mm x 3.8 mm x 5.1 mm (W x T x H x L.S.)

    • Dimensions & Appearance

    Body Width:7.5 mm

    Features

    Dielectric:X7R
    Tolerance:10%
    Capacitance (pF):470000
    Capacitance (uF):0.47
    Lead Length:38 mm
    Lead Pitch:5 mm
    Capacitance:0.47 uF, 470000 pF
    Voltage Rating:50 VDC
    ,
