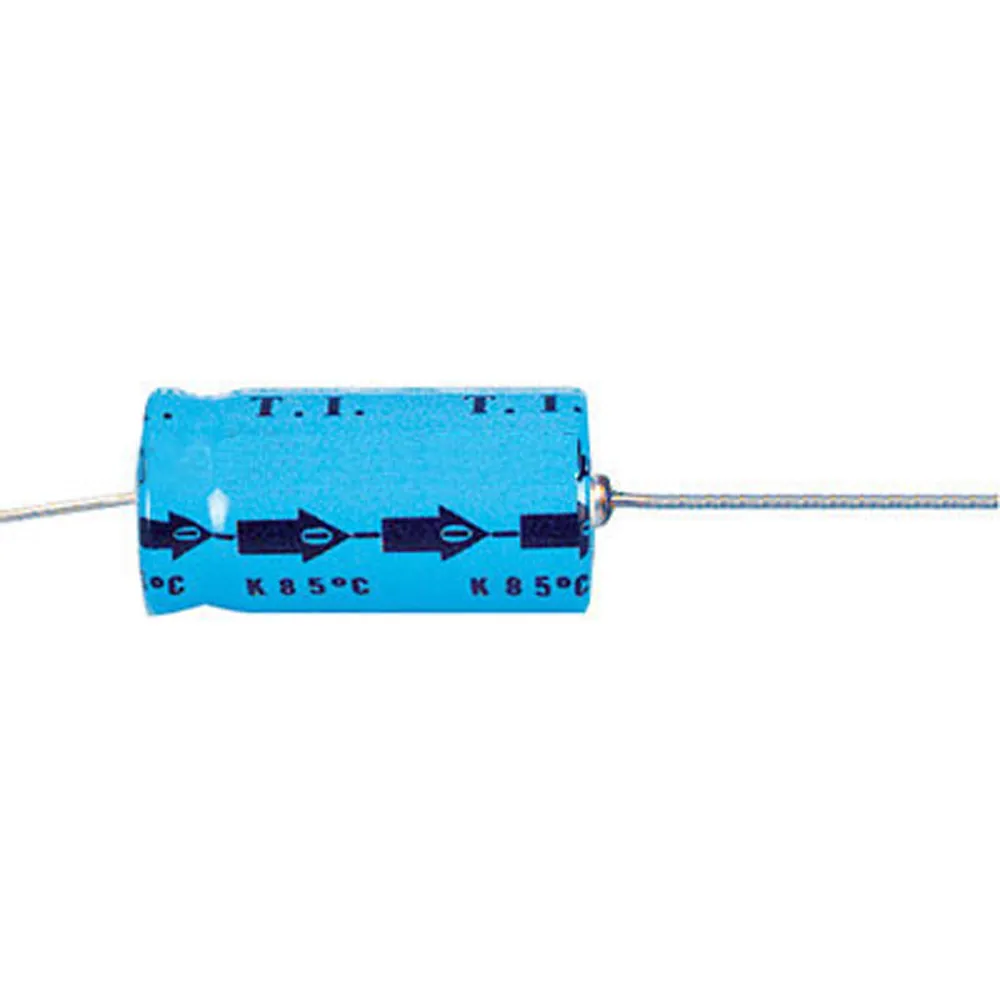

Capacitor Axial 220µF 50Volt 20% 85C

Specifications

  • Capacitance: 220uF
  • Tolerance: ±20%
  • Voltage: 50 VDC
  • Operating temperature range: -40°C to +85°C
  • Leakage current (after 2 minutes 200°C): 0.02CV or 2uA, whichever is greater
  • Diameter: 10 mm
  • Length: 21 mm

Dimensions & Appearance

Length:21 mm
Mounting:Through Hole
Body Diameter:10 mm

Operating conditions

Maximum Operating Temperature:85°C

Features

Construction:Axial
Capacitance (uF):220
Tolerance:20%
Capacitance:220 uF
Voltage Rating:50 VDC
,
