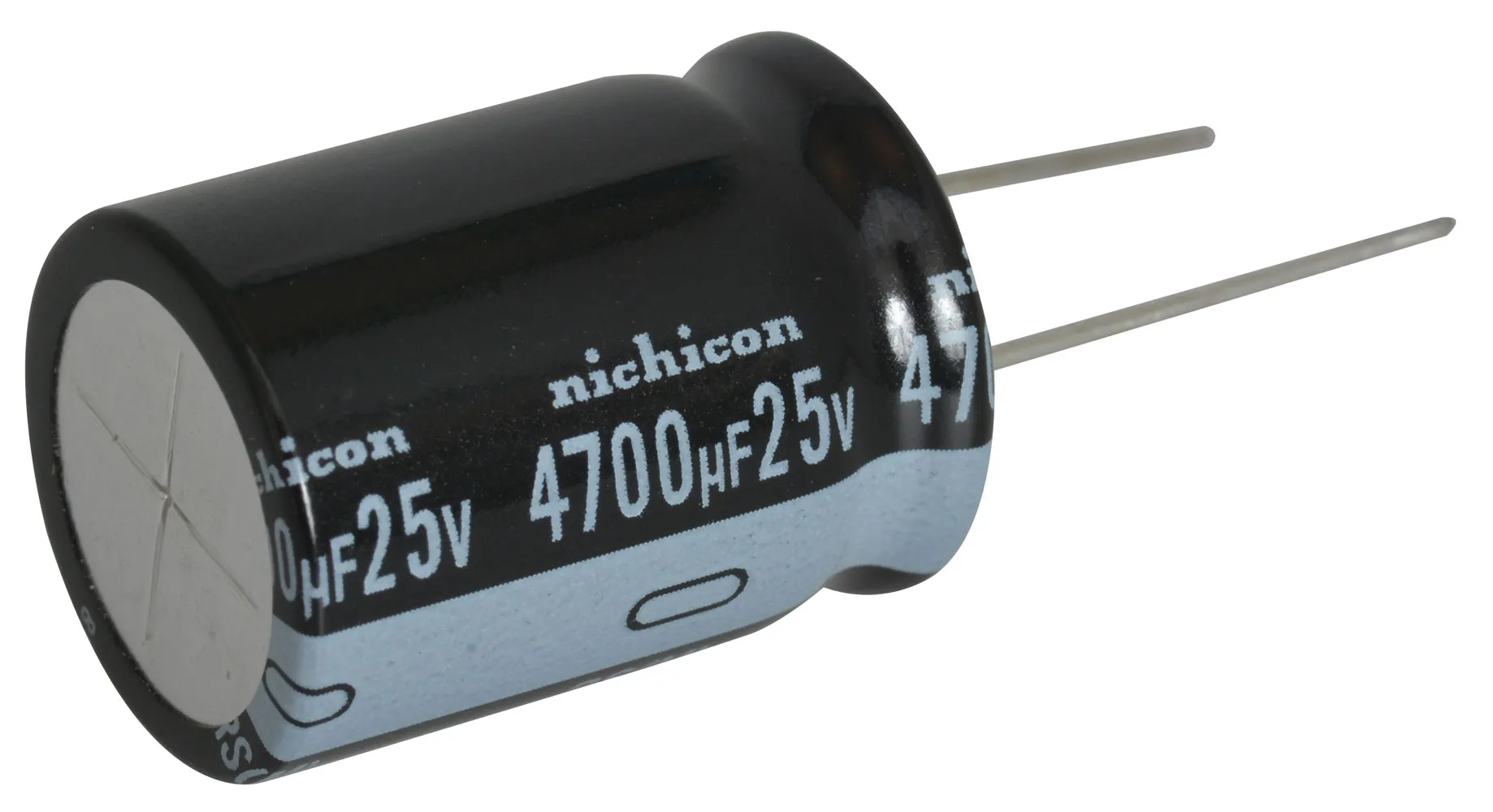

4700µF 25 Volt Radial Electrolytic Capacitor
Specifications
- Capacitance: 4700uF
- Tolerance: ±20%
- Temperature rating: 85°C
- Wide CV value range
- Load life 2000 hours at 85°C
- Safety vent construction design
- Size: 18 mm diameter x 26 mm tall
- Lead spacing: 7 mm
Product Identification
Product Type:Electrolytic
Dimensions & Appearance
Body Diameter:18 mm
Mounting:Through Hole
Dimensions:18 x 26 x 7
Height:26 mm
Operating conditions
Maximum Operating Temperature:85°C
Features
Leakage Current:0.01cv or 3uA
Construction:Radial
Tolerance:20%
Capacitance (uF):4700
Pitch:7 mm
Voltage Rating:25 VDC
Capacitance:4700 uF
