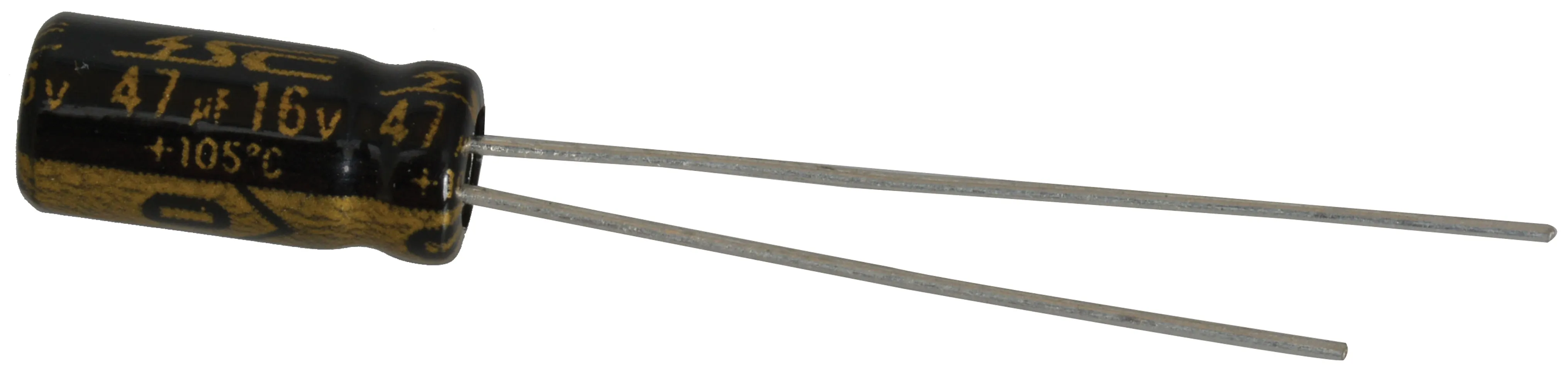

Capacitor 47µF 16 Volt 20% 5x11mm Radial 2mm 79mA 1000 Hour

Specifications

  • Operating temperature range: -55°C to +105°C
  • Small case size

    • Product Identification

    Product Type:Electrolytic

    Dimensions & Appearance

    Mounting:Through Hole
    Dimensions:5 x 11 x 2
    Height:11 mm
    Body Diameter:5 mm

    Operating conditions

    Maximum Operating Temperature:105°C
    Minimum Operating Temperature:-55°C

    Features

    Lead Diameter:0.5 mm
    Construction:Radial
    Ripple Current:79mA
    Lifetime:1000hr
    Capacitance (uF):47
    Leakage Current:4uA
    Tolerance:20%
    Capacitance (pF):47000000
    Pitch:2 mm
    Voltage Rating:16 VDC
    Capacitance:47 uF
    ,
