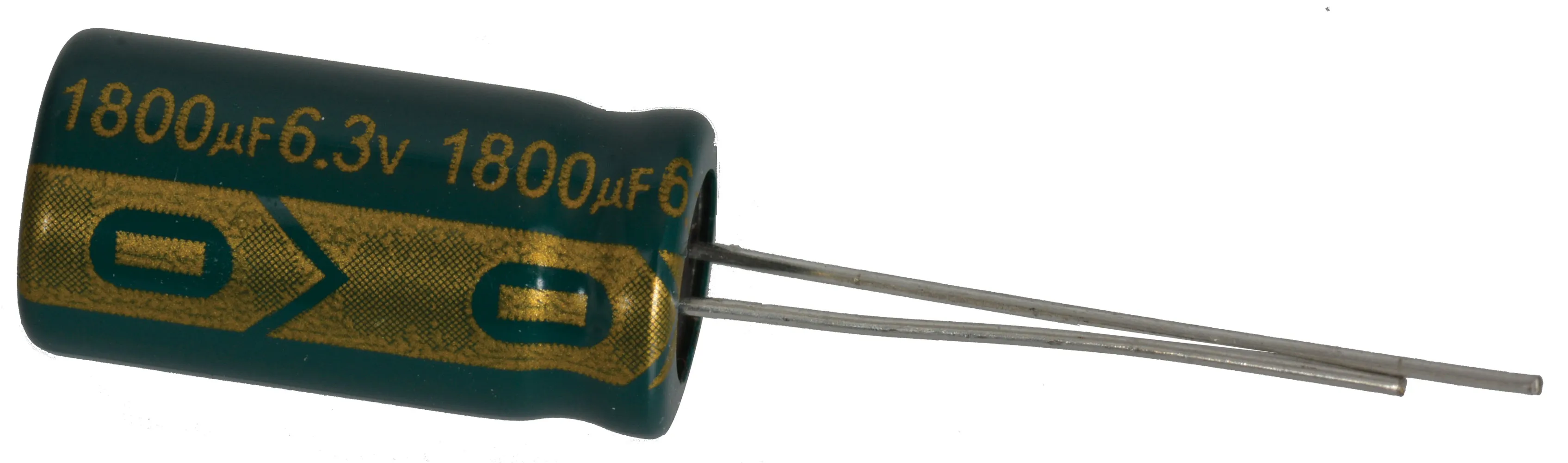

Capacitor 1800µF 6.3 Volt ±20% 10x20mm Radial 5mm 1450ma 8000 Hours

Specifications

  • Leakage current (20°C): After 1 minute 0.03CV or 4uA, whichever is greaterAfter 2 minutes 0.01CV or 3uA, whichever is greater

    • Product Identification

    Product Type:Electrolytic

    Dimensions & Appearance

    Body Diameter:10 mm
    Mounting:Through Hole
    Dimensions:10 x 20 x 5
    Height:20 mm

    Operating conditions

    Maximum Operating Temperature:105°C
    Minimum Operating Temperature:-40°C

    Features

    Construction:Radial
    Lead Diameter:0.6 mm
    Ripple Current:1450mA
    Leakage Current:3uA
    Lifetime:8000hr
    Tolerance:20%
    Voltage Rating:6.3 VDC
    Capacitance (uF):1800
    Pitch:5 mm
    Capacitance:1800 uF
    ,
