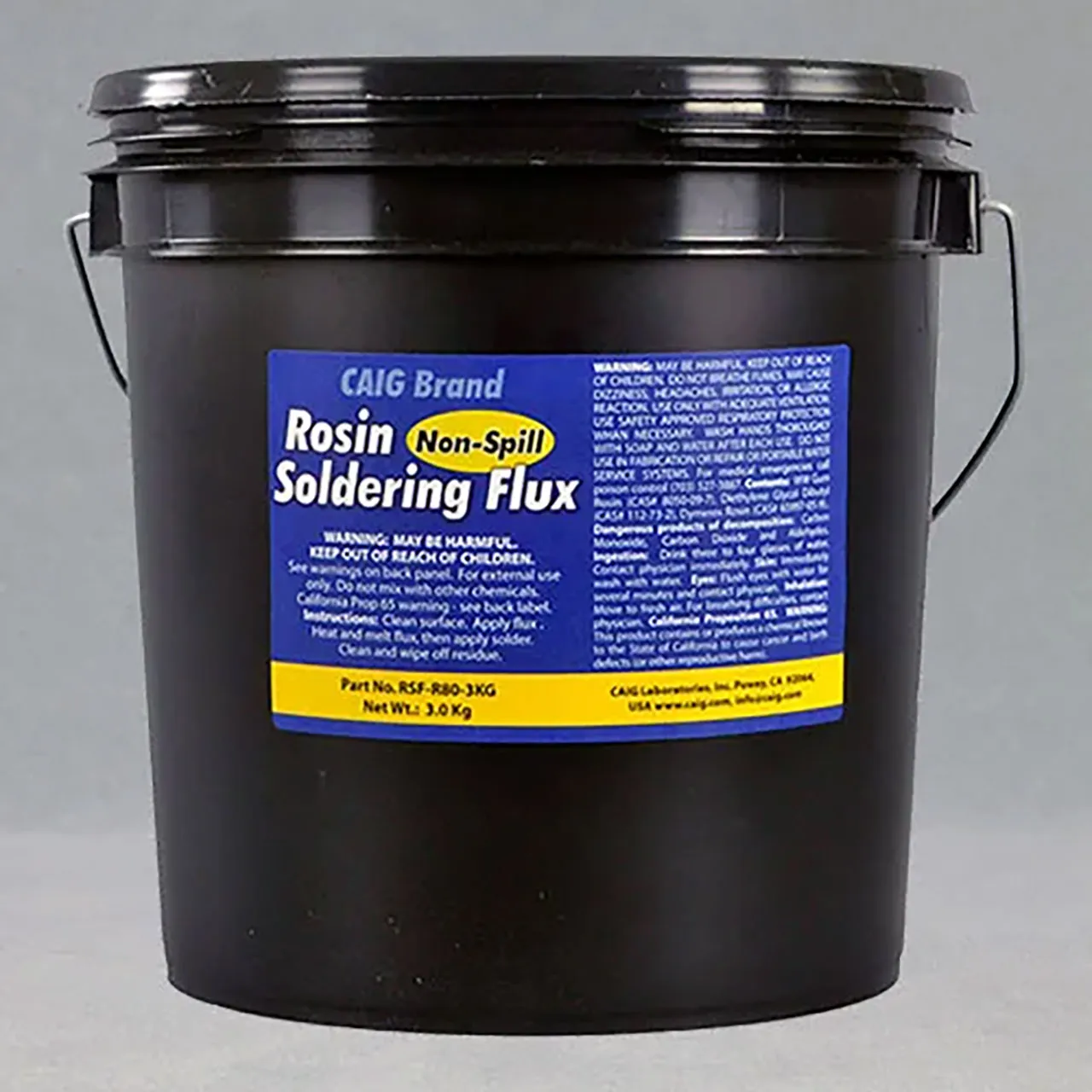

CAIG Brand Rosin Soldering Flux 3 Kg Pail

Features

• 3 KG pail
• Applicator: Pail
• Formulation: WW Gum Rosin, Diethyene Glycol Dibutyl, Dymerex Rosin
• RSF Rosin Flux is a mildly activated rosin flux that is considerably more active than water-white rosin
• Activity closely approaches that of fully activated rosins
• Conforms to all of the requirements of Type RMA
• Rosin Core, Mildly Activated of Federal Specification QQ-S-571
• The RSF paste flux meets DOD-STD-2000 & also the IPC-J-004 standard for type ROL0, the lowest residue corrosivity category
• Thermal stability enabling excellent wetting and reduced carbonization at soldering temperatures

Overview

The RMA paste flux meets DOD-STD-2000 & also the IPC-J-004 standard for type ROL0, the lowest residue corrosivity category.

Use: Electrical soldering.

Notes: General purpose flux for soldering electrical connections. Use CAIG NO-CLEAN Soldering Flux, TYPE RSF-R39 for precision soldering.

BRIEF SPECS

• Softening Point: 160 F (71 C)
• Rosin Grade: WW per Fed. Spec. LLL-R-626
• Acid No. (of Rosin): 150
• Water Extract Resisitivity: 110,000 ohm-cm
• Effect on Copper Mirror: None
• Fungus Resistance Per MIL-E-5272
• Nonflammable, noncorrosive.
