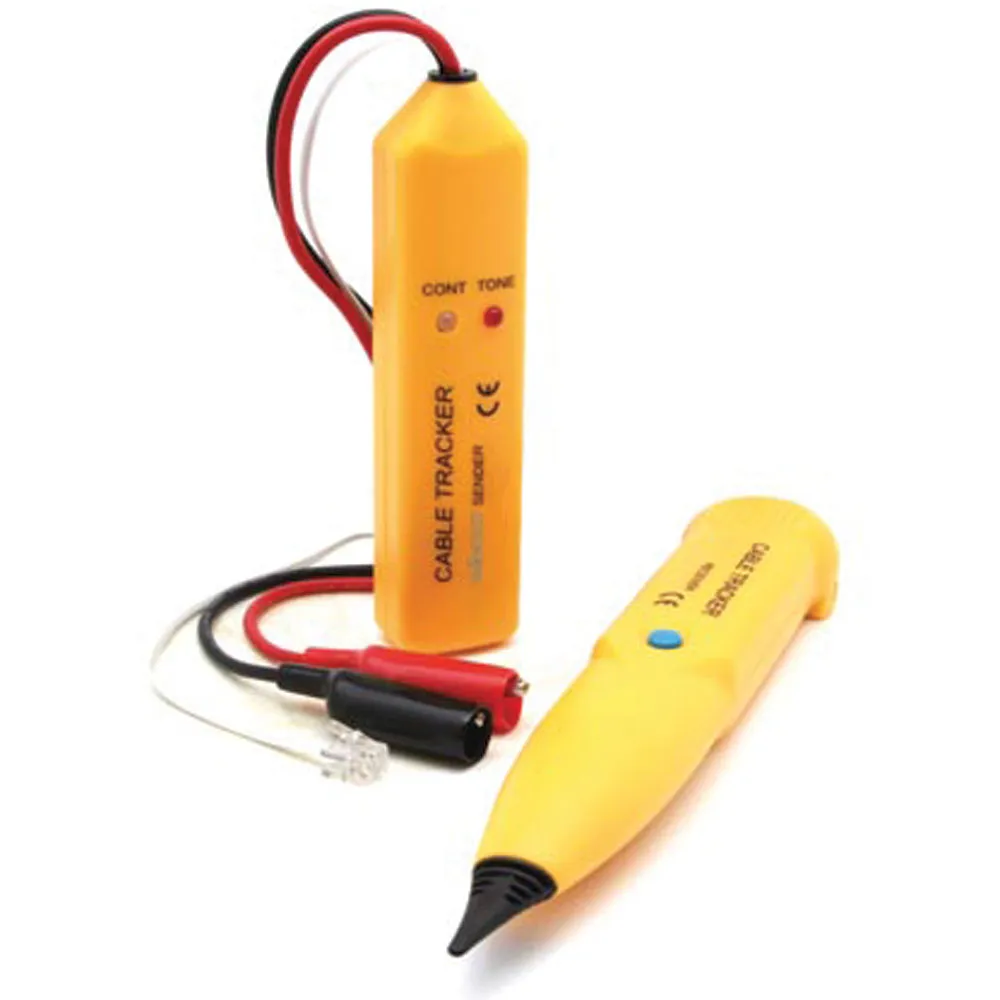

Cable Tracker with Tone Generator

Features:

• Cable tracker: with continuity mode and tone generator
• Tone generator: use the tone generator and the probe to determine where a cable is going and whether or not (and where) the cable is interrupted
• Tone generator output (square waveform): single (1500 Hz) or dual (1300-1700 Hz)
• Includes: Soft carrying bag

Specifications:

• Dimensions: 9.4" x 1.7" x 1.0" (238 x 43 x 26mm) (Receiver); 5.7" x 1.4" x 1.0" (145 x 35 x 25 mm) (Transmitter)
• Total weight: ±5.64 oz.
• Tone Generator:
  • Working voltage: 9VDC battery (not included)
  • Output wave form: Square wave signals ±3.5 Vpp
  • Single audio frequency: ±1500 Hz
  • Dual audio frequency: ±1300 Hz - 1700 Hz
• Probe:
  • Working voltage: 9 VDC battery (not included)
  • Max. reception sensitivity: >30 mV
  • Maximum output volume: ±100 dB
