Cable Tie for AT2000, 18lb Tensile Strength, PA66V0, White, 50/bandolier, 500 per Package

Features

• Cable ties can be easily recycled to meet environmental management objectives. HellermannTyton 18 lb. cable ties are available in natural, black, and other colors (upon request) to support color coded wire management schemes. Bandoliers of 50 or reels of 5000 cable ties are available, enabling maximum user efficiency in hand-held, bench-mount, or automated processes.
• Product Type: Cable Ties for Automatic Systems

Technical Specifications

• Material: Polyamide 6.6 V0 (PA66V0)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 0.79"
• Bundle Diameter Max. (Metric): 20.0 mm
• Bundle Diameter Min. (Imperial): 0.03"
• Bundle Diameter Min. (Metric): 0.7 mm
• Focused Markets and Industries: Aerospace Industry; Automotive Industry; Chemical Industry; Defense Industry; Electronics Industry; Food Industry; Rail Transportation Sector; Shipbuilding; Solar Energy Sector; Telecommunication; Wind Energy Sector
• Length L (Imperial): 4.0"
• Length L (Metric): 4.8 mm
• Tensile Strength Min. (Imperial): 18 lbs
• Tensile Strength Min. (kgf): 8.16 kgf
• Tensile Strength Min. (Metric): 80 N
• Thickness T (Imperial): 0.043"
• Thickness T (Metric): 1.1 mm
• Variant: bandolier
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.1"
• Width W (Metric): 2.5 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-0
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64962 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306195412

Overview

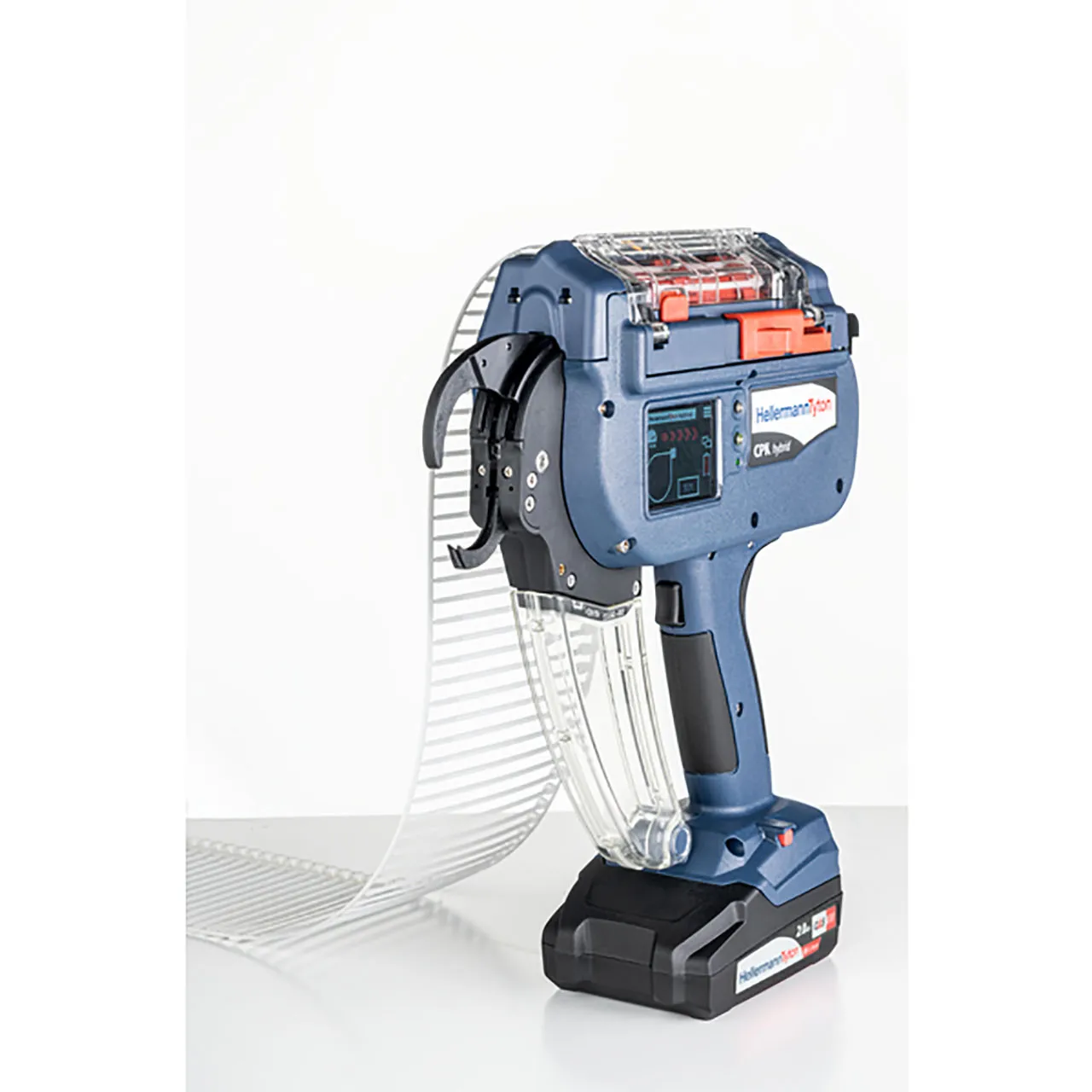

HellermannTyton's AT2000 is designed to use 18 lb. cable ties and will fasten bundles up to 3/4" diameter. Engineered specifically for automatic cable tie assembly, these ties are offered in varying material compositions and colors, so manufacturers can select the ties that meet the application requirements and industry best practices.
