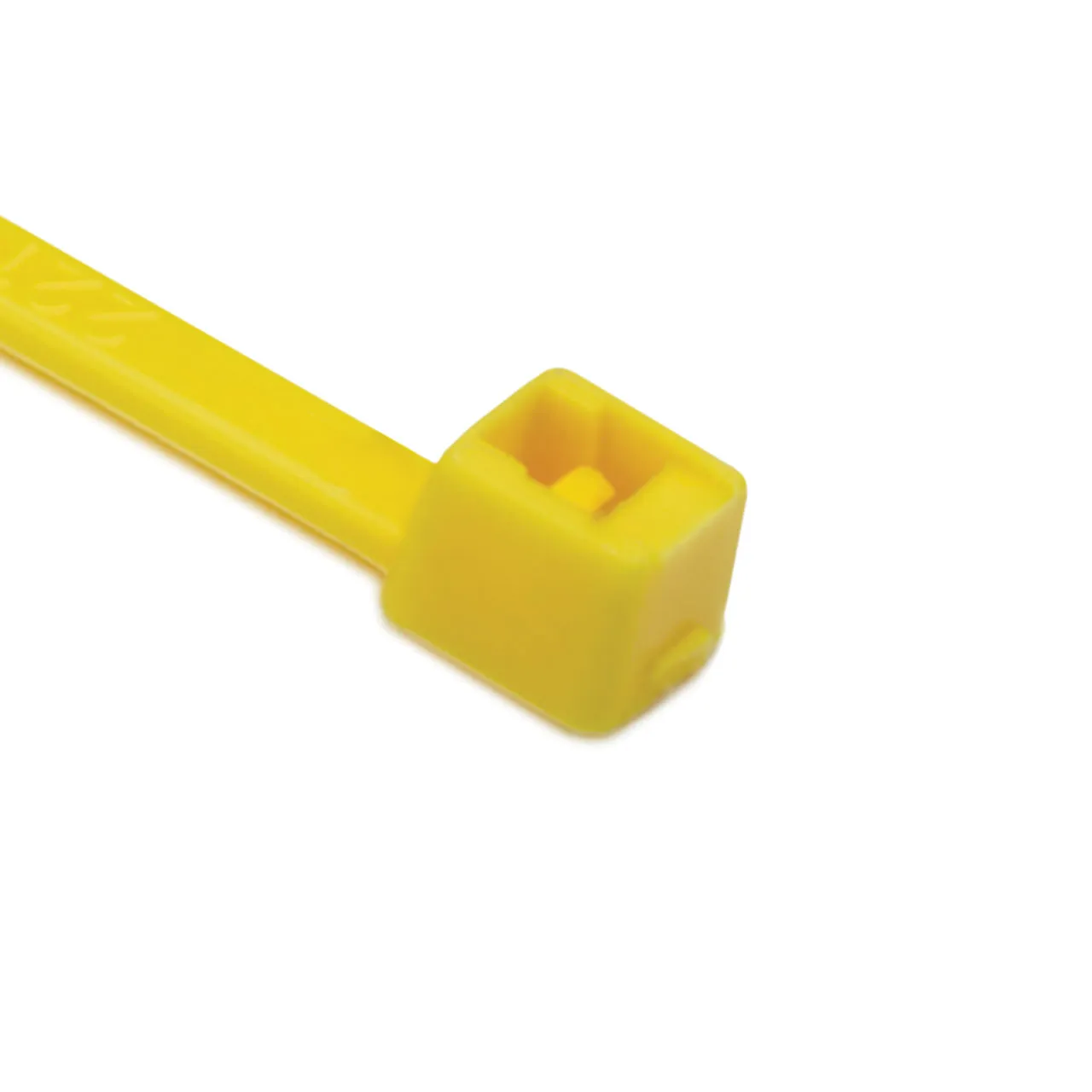

Cable Tie, 5.5" Long, UL Rated, 18lb Tensile Strength, PA66, Yellow, 1000 per Package

Features

• Inside serrations allow for strong grip on cables and wire bundles Head design provides high tensile strength with very low insertion force
• Product Type: Standard Cable Ties

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Yellow (YE)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 1.38"
• Bundle Diameter Max. (Metric): 35.0 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.5 mm
• Cable Tie Closure: plastic pawl
• Cable Tie Head Length (Imperial): 0.19"
• Cable Tie Head Length (Metric): 4.8 mm
• Cable Tie Head Width (Imperial): 0.18"
• Cable Tie Head Width (Metric): 4.5 mm
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Electronics Industry; Aerospace Industry; Shipbuilding; Defense Industry
• Height H (Imperial): 0.14"
• Height H (Metric): 3.5 mm
• Length L (Imperial): 5.5"
• Length L (Metric): 140.0 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-70083
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 18 lbs
• Tensile Strength Min. (kgf): 8.16 kgf
• Tensile Strength Min. (Metric): 80 N
• Thickness T (Metric): 1.2 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Width W (Imperial): 0.10"
• Width W (Metric): 2.5 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Halogen Free: Yes
• Plenum Rating: AH-2
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]; E64139 [C_UL_US_63FN_Type21]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306065043

Overview

HellermannTyton standard cable ties feature inside serrations providing a positive hold onto wire and cable bundles. The head design guarantees high tensile strength, as well as a low insertion force. The bent tail design allows quick and simple installations by hand. For high volume applications, tensioning tools are availableto ensure consistent and safe installation.
