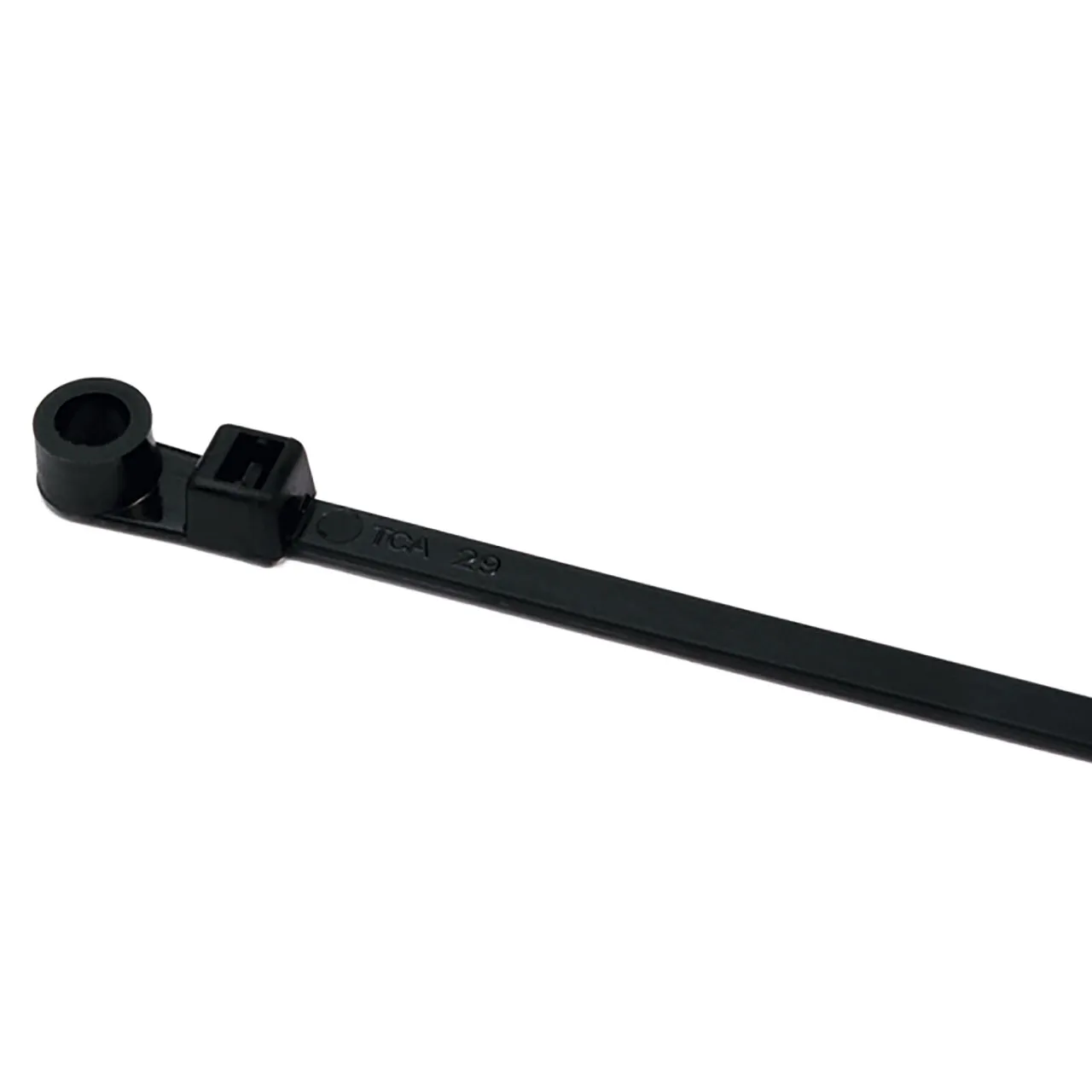

Cable Tie 1-Piece with Screw Mount, 6.3" Long, #8 Screw, 1.3" Max Bundle Dia, 30lb, PA66, Black, 1000 per Package

Features

• Screw mount style creates low insertion and high extraction force. Choose from several tensile strengths and lengths to accommodate a range of applications.
• Product Type: Screw Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 1.26"
• Bundle Diameter Max. (Metric): 32.0 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.5 mm
• Cable Tie Closure: plastic pawl
• Fixation Method: Screw Mount
• Focused Markets and Industries: Automotive Industry
• Height H (Imperial): .17"
• Height H (Metric): 4.20 mm
• Length L (Imperial): 6.3"
• Length L (Metric): 160.0 mm
• Mechanical Strength (imperial): 20.0 lbs
• Mechanical Strength (metric): 89.0 N
• Mounting Hole Diameter D (Imperial): 0.17"
• Mounting Hole Diameter D (Metric): 4.3 mm
• Mounting Hole Diameter D Max. (Metric): 4.3 mm
• Mounting Hole Diameter D Min. (Metric): 4.3 mm
• Mounting Hole Shape: Round
• Mounting Screw Type: #8 (M4) Screw
• Recommended Application Tool: 110-03500; 110-05005; 110-70083; 110-70084
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 30 lbs
• Tensile Strength Min. (kgf): 13.77 kgf
• Tensile Strength Min. (Metric): 135 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.2 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.14"
• Width W (Metric): 3.5 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Plenum Rating: AH-2
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]; E64139 [C_UL_US_63FN_Type21]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306075202

Overview

One-piece Screw Mount Cable Ties fasten with a screw or bolt to provide secure routing of cable bundles. Multiple configurations are available to cover a range of bundle sizes and tensile strengths.
