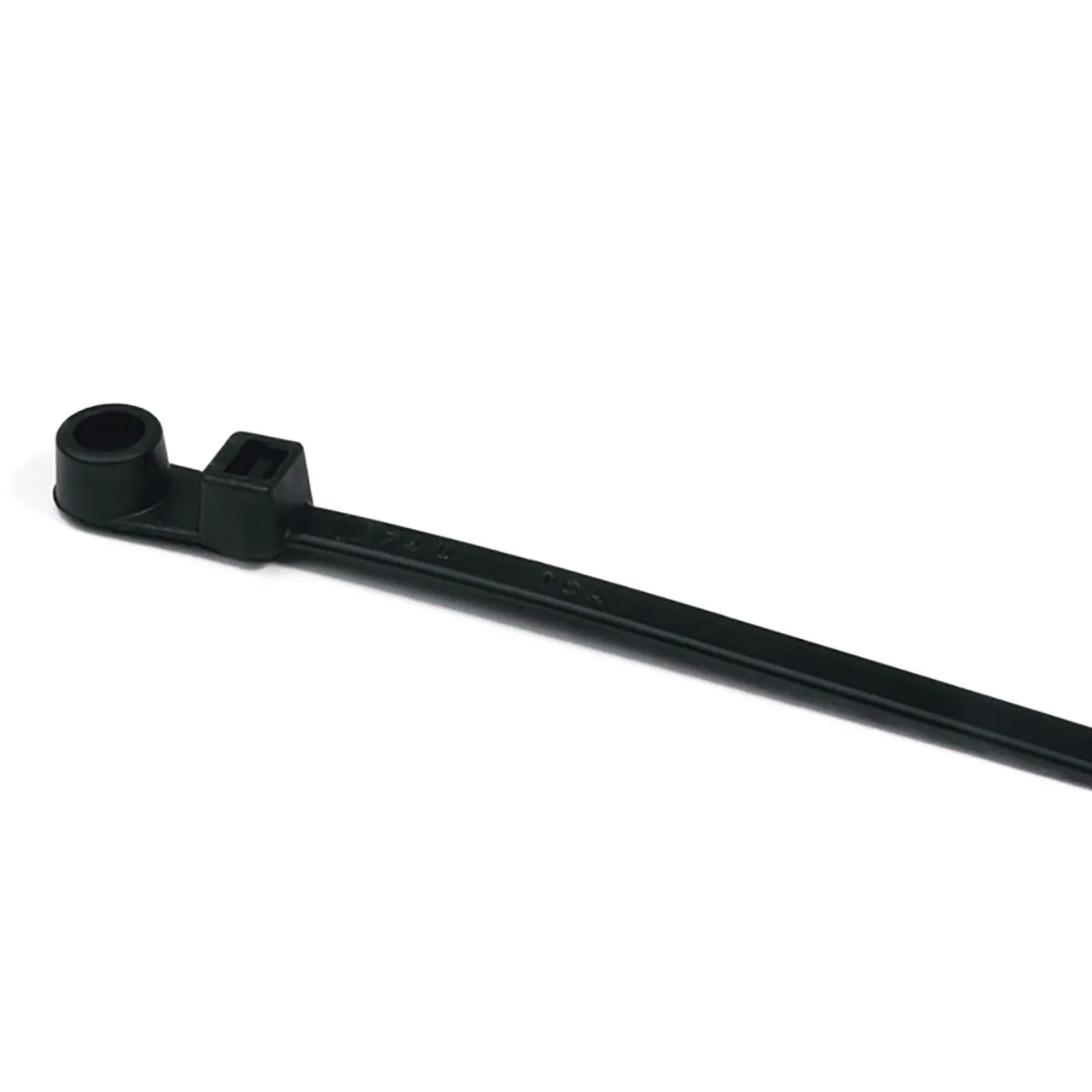

Cable Tie 1-Piece with Screw Mount, 15.6" L, 0.25" Hole, 4.02" Max Bundle Dia, 120lb, PA66HS, Black, 500 per Package

Features

• Screw-mount style delivers low insertion and high extraction force. Fasten with a screw or bolt to provide secure routing of cable bundles. Choose from several tensile strengths and lengths to accommodate a range of applications.
• Product Type: Screw Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +257°F (-40°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 4.02"
• Bundle Diameter Max. (Metric): 102.0 mm
• Bundle Diameter Min. (Imperial): 0.2"
• Bundle Diameter Min. (Metric): 5.0 mm
• Cable Tie Closure: plastic pawl
• Cable Tie Head Height (metric): 7.9 mm
• Cable Tie Head Length (Imperial): 1.1"
• Cable Tie Head Length (Metric): 28.4 mm
• Cable Tie Head Width (Imperial): 0.5"
• Cable Tie Head Width (Metric): 13.4 mm
• Fixation Method: Screw Mount
• Focused Markets and Industries: Automotive Industry
• Height H (Imperial): 0.31"
• Height H (Metric): 7.9 mm
• Length L (Imperial): 15.6"
• Length L (Metric): 395.0 mm
• Mechanical Strength (imperial): 75.0 lbs
• Mechanical Strength (metric): 333.6 N
• Mounting Hole Diameter D (Imperial): 0.26"
• Mounting Hole Diameter D (Metric): 6.5 mm
• Mounting Hole Diameter D Max. (Metric): 6.5 mm
• Mounting Hole Diameter D Min. (Metric): 6.5 mm
• Mounting Hole Shape: Round
• Mounting Screw Type: 1/4" (M6) Screw
• Recommended Application Tool: 110-05005; 110-06000; 110-80000; 110-80001; 110-80003; 110-80004
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 120 lbs
• Tensile Strength Min. (kgf): 54.56 kgf
• Tensile Strength Min. (Metric): 535 N
• Thickness T (Imperial): 0.07"
• Thickness T (Metric): 1.8 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.30"
• Width W (Metric): 7.6 mm
• Width W2 (Imperial): .053"
• Width W2 (Metric): 13.4 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Plenum Rating: AH-2
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]; E64139 [C_UL_US_63FN_Type21,21S]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306058939

Overview

One-piece screw mount cable ties fasten with a screw or bolt to provide secure routing of cable bundles. Multiple configurations are available to cover a range of bundle sizes and tensile strengths.
