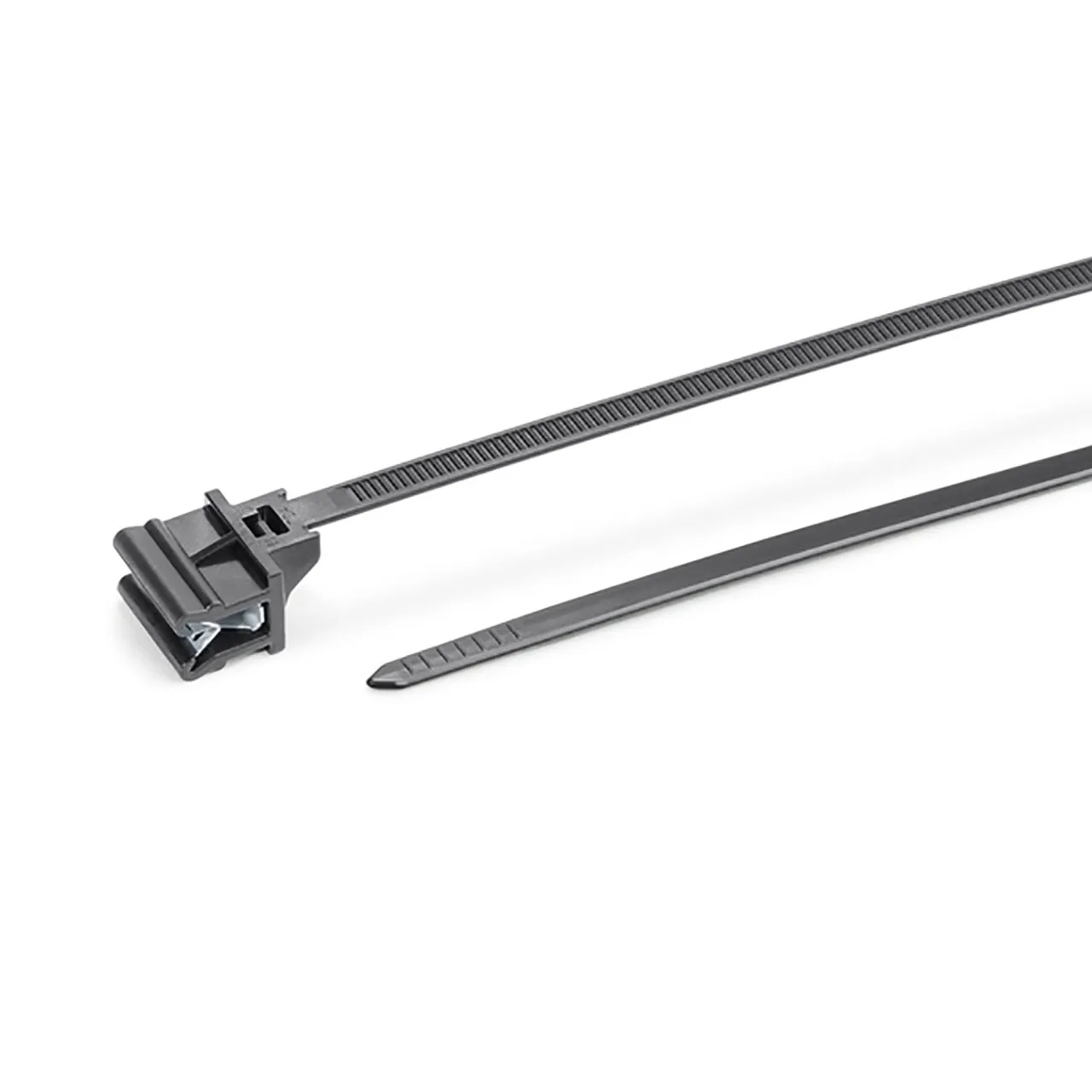

Cable Tie 1-Piece with Edge Clip, 8" Long, EC13, Panel Thickness 0.04 - 0.12", 50 lbs, PA66HS, Black, 500/bg

Features

• Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole. Edge Clip provides low insertion force and high extraction force ideal for assembly environments. Cable tie is outside serrated to reduce bundle chafing.
• Product Type: Edge Clip Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Anti rotation (Yes / No): YES
• Bundle Diameter Max. (Imperial): 1.38"
• Bundle Diameter Max. (Metric): 35.0 mm
• Bundle Diameter Min. (Imperial): 0.04"
• Bundle Diameter Min. (Metric): 1.0 mm
• Cable Tie Closure: plastic pawl
• Fixation Method: Edge Clip
• Focused Markets and Industries: Automotive Industry; Electronics Industry; Defense Industry
• Height H (Imperial): 0.06"
• Height H (Metric): 1.35 mm
• Height H2 (Imperial): 0.591"
• Length L (Imperial): 6.0"
• Length L (Metric): 160.0 mm
• Length L2 (Imperial): 0.6"
• Length L2 (Metric): 15.0 mm
• Panel Thickness (Imperial): 0.04 - 0.12"
• Panel Thickness (Metric): 1.0 - 3.0 mm
• Panel Thickness Max. (Imperial): 0.12"
• Panel Thickness Max. (Metric): 3.0 mm
• Panel Thickness Min. (Imperial): 0.04"
• Panel Thickness Min. (Metric): 1.0 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-06000; 110-07000; 110-07101; 110-70083; 110-70084; 110-80000; 110-80001
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 40 lbs
• Tensile Strength Min. (kgf): 18.35 kgf
• Tensile Strength Min. (Metric): 180 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.35 mm
• Toothing (Serration): Outside Serrated
• Variant: Outside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.00548510107856
• Width W (Imperial): 0.18"
• Width W (Metric): 4.6 mm
• Width W2 (Imperial): 0.43"
• Width W2 (Metric): 11.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306274049

Overview

The cable tie and edge clip assembly is ideal for use where holes are not acceptable or where adhesives will fail due to temperature problems. Edge clips are widely used for fixing and bundling cables and wires within automotive, trucking, heavy equipment, solar panel, wind power, and white goods equipment manufacturing.
