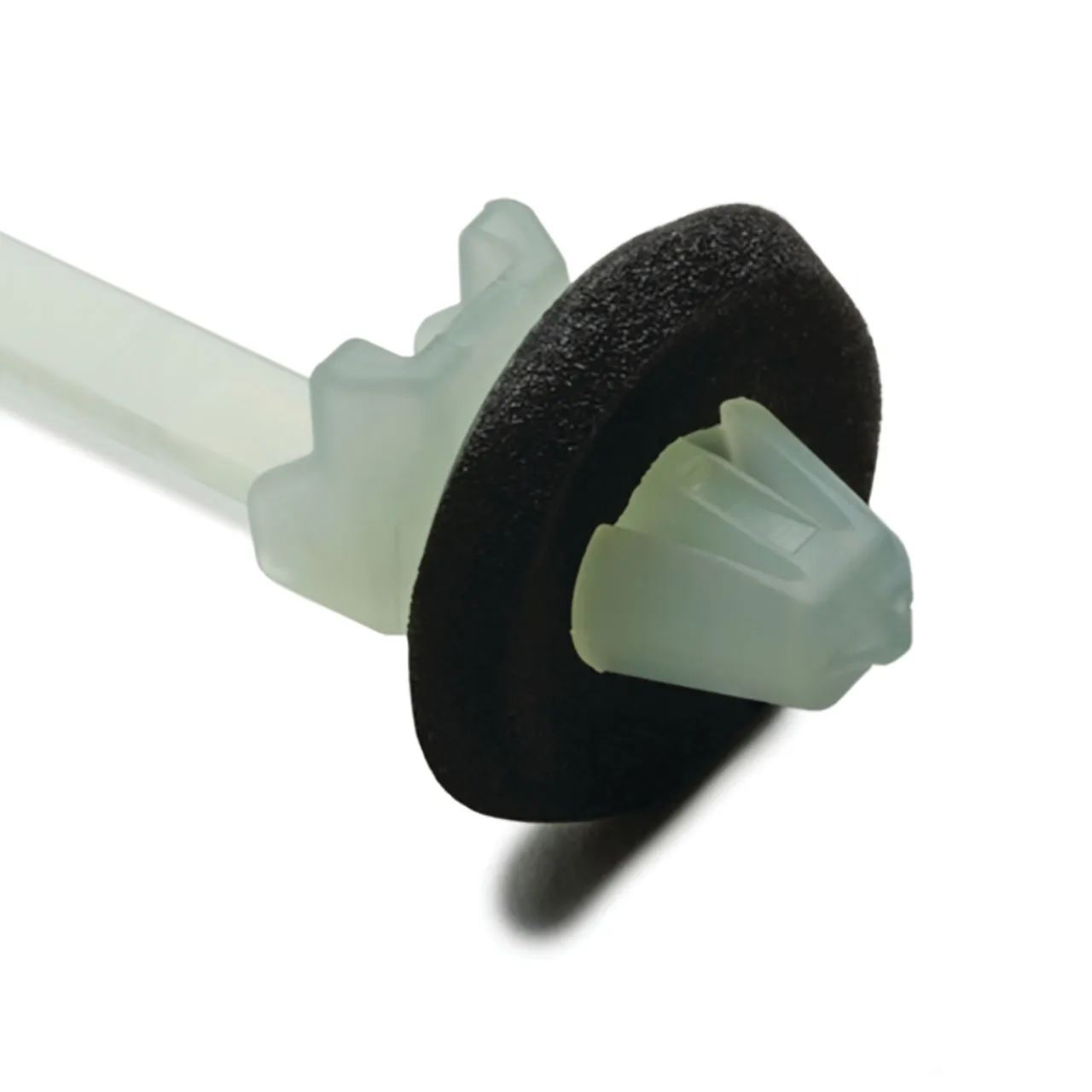

Cable Tie 1-Piece with Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 4000/carton

Features

• Design helps silence and stabilize the tie in high-vibration applications. Arrowhead-style mount provides low insertion and high extraction force. Rubber seal restricts water and debris from passing through mounting hole.
• Product Type: Arrowhead Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +257°F (-40°C to +125°C)
• Color: Natural (NA)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 1.38"
• Bundle Diameter Max. (Metric): 35.0 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.5 mm
• Cable Tie Closure: plastic pawl
• Disc Diameter (Imperial): 0.63"
• Disc Diameter (Metric): 16.0 mm
• Fixation Method: Arrowhead
• Focused Markets and Industries: Automotive Industry
• Height H (Imperial): 0.63"
• Height H (Metric): 16.0 mm
• Length L (Imperial): 6.5"
• Length L (Metric): 163.0 mm
• Mounting Hole Diameter D (Imperial): 0.25 - 0.27"
• Mounting Hole Diameter D (Metric): 6.35 - 7.0 mm
• Mounting Hole Diameter D Max. (Imperial): 0.27"
• Mounting Hole Diameter D Max. (Metric): 7.0 mm
• Mounting Hole Diameter D Min. (Imperial): 0.25"
• Mounting Hole Diameter D Min. (Metric): 6.35 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.03 - 0.07"
• Panel Thickness (Metric): 0.7 - 1.8 mm
• Panel Thickness Max. (Imperial): 0.07"
• Panel Thickness Max. (Metric): 1.8 mm
• Panel Thickness Min. (Imperial): 0.03"
• Panel Thickness Min. (Metric): 0.7 mm
• Recommended Application Tool: 110-05005; 110-70083; 110-70084; 110-80000; 110-80001
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 40.5 lbs
• Tensile Strength Min. (kgf): 18.35 kgf
• Tensile Strength Min. (Metric): 180 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.3 mm
• Toothing (Serration): Outside Serrated
• Variant: Outside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.18"
• Width W (Metric): 4.6 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306379928

Overview

The arrowhead design of these ties offers a positive, low insertion force and a high extraction force. These ties feature a foam rubber seal which provides additional protection against moisture, dirt, and other impurities. One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution. HellermannTyton’s one-piece mounting ties offer the ideal combination of high specification materials and superior design to suit the mounting and bundling needs of complex applications.
