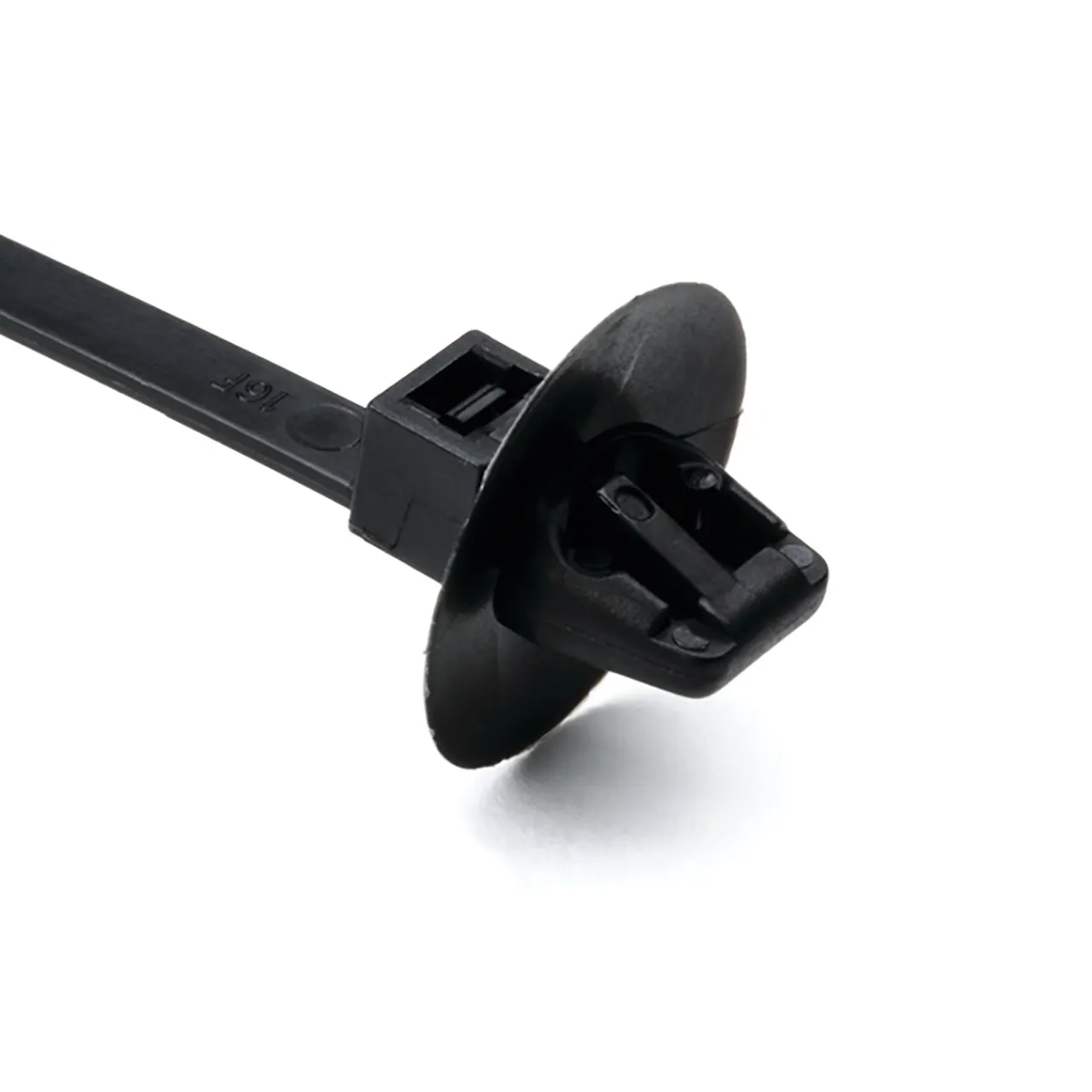

Cable Tie 1-Piece with Arrowhead Mount with Disc for Oval Holes, 6.3"L, 0.24 - 0.48" Hole, PA66HS, Black, 500 per Package

Features

• An all-in-one bundling and fixing solution reduces costs. Disc provides secure insertion and minimizes access of dust, dirt and water.
• Product Type: Arrowhead Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Anti rotation (Yes / No): YES
• Bundle Diameter Max. (Imperial): 1.18"
• Bundle Diameter Max. (Metric): 30.0 mm
• Bundle Diameter Min. (Imperial): 0.2"
• Bundle Diameter Min. (Metric): 5.0 mm
• Cable Tie Closure: plastic pawl
• Disc Diameter (Imperial): 0.87"
• Disc Diameter (Metric): 22.0 mm
• Fixation Method: Arrowhead for oval holes
• Focused Markets and Industries: Automotive Industry; Electronics Industry; Defense Industry
• Height H (Imperial): 0.36"
• Length L (Imperial): 6.3"
• Length L (Metric): 160.0 mm
• Mounting Hole Diameter D (Imperial): 0.24 x 0.48"
• Mounting Hole Diameter D (Metric): 6.2 x 12.2 mm
• Mounting Hole Diameter D Max. (Imperial): 0.48"
• Mounting Hole Diameter D Max. (Metric): 12.2 mm
• Mounting Hole Diameter D Min. (Imperial): 0.24"
• Mounting Hole Diameter D Min. (Metric): 6.2 mm
• Mounting Hole Shape: Oval
• Panel Thickness (Imperial): 0.04 - 0.08"
• Panel Thickness (Metric): 1.0 - 1.9 mm
• Panel Thickness Max. (Imperial): 0.08"
• Panel Thickness Max. (Metric): 1.9 mm
• Panel Thickness Min. (Imperial): 0.04"
• Panel Thickness Min. (Metric): 1.0 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-06000; 110-07000; 110-07101; 110-70083; 110-70084; 110-80000; 110-80001; 110-80003
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.3 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.00385588496238
• Width W (Imperial): 0.2"
• Width W (Metric): 5.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306330066

Overview

The Domed Push Mount Tie provides a tight, rattle-free installation and acts as a seal to kieep out dust and debris. One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution.
